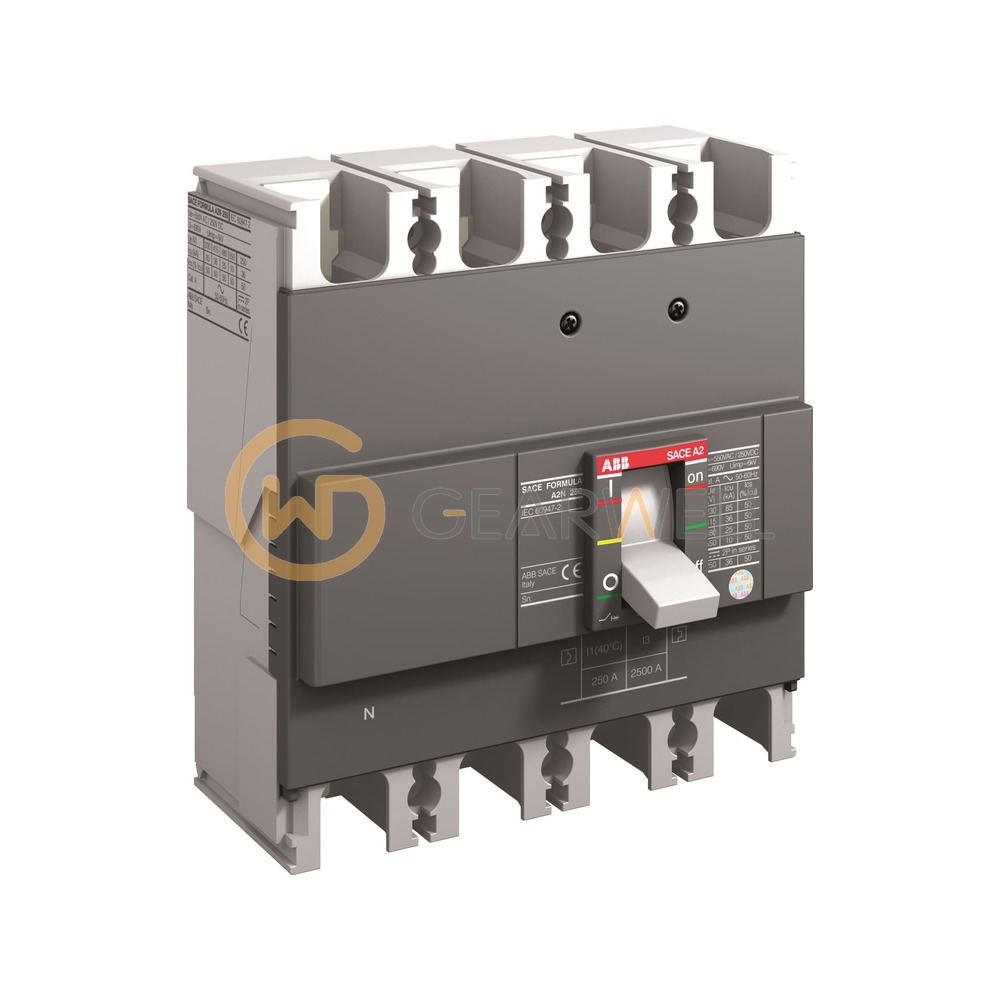

ABB 1SDA066798R1 A2N 250 SACE Formula 4P Moulded Case Circuit Breaker
- Brand
- ABB
- Model
- 1SDA066798R1
- GEARWELL SKU
- GWP-000011163
- Category
- Circuit Protection
Key specifications
- Type
- A2N 250 TMF 250-2500 4p F F
- Release
- TMF thermomagnetic
- Net weight
- 1.75 kg
- Icu at 415 V AC
- 36 kA
- Number of poles
- 4P
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SDA066798R1 is a SACE Formula A2 moulded-case circuit-breaker, 250 A frame, 4 poles, fixed version with front terminals and a TMF thermomagnetic trip unit (In 250 A, I3 2500 A), breaking capacity version N with Icu 36 kA at 415 V. The trip unit holds 100% In at 50°C.
Technical reference
| Product name | ABB 1SDA066798R1 A2N 250 SACE Formula 4P Moulded Case Circuit Breaker |
|---|---|
| Brand | ABB |
| Model | 1SDA066798R1 |
| Category | Circuit Protection |
| Type | A2N 250 TMF 250-2500 4p F F |
| Release | TMF thermomagnetic |
| Net weight | 1.75 kg |
| Icu at 415 V AC | 36 kA |
| Number of poles | 4P |
| Rated current In | 250 A |
| Version / terminals | Fixed / front |
| Dimensions (W x H x D) | 140 x 150 x 60 mm |
| Rated operational voltage | 550 V AC / 250 V DC |
