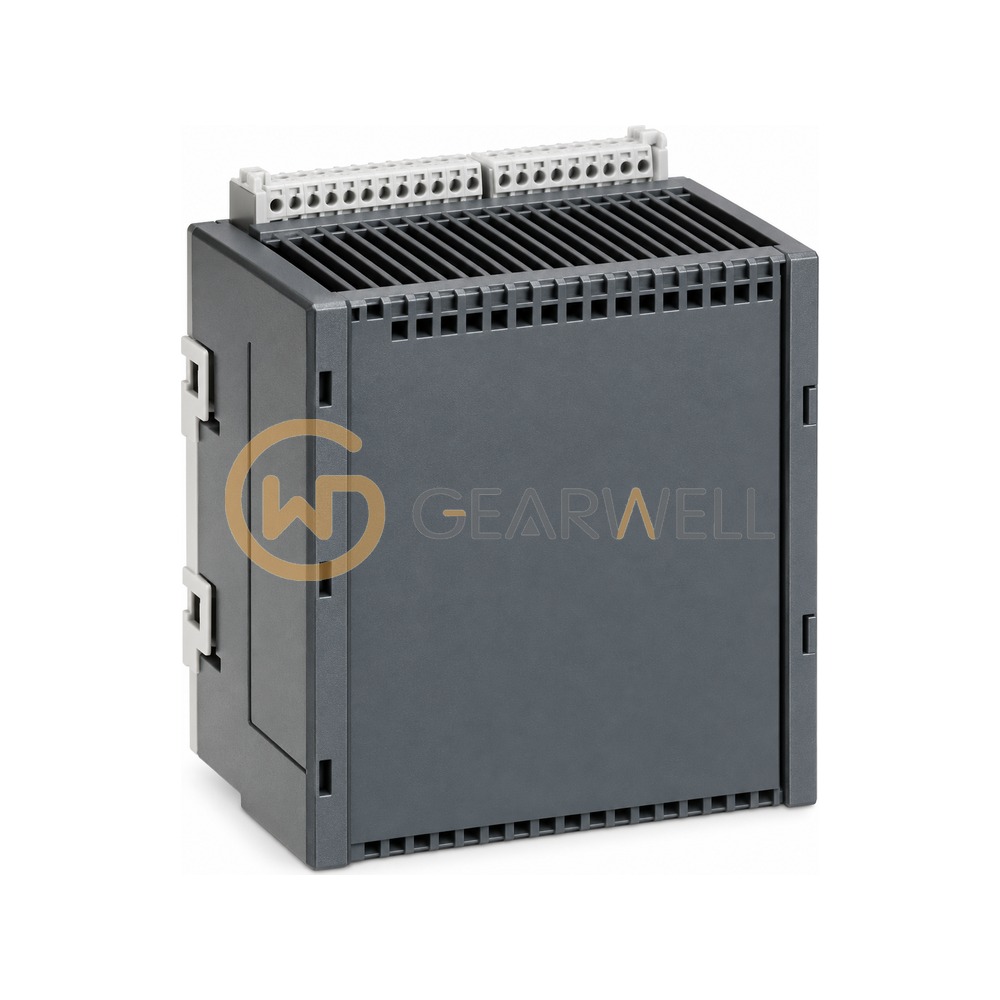

ABB 07 DC 92 Advant Controller 31 (AC31) / CS31 remote modules Digital I/O module
- Brand
- ABB
- Model
- 07 DC 92
- GEARWELL SKU
- GWP-000014660
- Category
- PLCs & I/O
Key specifications
- Bus
- CS31 system bus
- Groups
- 4, electrically isolated
- Voltage
- 24 V DC
- Channels
- 32 configurable inputs/outputs
- Output type
- Transistor, 0.5 A, short-circuit protected
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 07 DC 92 is a digital I/O module of the legacy AC31 series 90 (order code GJR5 252 200 R0101) with 32 channels that can each be configured as a 24 V DC input or a 24 V DC, 0.5 A transistor output, with 7 ms input delay and electrical isolation in groups of 8. It connects over the integrated CS31 field bus and weighs 0.25 kg.
Technical reference
| Product name | ABB 07 DC 92 Advant Controller 31 (AC31) / CS31 remote modules Digital I/O module |
|---|---|
| Brand | ABB |
| Model | 07 DC 92 |
| Category | PLCs & I/O |
| Bus | CS31 system bus |
| Groups | 4, electrically isolated |
| Voltage | 24 V DC |
| Channels | 32 configurable inputs/outputs |
| Output type | Transistor, 0.5 A, short-circuit protected |
| Order number | GJR5252200R0101 |
