ABB 07 AC 91 Advant Controller 31 (AC31) / CS31 remote modules Analog I/O module
- Brand
- ABB
- Model
- 07 AC 91
- GEARWELL SKU
- GWP-000014658
- Category
- PLCs & I/O
Key specifications
- Bus
- CS31 system bus
- Channels
- 16
- 8-bit mode
- 16 ch in pairs, 0...10 V or 0...20 mA
- 12-bit mode
- 8 AI + 8 AO, ±10 V or 0...20 mA
- Order number
- GJR5252300R0101
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

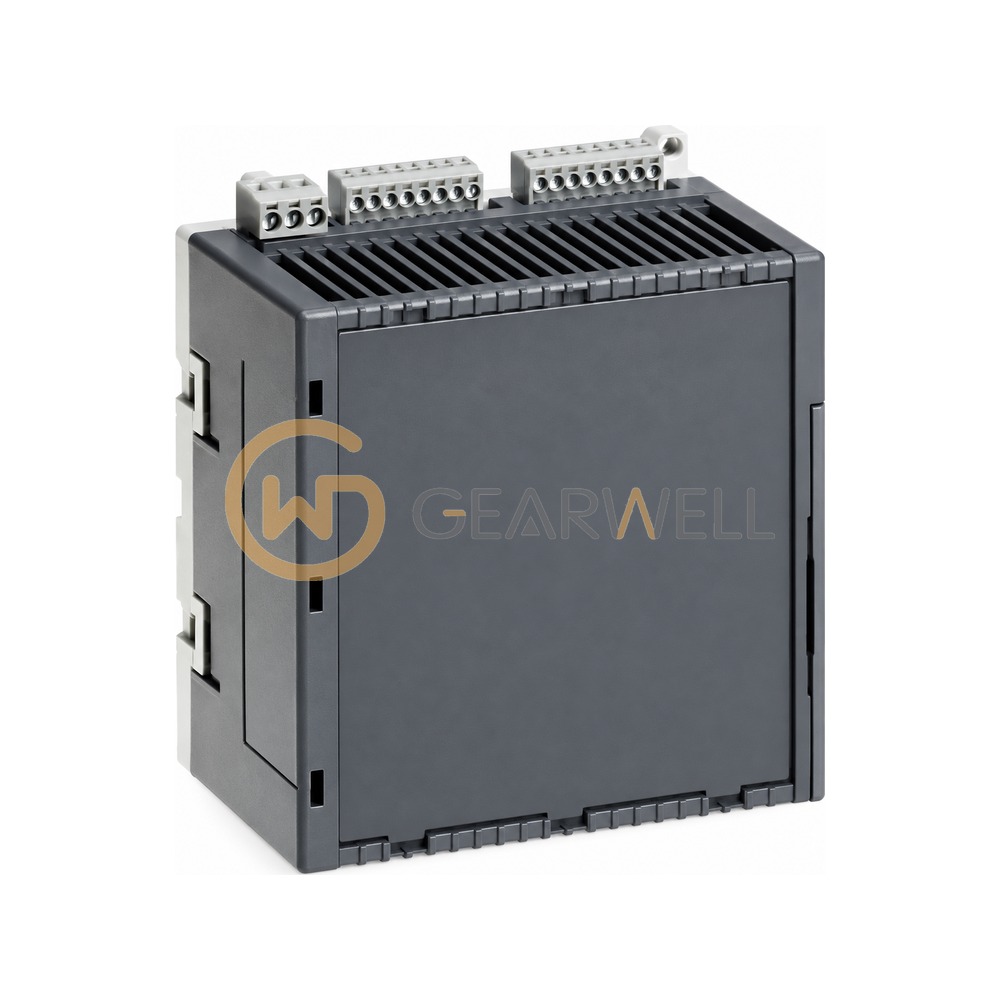

The ABB 07 AC 91 is an analog I/O module of the legacy AC31 series 90 (order code GJR5 252 300 R0101) with 16 channels that can each be configured as input or output for ± 10 V, 0 ... 20 mA or 4 ... 20 mA at 12 bits, plus 1 digital input that shuts off all analog outputs. It works either as 8 AI and 8 AO at 12 bits or in pairs at 8 bits, connects over the integrated CS31 field bus and weighs 0.25 kg.
Technical reference
| Product name | ABB 07 AC 91 Advant Controller 31 (AC31) / CS31 remote modules Analog I/O module |
|---|---|
| Brand | ABB |
| Model | 07 AC 91 |
| Category | PLCs & I/O |
| Bus | CS31 system bus |
| Channels | 16 |
| 8-bit mode | 16 ch in pairs, 0...10 V or 0...20 mA |
| 12-bit mode | 8 AI + 8 AO, ±10 V or 0...20 mA |
| Order number | GJR5252300R0101 |
| Configuration | DIL switches |
