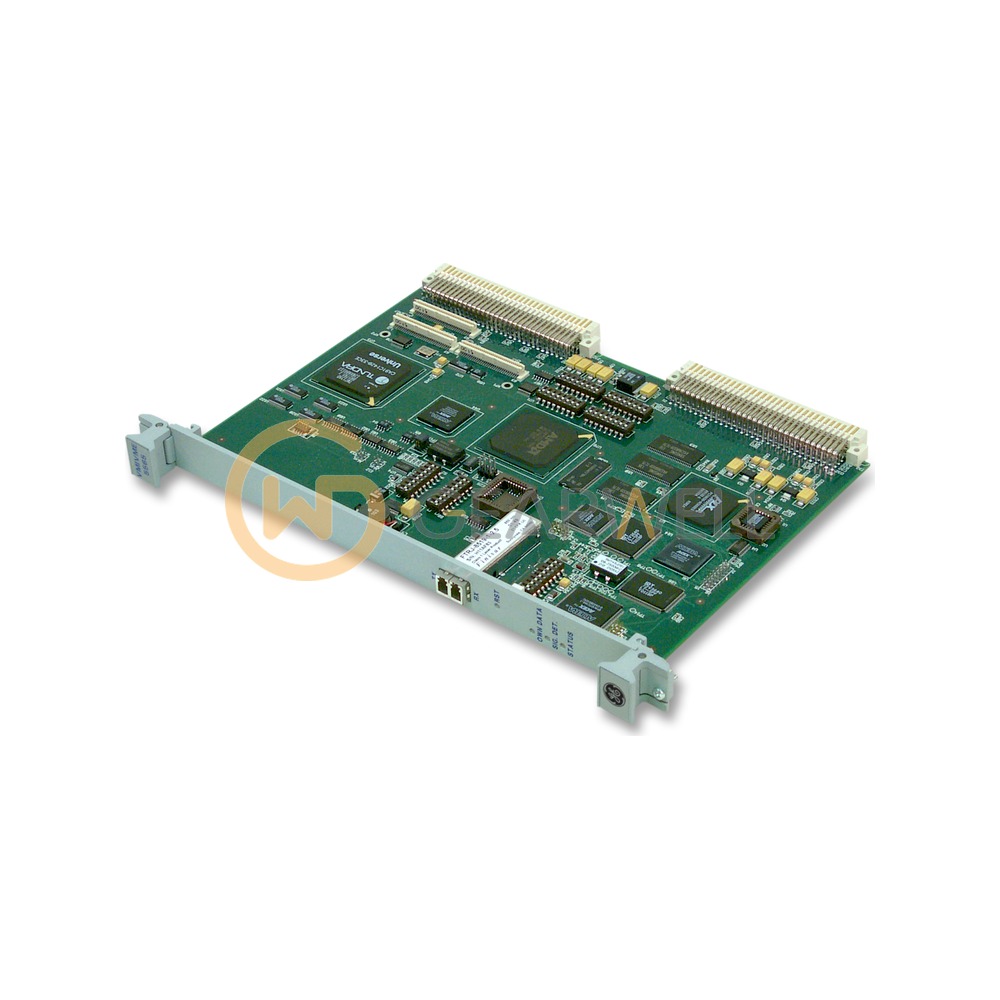

Abaco VMIVME-5565-110000 VME-5565 Reflective Memory Node Card
- Brand
- Abaco
- Model
- VMIVME-5565-110000
- GEARWELL SKU
- GWP-000014911
- Category
- Industrial Communication
Key specifications
- Nodes
- up to 256
- Evidence
- Abaco Systems VME-5565 Reflective Memory product page (web.archive.org copy, abaco.com behind Vercel checkpoint)
- Fiber link
- 2.12 Gbaud serial; multimode up to 300 m, single-mode up to 10 km
- OS support
- Linux, VxWorks, Windows
- Seller code
- VMIVME-5565-110000 332-015565-110000 P VME-5565 (ordering code + assembly number + series)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Abaco VMIVME-5565-110000 VME-5565 Reflective Memory Node Card |
|---|---|
| Brand | Abaco |
| Model | VMIVME-5565-110000 |
| Category | Industrial Communication |
| Nodes | up to 256 |
| Evidence | Abaco Systems VME-5565 Reflective Memory product page (web.archive.org copy, abaco.com behind Vercel checkpoint) |
| Fiber link | 2.12 Gbaud serial; multimode up to 300 m, single-mode up to 10 km |
| OS support | Linux, VxWorks, Windows |
| Seller code | VMIVME-5565-110000 332-015565-110000 P VME-5565 (ordering code + assembly number + series) |
| Onboard SDRAM | 64 or 128 Mbyte |
| VME transfer rate | 40 Mbyte/s |
| Code suffix "110000" | as collected; ordering table not on the opened page (memory 64 or 128 Mbyte, fiber options) |
| Network transfer rate | 43 Mbyte/s (4-byte packets) to 170 Mbyte/s (64-byte packets) |
