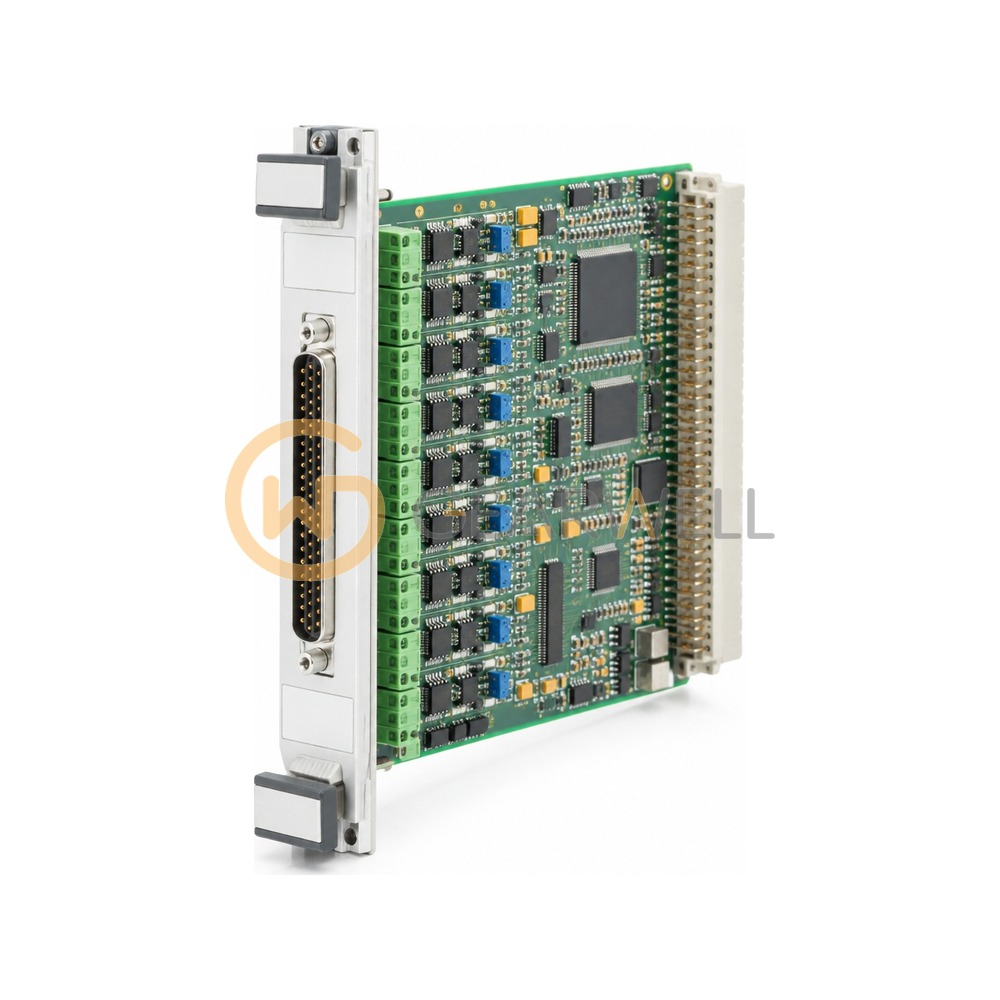

Abaco VMIVME-4140 32-Channel 12-bit VMEbus Analog Output Board
- Brand
- Abaco
- Model
- VMIVME-4140
- GEARWELL SKU
- GWP-000033120
- Category
- PLCs & I/O
Key specifications
- MTBF
- 107,400 hours (217F)
- Channels
- 32 (16-channel option available)
- Evidence
- GE Fanuc/VMIC data sheet 800-004140-000 B (hosted at hallaweb.jlab.org)
- Resolution
- 12 bit
- Output ranges
- 0 to +10 V, 0 to +5 V, 0 to +2.5 V, ±2.5 V, ±5 V, ±10 V (software selectable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Abaco VMIVME-4140 32-Channel 12-bit VMEbus Analog Output Board |
|---|---|
| Brand | Abaco |
| Model | VMIVME-4140 |
| Category | PLCs & I/O |
| MTBF | 107,400 hours (217F) |
| Channels | 32 (16-channel option available) |
| Evidence | GE Fanuc/VMIC data sheet 800-004140-000 B (hosted at hallaweb.jlab.org) |
| Resolution | 12 bit |
| Output ranges | 0 to +10 V, 0 to +5 V, 0 to +2.5 V, ±2.5 V, ±5 V, ±10 V (software selectable) |
| Output current | ±10 mA over the entire output range |
| Option C (channels) | 0 = 32 channels / 1 = 16 channels (specify on order) |
| Power requirement | +5 VDC at 4.0 A maximum |
| Option B (connector) | 0 = discrete wire / 1 = IDC mass-terminated (specify on order) |
| Operating temperature | 0 to +65 °C |
