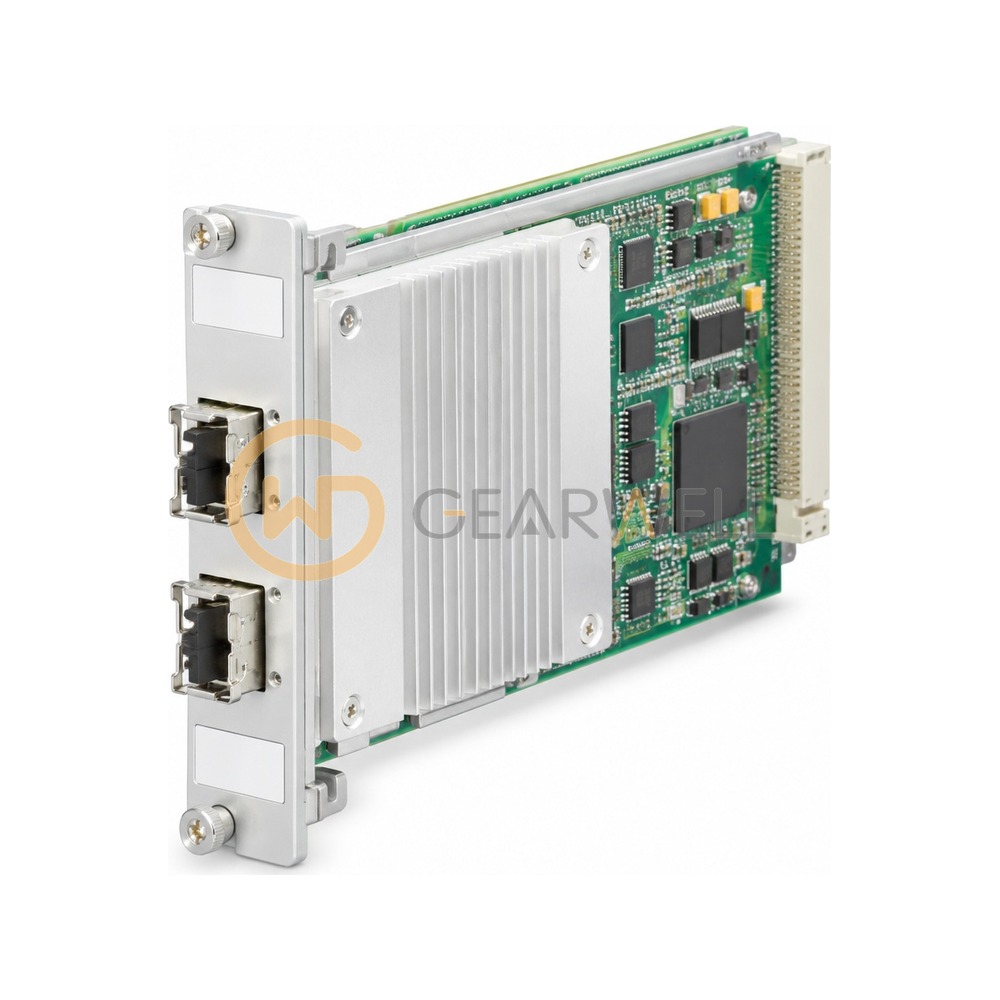

Abaco VMIPMC-5565 PMC-5565 Fiber-Optic Reflective Memory PMC Card
- Brand
- Abaco
- Model
- VMIPMC-5565
- GEARWELL SKU
- GWP-000033115
- Category
- Industrial Communication
Key specifications
- DMA
- two independent DMA channels
- Evidence
- Abaco Systems official product page PMC-5565, archived copy (web.archive.org 2025-02-14)
- Function
- ultrahigh speed fiber-optic Reflective Memory with interrupts, 2.12 Gbaud
- Lifecycle
- Restricted Production Phase since June 30, 2010
- Fiber link
- multimode up to 300 m, single mode up to 10 km
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Abaco VMIPMC-5565 PMC-5565 Fiber-Optic Reflective Memory PMC Card |
|---|---|
| Brand | Abaco |
| Model | VMIPMC-5565 |
| Category | Industrial Communication |
| DMA | two independent DMA channels |
| Evidence | Abaco Systems official product page PMC-5565, archived copy (web.archive.org 2025-02-14) |
| Function | ultrahigh speed fiber-optic Reflective Memory with interrupts, 2.12 Gbaud |
| Lifecycle | Restricted Production Phase since June 30, 2010 |
| Fiber link | multimode up to 300 m, single mode up to 10 km |
| Network nodes | up to 256 |
| Onboard SDRAM | 64 Mbyte or 128 Mbyte (per ordering option) |
| Transfer rate | 43 Mbyte/s (4-byte packets) to 174 Mbyte/s (64-byte packets) |
| Host interface | PCI 64-bit 66 MHz, 3.3 or 5 V, single-width PMC mezzanine |
| Abaco designation | PMC-5565 (VMIC prefix form VMIPMC-5565) |
