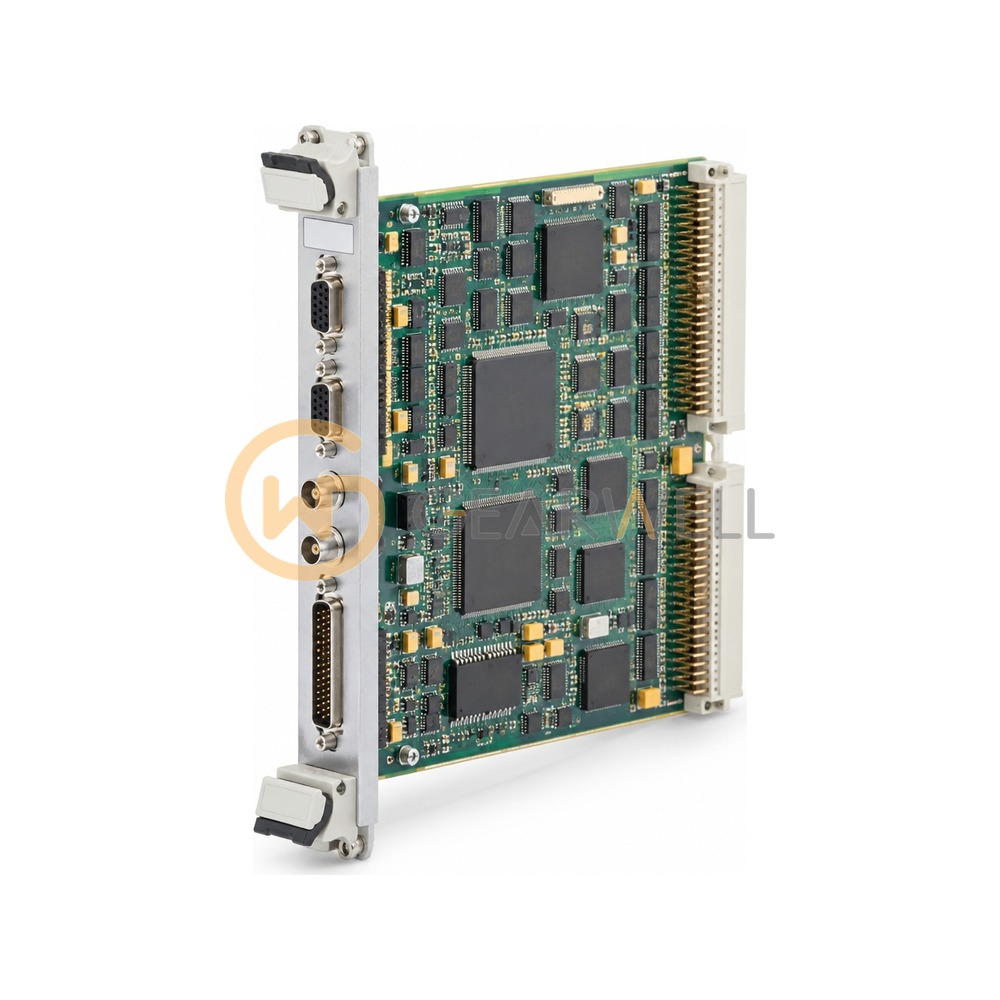

Abaco VME-7807RC-411000 Pentium M VMEbus Single Board Computer
- Brand
- Abaco
- Model
- VME-7807RC-411000
- GEARWELL SKU
- GWP-000033108
- Category
- HMIs & Industrial PCs
Key specifications
- I/O
- 4 serial ports, 4 USB 2.0, Gigabit Ethernet, SVGA/DVI, SATA via P2
- ECC (E=0)
- No ECC
- Evidence
- GE Fanuc VMIVME-7807 data sheet 800-007807-000 B and VMIVME-7807/VME-7807RC product manual 500-007807-000 Rev. F (hosted at galileo.phys.virginia.edu); options decoded with the VMIVME-7807 ordering table
- Expansion
- 1 PMC site (PCI-X, 66 MHz)
- Chipset / bus
- Intel 855GME, 400 MHz system bus
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Abaco VME-7807RC-411000 Pentium M VMEbus Single Board Computer |
|---|---|
| Brand | Abaco |
| Model | VME-7807RC-411000 |
| Category | HMIs & Industrial PCs |
| I/O | 4 serial ports, 4 USB 2.0, Gigabit Ethernet, SVGA/DVI, SATA via P2 |
| ECC (E=0) | No ECC |
| Evidence | GE Fanuc VMIVME-7807 data sheet 800-007807-000 B and VMIVME-7807/VME-7807RC product manual 500-007807-000 Rev. F (hosted at galileo.phys.virginia.edu); options decoded with the VMIVME-7807 ordering table |
| Expansion | 1 PMC site (PCI-X, 66 MHz) |
| Chipset / bus | Intel 855GME, 400 MHz system bus |
| Seller code | VME7807RC350-00780-411000 (model + truncated assembly number) |
| RoHS version | VME-7807RC = RoHS version of VMIVME-7807 (82546GB GbE controller; same form, fit, function) |
| DDR SDRAM (B=1) | 512 Mbyte |
| Processor (A=4) | 1.8 GHz Pentium M |
| Front panel (F=0) | VME standard front panel |
| CompactFlash (C=1) | 128 Mbyte |
| Connector P0 (D=0) | No P0 |
