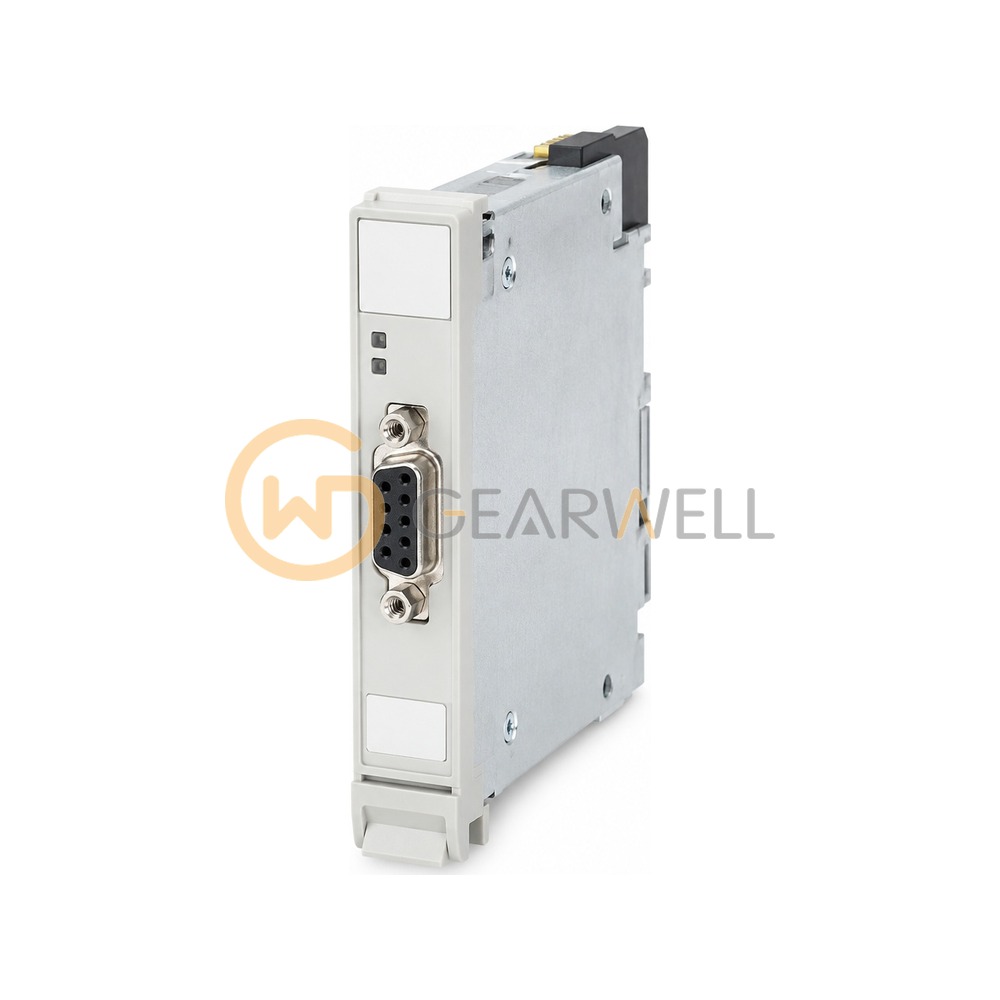

YOKOGAWA ALP111-S00 CENTUM CS 3000 PROFIBUS-DP Communication Module
- Brand
- YOKOGAWA
- Model
- ALP111-S00
- GEARWELL SKU
- GWP-000035338
- Category
- Industrial Communication
Key specifications
- Weight
- 0.3 kg
- Connector
- D-sub 9-pin (female), one port
- Interface
- PROFIBUS-DP master, EIA RS-485 compliant, isolated
- Suffix meaning
- -S = standard type; 0 = always 0; 0 = basic type
- Maintenance port
- D-sub 9-pin (male), RS-232C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA ALP111-S00 CENTUM CS 3000 PROFIBUS-DP Communication Module |
|---|---|
| Brand | YOKOGAWA |
| Model | ALP111-S00 |
| Category | Industrial Communication |
| Weight | 0.3 kg |
| Connector | D-sub 9-pin (female), one port |
| Interface | PROFIBUS-DP master, EIA RS-485 compliant, isolated |
| Suffix meaning | -S = standard type; 0 = always 0; 0 = basic type |
| Maintenance port | D-sub 9-pin (male), RS-232C |
| Communication speed | 9600 bps to 12 Mbps |
| Maximum current consumption | 0.7 A |
| Maximum transmission distance | 1.2 km per segment at 9600 bps |
