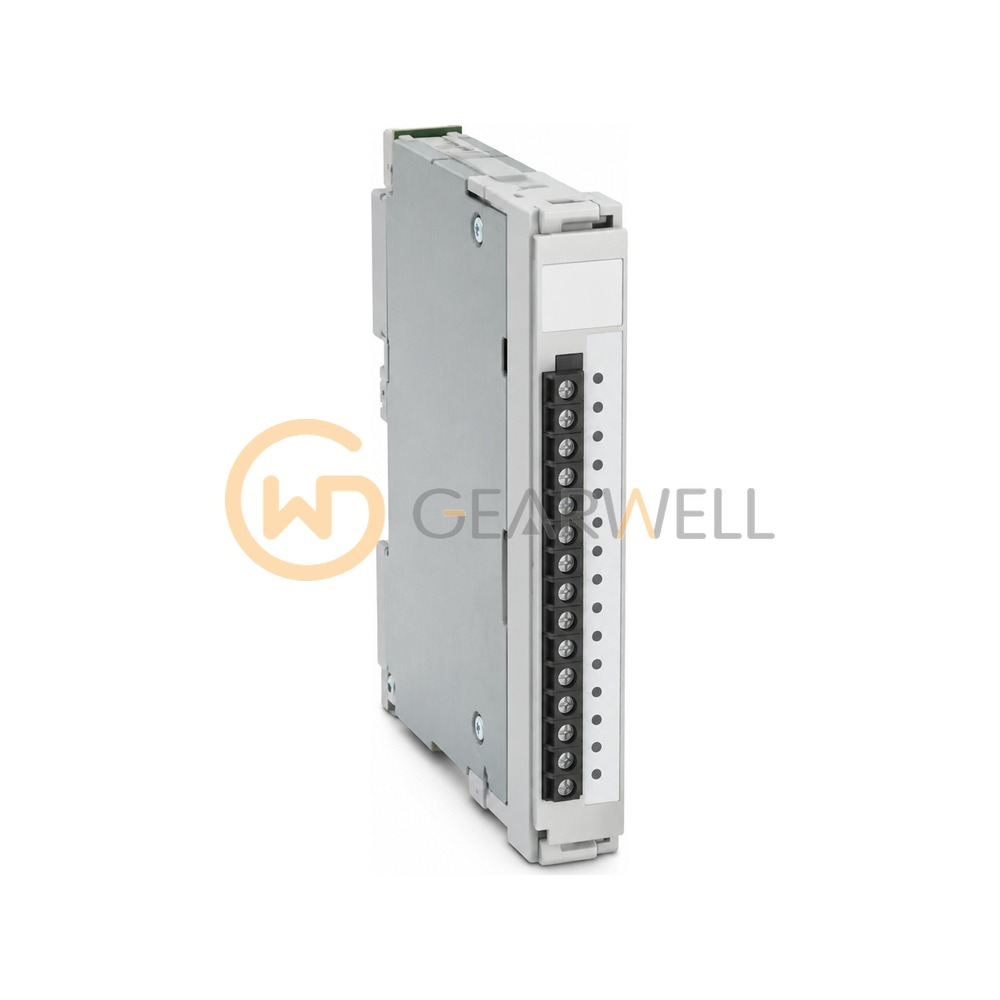

YOKOGAWA ADV551-P53 CENTUM CS 3000 Digital Output Module
- Brand
- YOKOGAWA
- Model
- ADV551-P53
- GEARWELL SKU
- GWP-000035296
- Category
- PLCs & I/O
Key specifications
- Weight
- 0.2 kg
- Output format
- Current sink, max. load 100 mA/channel at 26.4 V
- Suffix meaning
- -P = with pulse width/time-proportional output function; 5 = without status display, no explosion protection; 3 = with ISA Standard G3 option and temperature (-20 to 70 °C) option
- Withstanding voltage
- 2 kV AC for 1 minute between output signal and system
- Rated applied voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA ADV551-P53 CENTUM CS 3000 Digital Output Module |
|---|---|
| Brand | YOKOGAWA |
| Model | ADV551-P53 |
| Category | PLCs & I/O |
| Weight | 0.2 kg |
| Output format | Current sink, max. load 100 mA/channel at 26.4 V |
| Suffix meaning | -P = with pulse width/time-proportional output function; 5 = without status display, no explosion protection; 3 = with ISA Standard G3 option and temperature (-20 to 70 °C) option |
| Withstanding voltage | 2 kV AC for 1 minute between output signal and system |
| Rated applied voltage | 24 V DC |
| Number of output channels | 32 |
| Maximum current consumption | 700 mA (5 V DC); 60 mA (external power supply) |
