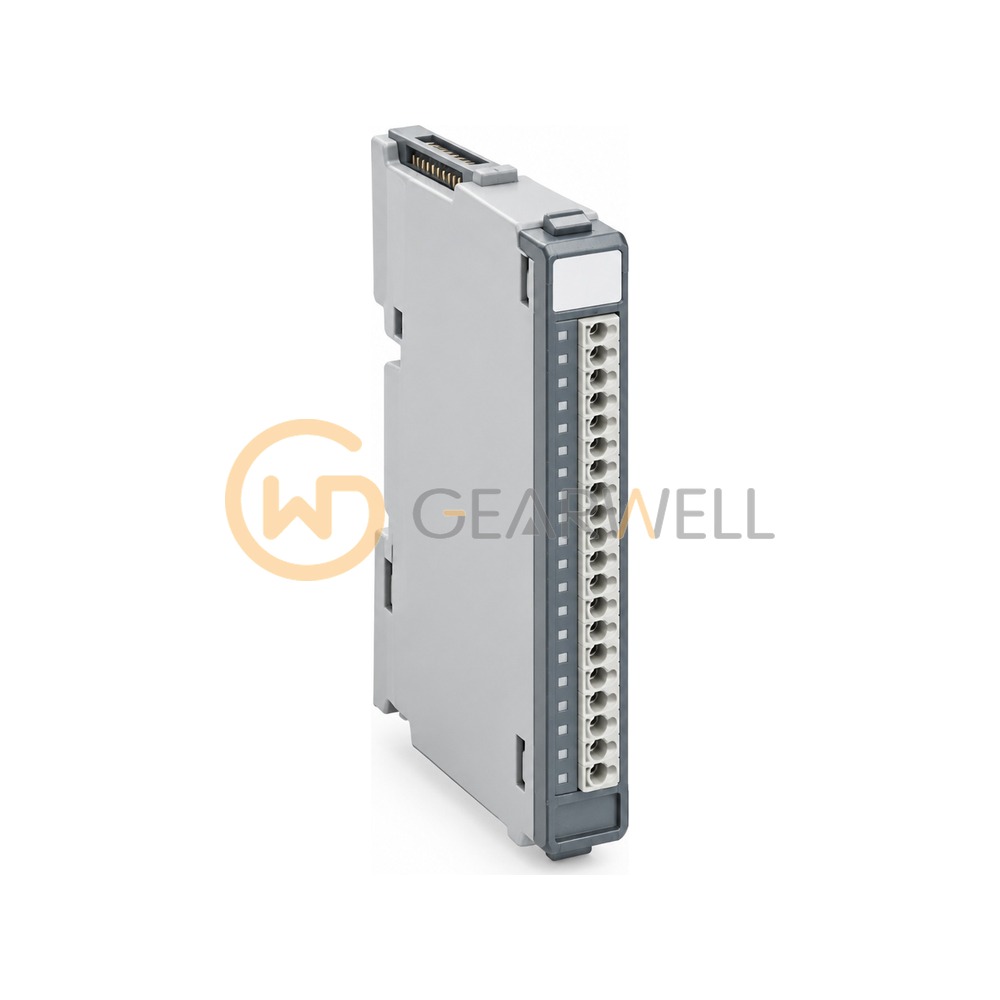

YOKOGAWA ADV151-E50 CENTUM CS 3000 Digital Input Module
- Brand
- YOKOGAWA
- Model
- ADV151-E50
- GEARWELL SKU
- GWP-000035292
- Category
- PLCs & I/O
Key specifications
- Series
- CENTUM CS 3000 FIO (Field network I/O)
- Weight
- 0.3 kg
- Input current
- 4.1 mA ±20 % per channel
- Suffix meaning
- -E = with SOE capture; 5 = without status display, no explosion protection; 0 = basic type
- Rated input voltage
- 24 V DC (sink/source), common every 16 channels
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA ADV151-E50 CENTUM CS 3000 Digital Input Module |
|---|---|
| Brand | YOKOGAWA |
| Model | ADV151-E50 |
| Category | PLCs & I/O |
| Series | CENTUM CS 3000 FIO (Field network I/O) |
| Weight | 0.3 kg |
| Input current | 4.1 mA ±20 % per channel |
| Suffix meaning | -E = with SOE capture; 5 = without status display, no explosion protection; 0 = basic type |
| Rated input voltage | 24 V DC (sink/source), common every 16 channels |
| Withstanding voltage | 2 kV AC for 1 minute between input signal and system |
| Number of input channels | 32 |
| Maximum current consumption | 500 mA (5 V DC) |
