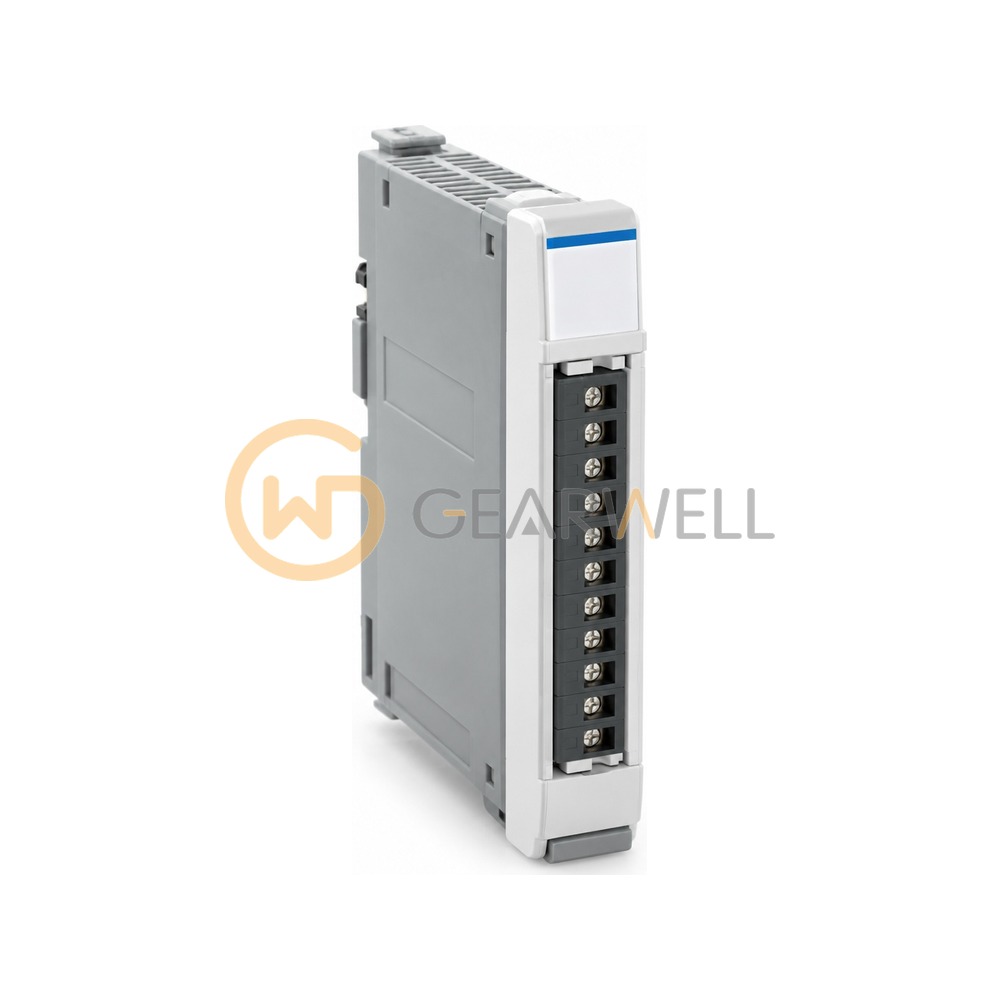

YOKOGAWA AAI543-S50 CENTUM VP Analog Output Module
- Brand
- YOKOGAWA
- Model
- AAI543-S50
- GEARWELL SKU
- GWP-000035282
- Category
- PLCs & I/O
Key specifications
- Series
- Also listed in CENTUM CS 3000 GS 33Q06Q40-31E (Analog I/O Modules for FIO)
- Weight
- Approx. 0.40 kg
- Output signal
- 4 to 20 mA
- Suffix code S
- -S = Standard type
- Number of channels
- 16, isolated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA AAI543-S50 CENTUM VP Analog Output Module |
|---|---|
| Brand | YOKOGAWA |
| Model | AAI543-S50 |
| Category | PLCs & I/O |
| Series | Also listed in CENTUM CS 3000 GS 33Q06Q40-31E (Analog I/O Modules for FIO) |
| Weight | Approx. 0.40 kg |
| Output signal | 4 to 20 mA |
| Suffix code S | -S = Standard type |
| Number of channels | 16, isolated |
| External connection | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| Allowable load resistance | 0 to 750 ohm |
| Suffix code 0 (3rd position) | 0 = Basic type |
| Suffix code 5 (2nd position) | 5 = Standard switch-over response in redundant configuration with no explosion protection |
| Maximum current consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
