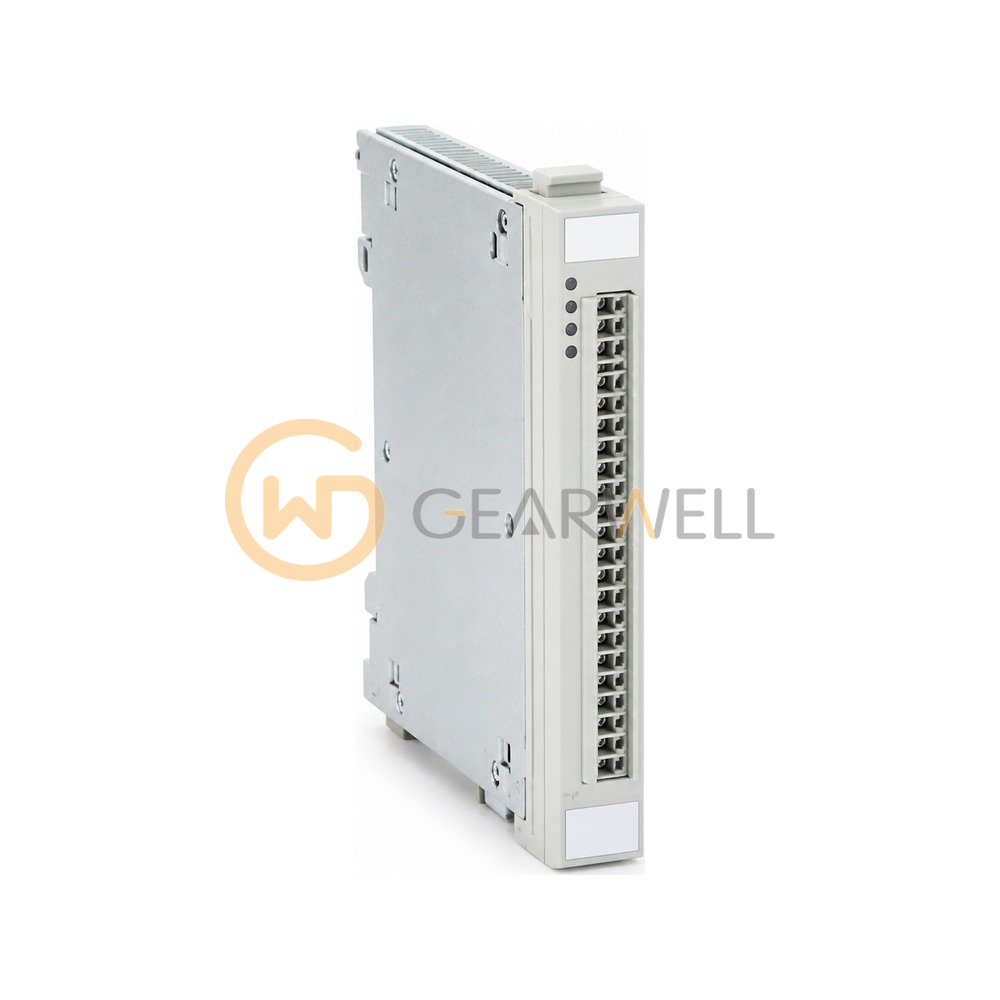

YOKOGAWA AAI135-H53 CENTUM VP Analog Input Module
- Brand
- YOKOGAWA
- Model
- AAI135-H53
- GEARWELL SKU
- GWP-000035277
- Category
- PLCs & I/O
Key specifications
- Series
- Also listed in CENTUM CS 3000 GS 33Q06Q40-31E (Analog I/O Modules for FIO)
- Weight
- Approx. 0.30 kg
- Input signal
- 4 to 20 mA
- Suffix code H
- -H = With digital communication (HART protocol)
- Number of channels
- 8, isolated channels
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA AAI135-H53 CENTUM VP Analog Input Module |
|---|---|
| Brand | YOKOGAWA |
| Model | AAI135-H53 |
| Category | PLCs & I/O |
| Series | Also listed in CENTUM CS 3000 GS 33Q06Q40-31E (Analog I/O Modules for FIO) |
| Weight | Approx. 0.30 kg |
| Input signal | 4 to 20 mA |
| Suffix code H | -H = With digital communication (HART protocol) |
| Number of channels | 8, isolated channels |
| External connection | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| Withstanding voltage | Between input and system: 500 V AC for 1 minute; between input channels: 500 V AC for 1 minute |
| Suffix code 3 (3rd position) | 3 = With ISA Standard G3 option and temperature (-20 to 70 °C) option |
| Suffix code 5 (2nd position) | 5 = With no explosion protection |
| Maximum current consumption | 360 mA (5 V DC), 450 mA (24 V DC) |
