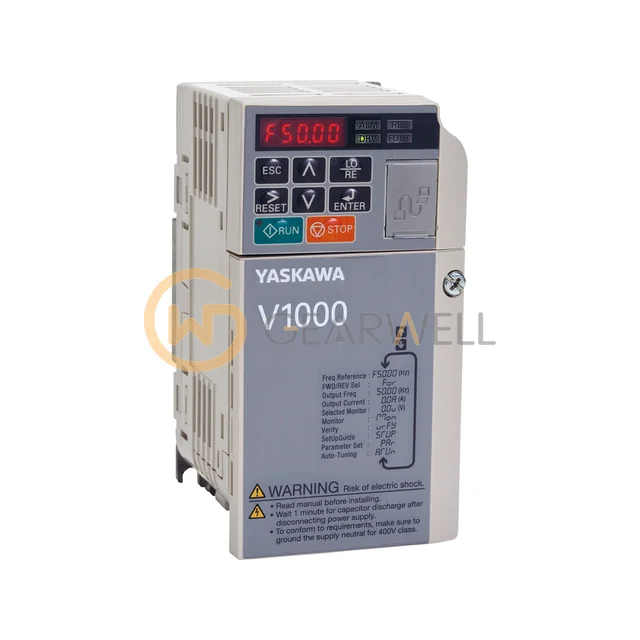

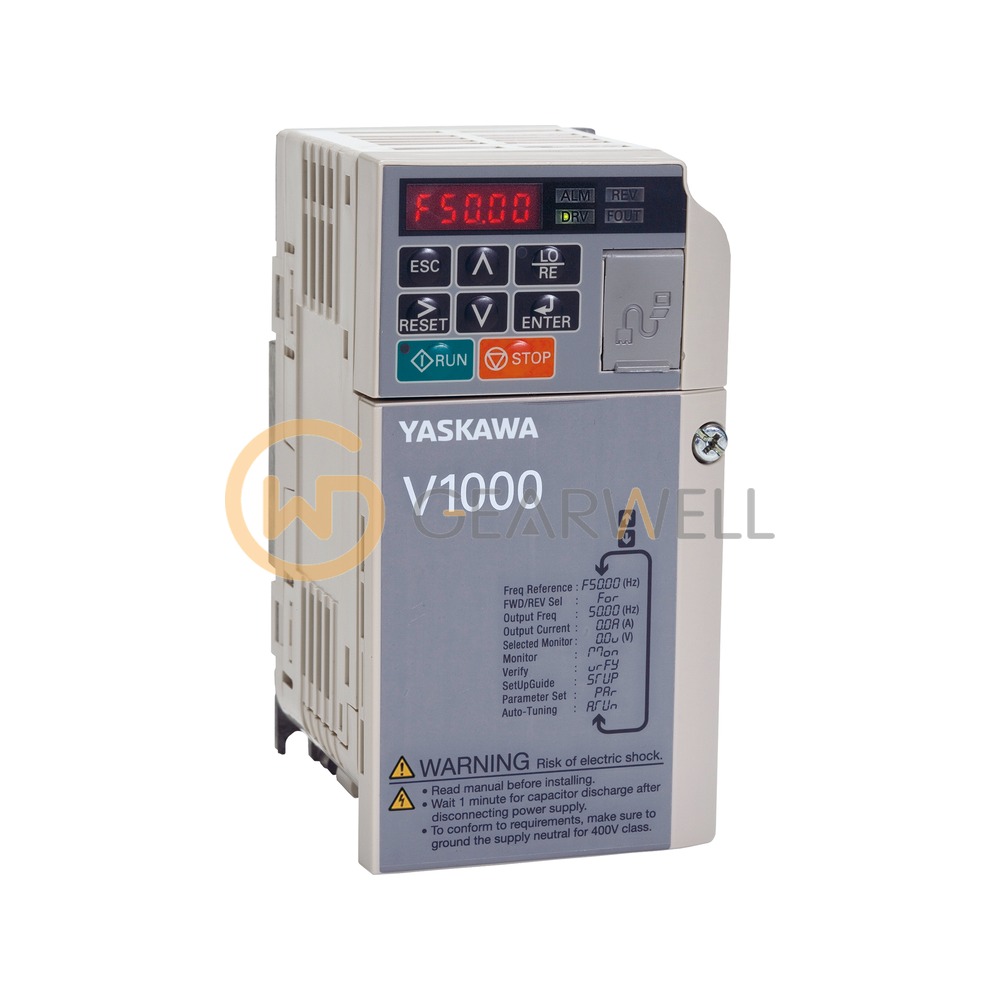

YASKAWA CIMR-VCBA0003BAA V1000 Compact Vector AC Drive 0.75 kW

Product overview

The Yaskawa CIMR-VCBA0003BAA is a V1000 series compact vector control AC drive with the Europe region code, made for a single-phase 200-240 Vac supply and giving a three-phase output to the motor (it cannot run a single-phase motor). In Normal Duty it is rated 3.3 A for a motor up to 0.75 kW, and in Heavy Duty 3.0 A for a motor up to 0.55 kW. Overload capacity is 120% of rated output current for 1 minute in Normal Duty and 150% for 1 minute in Heavy Duty, and the output frequency goes up to 400 Hz. The B enclosure letter stands for an IP20/Open-Chassis housing and the following A for the standard environmental specification; it is not the H enclosure version, which combines IP66 with an EMC filter.
