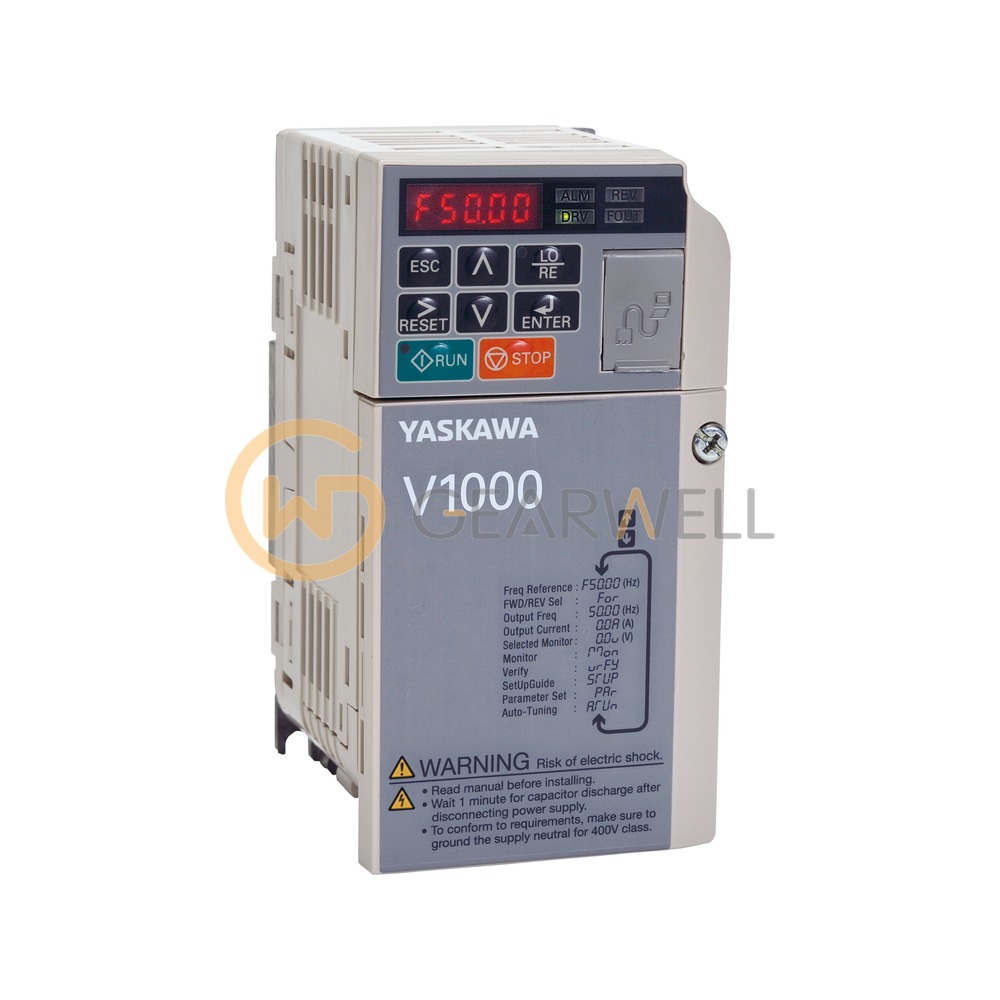

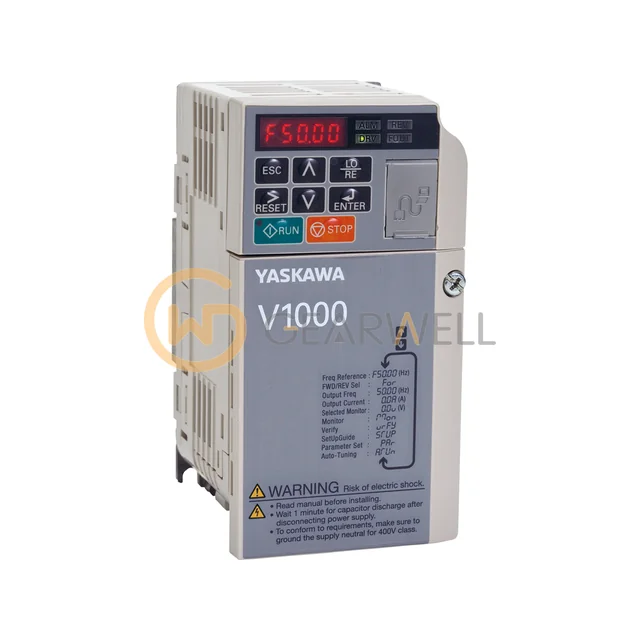

YASKAWA CIMR-VA2A0006BAA V1000 Compact Vector AC Drive 200 V
- Brand
- YASKAWA
- Model
- CIMR-VA2A0006BAA
- GEARWELL SKU
- GWP-000010833
- Category
- Variable Frequency Drives
Key specifications
- Supply
- Three-phase 200 V
- Enclosure
- IP20
- Dimensions (W x H x D)
- 68 x 128 x 128 mm
- Rated output current (ND / HD)
- 6 / 5 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Yaskawa CIMR-VA2A0006BAA is a V1000 series compact vector control AC drive with the Japan region code, made for a three-phase 200-240 Vac supply. Rated output current is 6.0 A in Normal Duty and 5.0 A in Heavy Duty. Overload capacity is 120% of rated output current for 1 minute in Normal Duty and 150% for 1 minute in Heavy Duty, and the output frequency goes up to 400 Hz. The B enclosure letter stands for an IP20/Open-Chassis housing and the following A for the standard environmental specification; it is not the H enclosure version, which combines IP66 with an EMC filter.
Technical reference
| Product name | YASKAWA CIMR-VA2A0006BAA V1000 Compact Vector AC Drive 200 V |
|---|---|
| Brand | YASKAWA |
| Model | CIMR-VA2A0006BAA |
| Category | Variable Frequency Drives |
| Supply | Three-phase 200 V |
| Enclosure | IP20 |
| Dimensions (W x H x D) | 68 x 128 x 128 mm |
| Rated output current (ND / HD) | 6 / 5 A |
