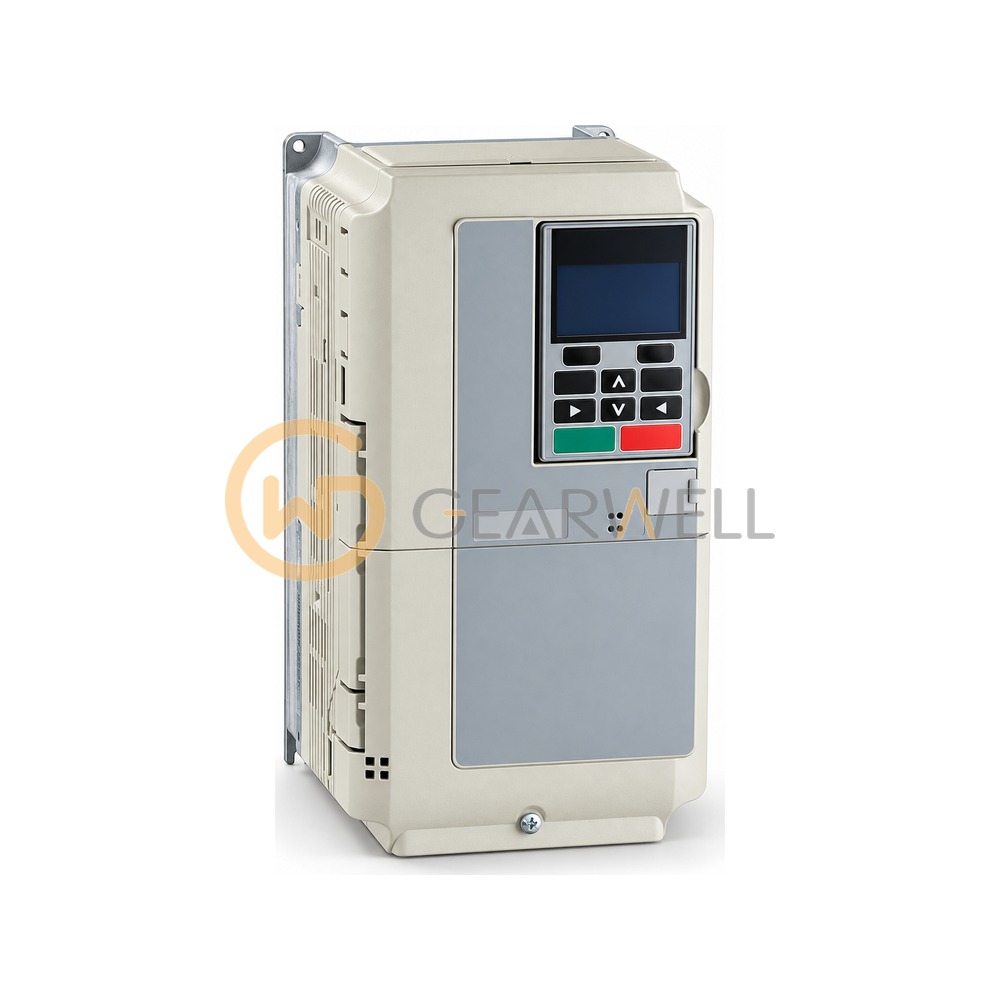

YASKAWA CIMR-AB4A0011FBA A1000 High-Performance Vector AC Drive
- Brand
- YASKAWA
- Model
- CIMR-AB4A0011FBA
- GEARWELL SKU
- GWP-000013280
- Category
- Variable Frequency Drives
Key specifications
- Series
- YASKAWA A1000 High-Performance Vector AC Drive
- Region code "B"
- China
- Enclosure (code "F")
- IP20/NEMA Type 1 (UL Type 1)
- Heavy Duty rating
- max. motor 3.7 kW, rated output current 9.2 A
- Normal Duty rating
- max. motor 5.5 kW, rated output current 11.1 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YASKAWA CIMR-AB4A0011FBA A1000 High-Performance Vector AC Drive |
|---|---|
| Brand | YASKAWA |
| Model | CIMR-AB4A0011FBA |
| Category | Variable Frequency Drives |
| Series | YASKAWA A1000 High-Performance Vector AC Drive |
| Region code "B" | China |
| Enclosure (code "F") | IP20/NEMA Type 1 (UL Type 1) |
| Heavy Duty rating | max. motor 3.7 kW, rated output current 9.2 A |
| Normal Duty rating | max. motor 5.5 kW, rated output current 11.1 A |
| Design revision order | A |
| Customized specification "A" | Standard model |
| Input power supply (voltage code "4") | 3-phase 380-480 VAC |
| Environmental specification code "B" | as collected; not listed in the official model-number table (defined: A standard, K gas-resistant, M humidity- and dust-resistant, N oil-resistant, S vibration-resistant) |
