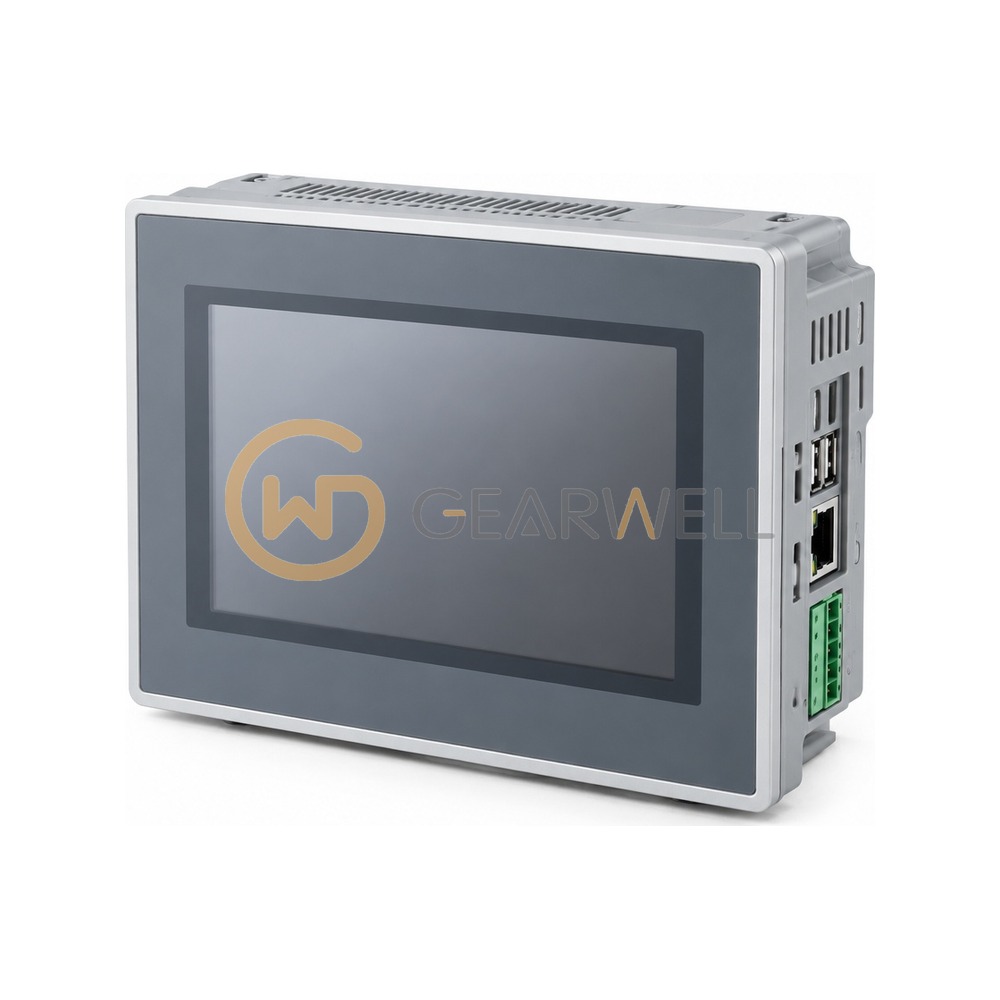

XINJE XP2-18R-V XP Series HMI PLC All-in-One Controller
- Brand
- XINJE
- Model
- XP2-18R-V
- GEARWELL SKU
- GWP-000023472
- Category
- PLCs & I/O
Key specifications
- I/O
- 10 inputs / 8 relay outputs
- Ports
- RS-232 (programming), RS-485
- Display
- 3.7 in yellow-green LCD, 192 x 64
- PLC type
- XC2 series (XP2)
- Dimensions
- 172.0 x 121.0 x 56.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | XINJE XP2-18R-V XP Series HMI PLC All-in-One Controller |
|---|---|
| Brand | XINJE |
| Model | XP2-18R-V |
| Category | PLCs & I/O |
| I/O | 10 inputs / 8 relay outputs |
| Ports | RS-232 (programming), RS-485 |
| Display | 3.7 in yellow-green LCD, 192 x 64 |
| PLC type | XC2 series (XP2) |
| Dimensions | 172.0 x 121.0 x 56.5 mm |
| Code suffix "-V" | as collected; not listed in the official model-number table (XP2-18R / XP2-18R-B) |
| Input voltage | DC 24 V |
| Program capacity | 96 KB |
| Operating temperature | 0~50 °C |
