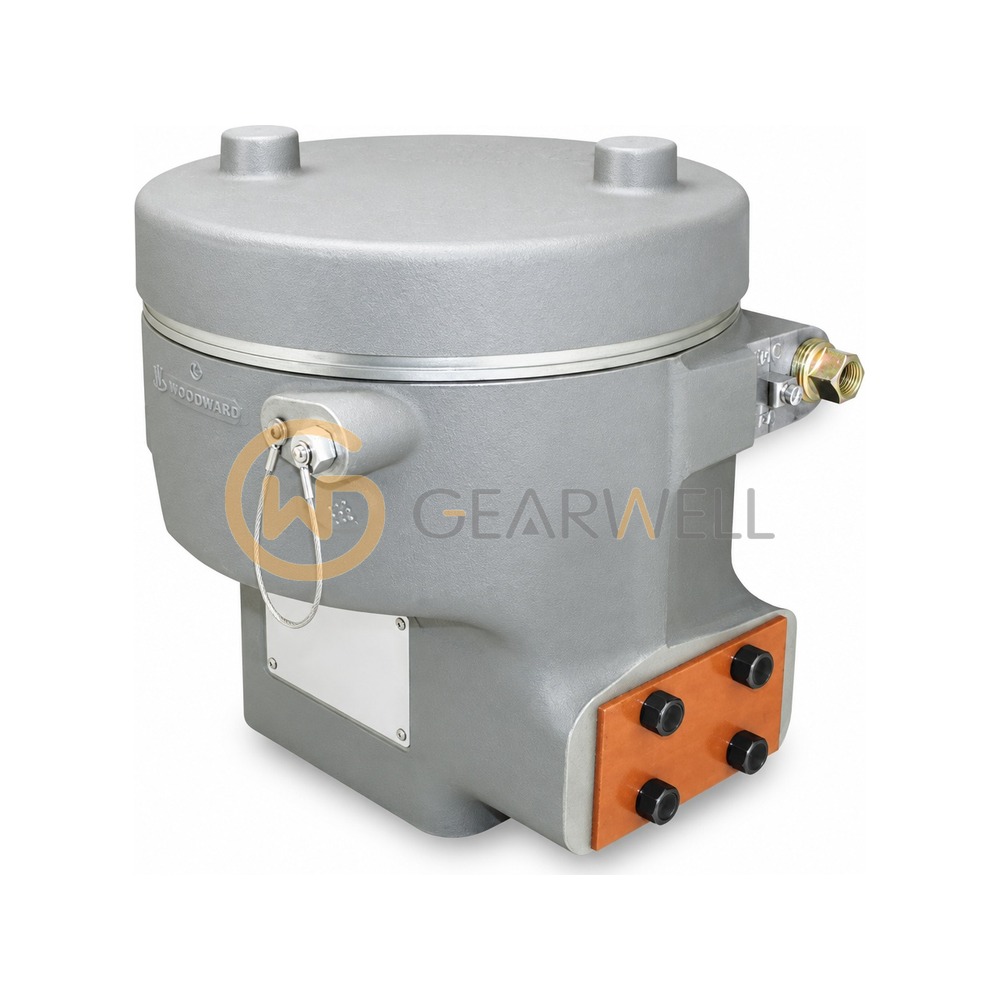

WOODWARD 9907-1200 CPC-II Current-to-Pressure Converter 10 bar Zone 2
- Brand
- WOODWARD
- Model
- 9907-1200
- GEARWELL SKU
- GWP-000026348
- Category
- Hydraulic Valves
Key specifications
- Weight
- approx. 25 kg (55 lb) without oil
- Input signal
- 4 to 20 mA (isolated, 250 Ω)
- Input supply
- 18 to 32 V dc @ 1.5 A steady state, 8 A peak (100 ms)
- Location rating
- Zone 2
- Catalog description
- CPC-II - 10 Bar, Class 1, Div. 2 (Zone 2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WOODWARD 9907-1200 CPC-II Current-to-Pressure Converter 10 bar Zone 2 |
|---|---|
| Brand | WOODWARD |
| Model | 9907-1200 |
| Category | Hydraulic Valves |
| Weight | approx. 25 kg (55 lb) without oil |
| Input signal | 4 to 20 mA (isolated, 250 Ω) |
| Input supply | 18 to 32 V dc @ 1.5 A steady state, 8 A peak (100 ms) |
| Location rating | Zone 2 |
| Catalog description | CPC-II - 10 Bar, Class 1, Div. 2 (Zone 2) |
| Operating temperature | -40 to +85 °C |
| Maximum input supply pressure | 25 bar / 363 psi |
| Maximum output pressure range | 0 to 10 bar (0 to 145 psi) |
