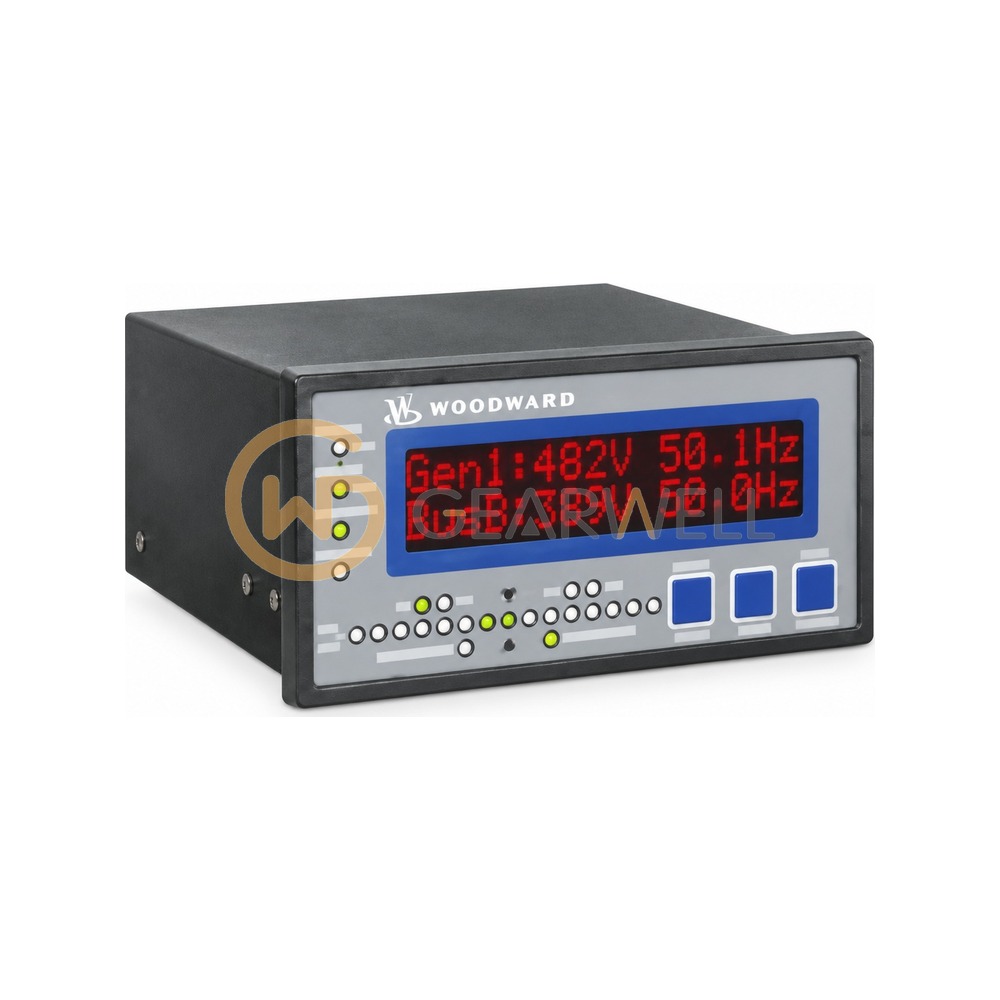

WOODWARD 8440-1706 SPM-D11/LSXR Load Share Synchronizer
- Brand
- WOODWARD
- Model
- 8440-1706
- GEARWELL SKU
- GWP-000026338
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 800 g
- Dimensions
- 144 x 72 x 122 mm
- Seller code
- SPM-D11 8440-1706
- Bias outputs
- analog speed/voltage (e.g. +/-1 V ... +/-20 mA), 500 Hz PWM, raise/lower
- Power supply
- 12/24 Vdc (9.5 to 32 Vdc)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WOODWARD 8440-1706 SPM-D11/LSXR Load Share Synchronizer |
|---|---|
| Brand | WOODWARD |
| Model | 8440-1706 |
| Category | PLCs & I/O |
| Weight | approx. 800 g |
| Dimensions | 144 x 72 x 122 mm |
| Seller code | SPM-D11 8440-1706 |
| Bias outputs | analog speed/voltage (e.g. +/-1 V ... +/-20 mA), 500 Hz PWM, raise/lower |
| Power supply | 12/24 Vdc (9.5 to 32 Vdc) |
| Front protection | IP42 (IP54 with gasket kit 8923-1037) |
| Measuring inputs | 100 Vac, ../5 A |
| Type designation | SPM-D11/LSXR, 12/24 Vdc |
| Ambient temperature | -20 to 70 °C |
