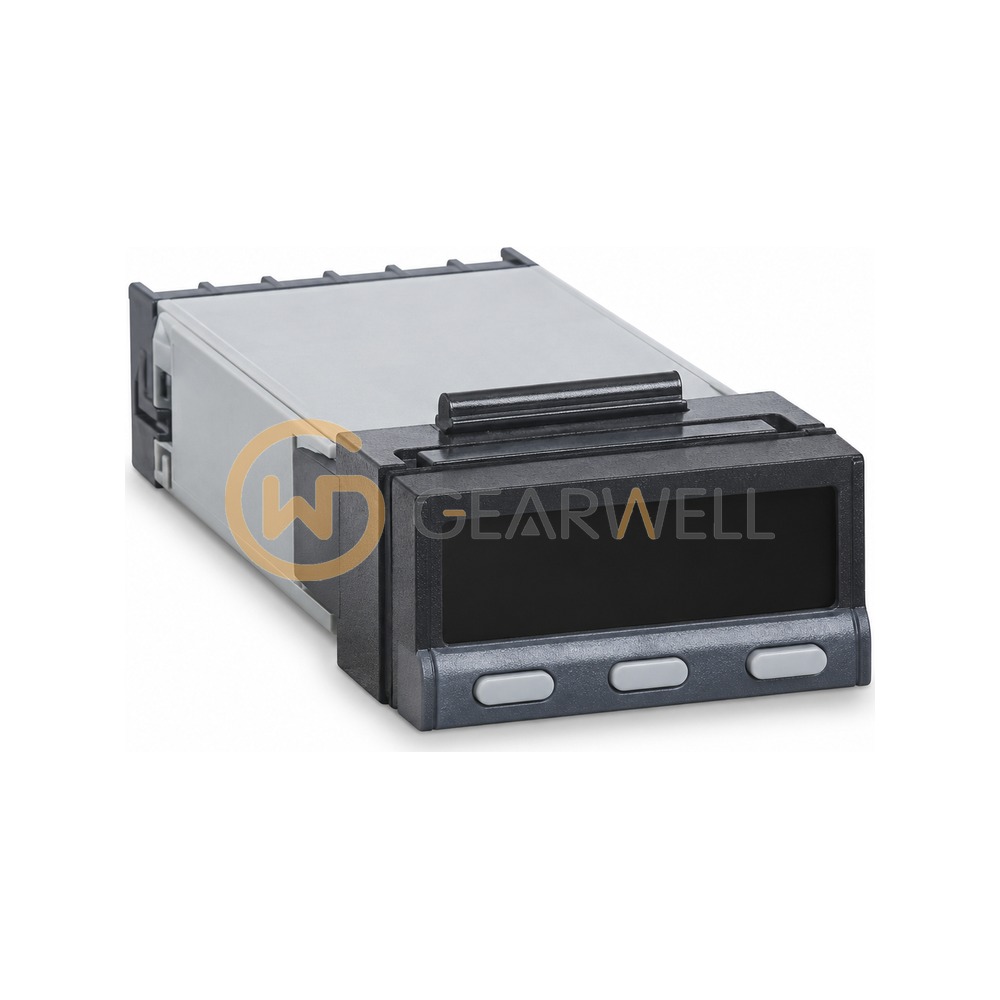

WEST Control Solutions N2300-1210-10-S160 2300 Temperature Controller
- Model
- N2300-1210-10-S160
- GEARWELL SKU
- GWP-000016584
- Category
- Pressure, Flow & Temperature
Key specifications
- Size
- 1/32 DIN, 49 x 25 mm front
- Accuracy
- +/-0.1% of input span (0.25% for J & T T/C) +/-1 LSD
- RTD input
- 3-wire PT100
- DC linear inputs
- 0-20mA, 4-20mA, 0-50mV, 10-50mV
- Type designation
- N2300
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WEST Control Solutions N2300-1210-10-S160 2300 Temperature Controller |
|---|---|
| Brand | WEST Control Solutions |
| Model | N2300-1210-10-S160 |
| Category | Pressure, Flow & Temperature |
| Size | 1/32 DIN, 49 x 25 mm front |
| Accuracy | +/-0.1% of input span (0.25% for J & T T/C) +/-1 LSD |
| RTD input | 3-wire PT100 |
| DC linear inputs | 0-20mA, 4-20mA, 0-50mV, 10-50mV |
| Type designation | N2300 |
| Thermocouple inputs | J, K, R, S, T, B, N |
| Front panel protection | IP66 |
| Output type (code digits 1-2) | Controller (relay) + alarm 1 (SSR) |
| Remaining code digits "10-10-S160" | as collected; position sequence differs from the official N2300-xx-x-x order code (display colour/supply and option are selected when ordering) |
