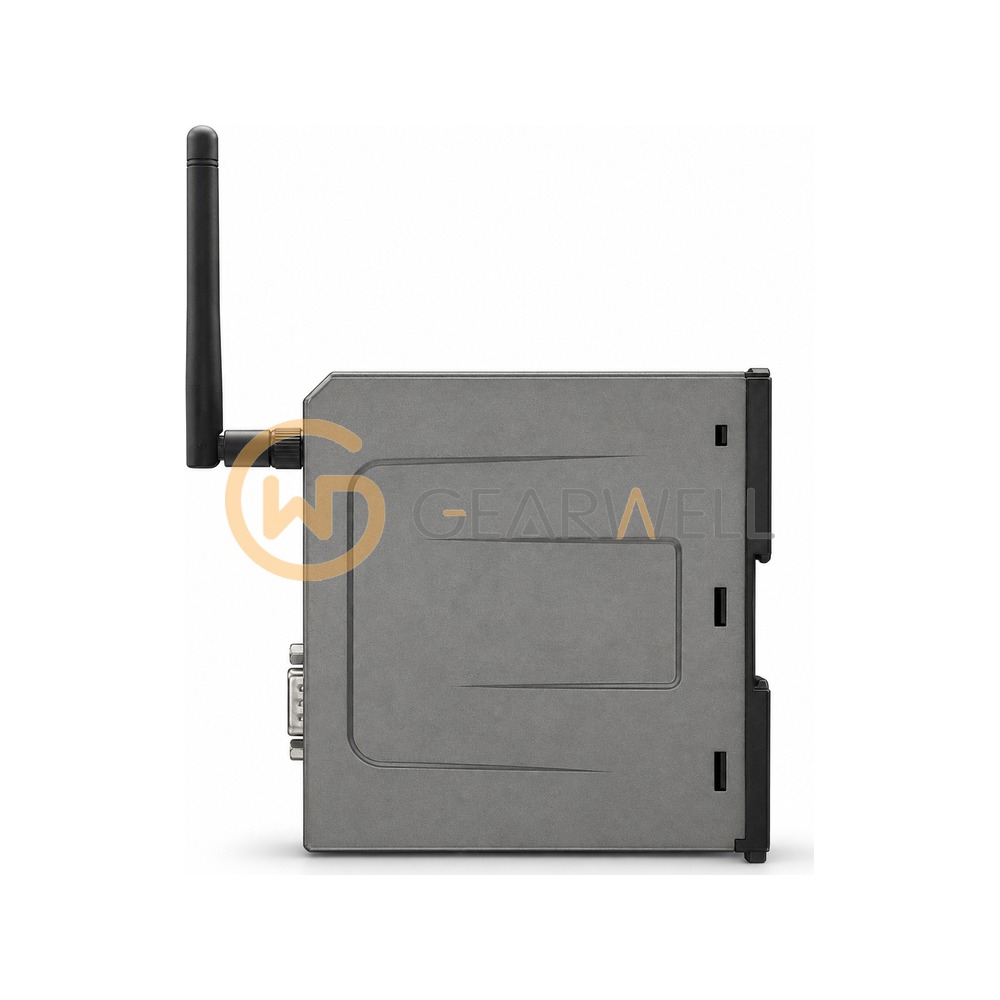

Weintek cMT-SVR-200 cMT Series HMI Server with WiFi
- Brand
- Weintek
- Model
- cMT-SVR-200
- GEARWELL SKU
- GWP-000010697
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- Quad-core RISC
- WiFi
- IEEE 802.11 b/g/n
- Ethernet
- 10/100 Base-T x 1
- Mounting
- 35 mm DIN rail
- COM ports
- COM1 RS-232 2W; COM2 RS-485 2W/4W; COM3 RS-485 2W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek cMT-SVR-200 is a cMT series HMI server without a built-in screen whose project is displayed on cMT Viewer clients, with WiFi to IEEE 802.11 b/g/n and a 2dBi antenna on an RP-SMA connector. It has a 32-bit RISC 600MHz processor, 256 MB flash, 256 MB RAM, a built-in RTC and an SD/SDHC card slot, with fanless cooling and a coated PCB. Ports are one 10/100/1000 Base-T Ethernet, one USB 2.0 host, COM1 RS-232 2W, COM2 RS-485 2W/4W and COM3 RS-485 2W. It takes a wide 10.5~28VDC input with built-in isolation, measures 27 x 130 x 115 mm, mounts on a 35 mm DIN rail, is IP20 and operates from -10 to 55°C. It is programmed with EasyBuilder Pro, with EasyAccess 2.0 as an option (the cMT-SVR-202 version has the license built in).
Technical reference
| Product name | Weintek cMT-SVR-200 cMT Series HMI Server with WiFi |
|---|---|
| Brand | Weintek |
| Model | cMT-SVR-200 |
| Category | HMIs & Industrial PCs |
| CPU | Quad-core RISC |
| WiFi | IEEE 802.11 b/g/n |
| Ethernet | 10/100 Base-T x 1 |
| Mounting | 35 mm DIN rail |
| COM ports | COM1 RS-232 2W; COM2 RS-485 2W/4W; COM3 RS-485 2W |
| Flash / RAM | 256 MB / 256 MB |
| Input power | 24 ±20% VDC |
| Dimensions (W x H x D) | 27 x 130 x 115 mm |
