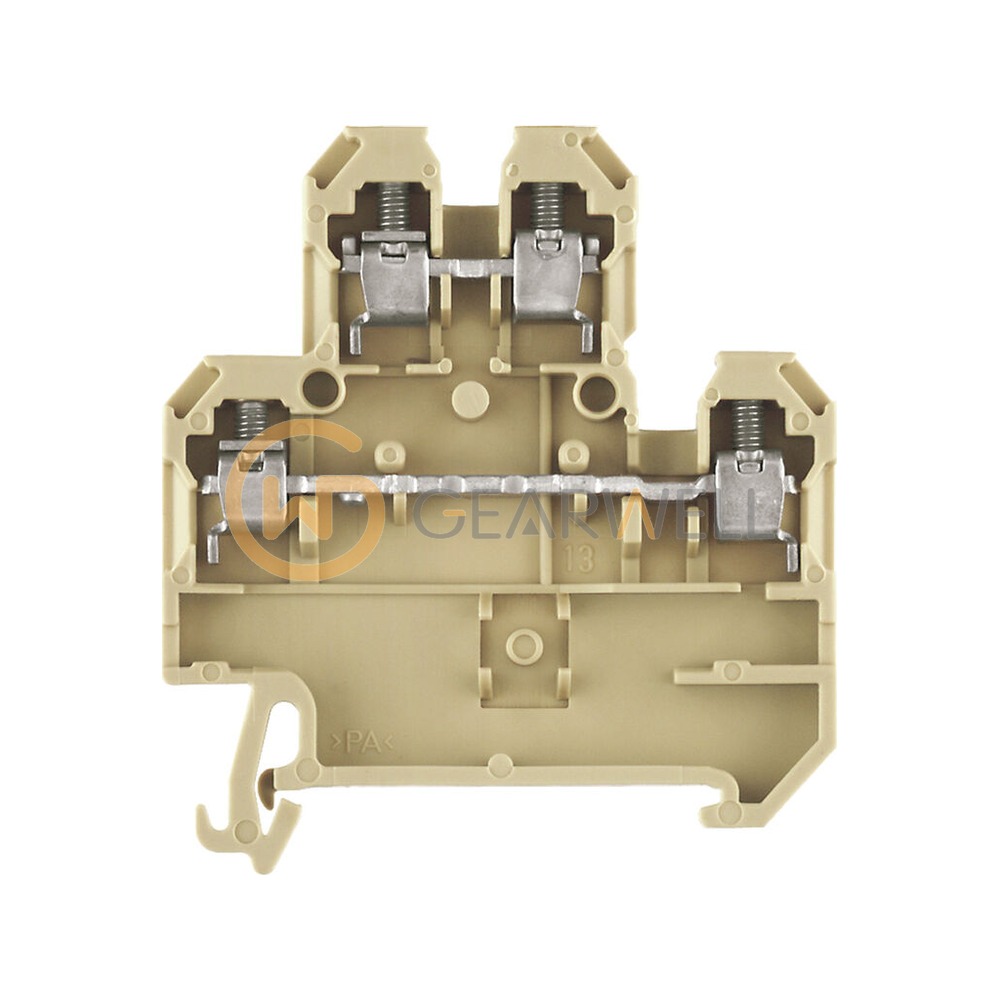

Weidmüller 0590160000 DK 4Q/35 — Multi-tier modular terminal
- Brand
- Weidmüller
- Model
- 0590160000
- GEARWELL SKU
- GWP-000011316
- Category
- Terminals, Cables & Connectors
Key specifications
- Depth
- 60.5 mm
- Width
- 6.1 mm
- Height
- 54 mm
- Rated voltage
- 500 V
- Number of levels
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmüller 0590160000 DK 4Q/35 — Multi-tier modular terminal |
|---|---|
| Brand | Weidmüller |
| Model | 0590160000 |
| Category | Terminals, Cables & Connectors |
| Depth | 60.5 mm |
| Width | 6.1 mm |
| Height | 54 mm |
| Rated voltage | 500 V |
| Number of levels | 2 |
| Rated cross-section | 4 mm² |
| Number of connections | 4 |
