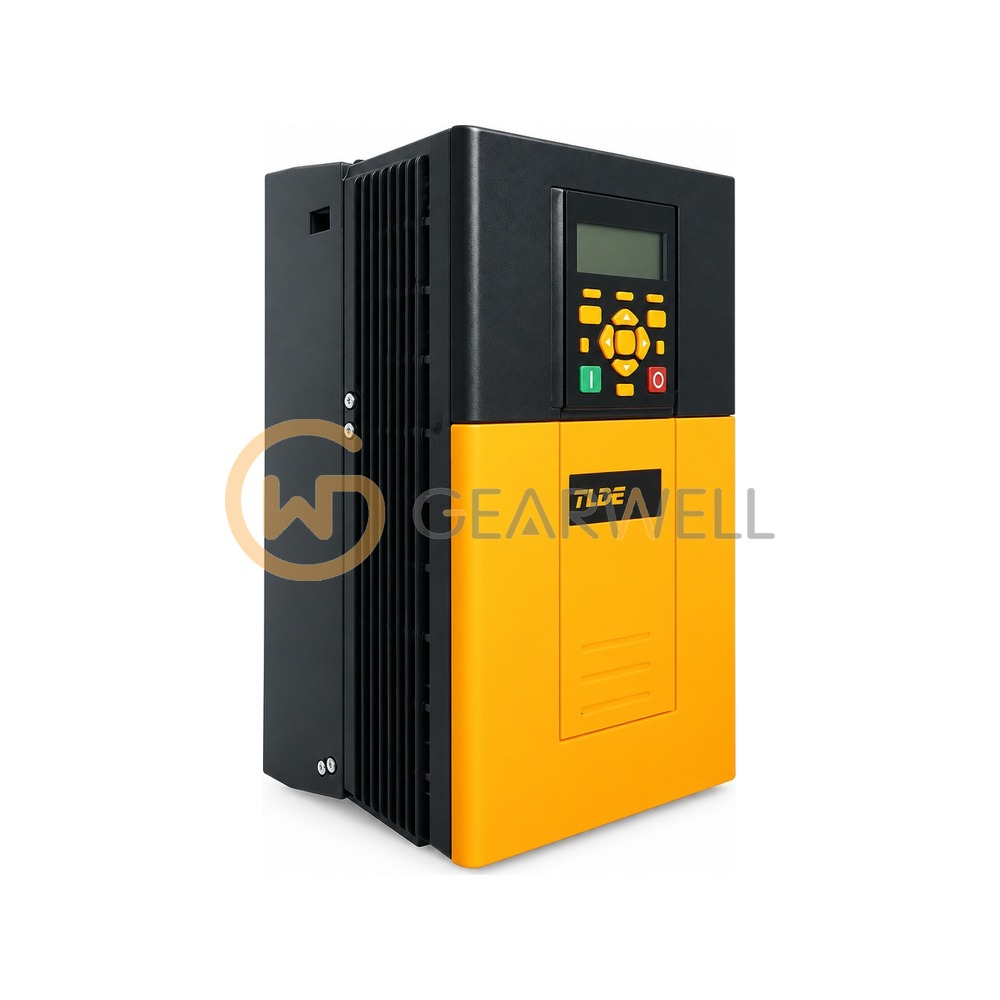

TLDE DC900P-4-500-280-20-1-0-0 DC900P Digital DC Drive
- Brand
- TLDE
- Model
- DC900P-4-500-280-20-1-0-0
- GEARWELL SKU
- GWP-000035001
- Category
- Variable Frequency Drives
Key specifications
- DC900P range
- 2Q or 4Q, standard output 20-850 A
- Armature overload
- 150 % for 30 s, 200 % for 10 s
- Quadrants (code position 1)
- 4 = four-quadrant (regenerative)
- Main supply (code position 2)
- 500 = 3-phase 100-500 V AC ±10 %, 50/60 Hz
- Communication (code position 6)
- 0 = no communication card
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TLDE DC900P-4-500-280-20-1-0-0 DC900P Digital DC Drive |
|---|---|
| Brand | TLDE |
| Model | DC900P-4-500-280-20-1-0-0 |
| Category | Variable Frequency Drives |
| DC900P range | 2Q or 4Q, standard output 20-850 A |
| Armature overload | 150 % for 30 s, 200 % for 10 s |
| Quadrants (code position 1) | 4 = four-quadrant (regenerative) |
| Main supply (code position 2) | 500 = 3-phase 100-500 V AC ±10 %, 50/60 Hz |
| Communication (code position 6) | 0 = no communication card |
| Menu language (code position 7) | 0 = Chinese menu |
| Auxiliary supply (code position 5) | 1 = single-phase 220 V AC |
| Rated field current (code position 4) | 20 A |
| Rated armature current (code position 3) | 280 A |
