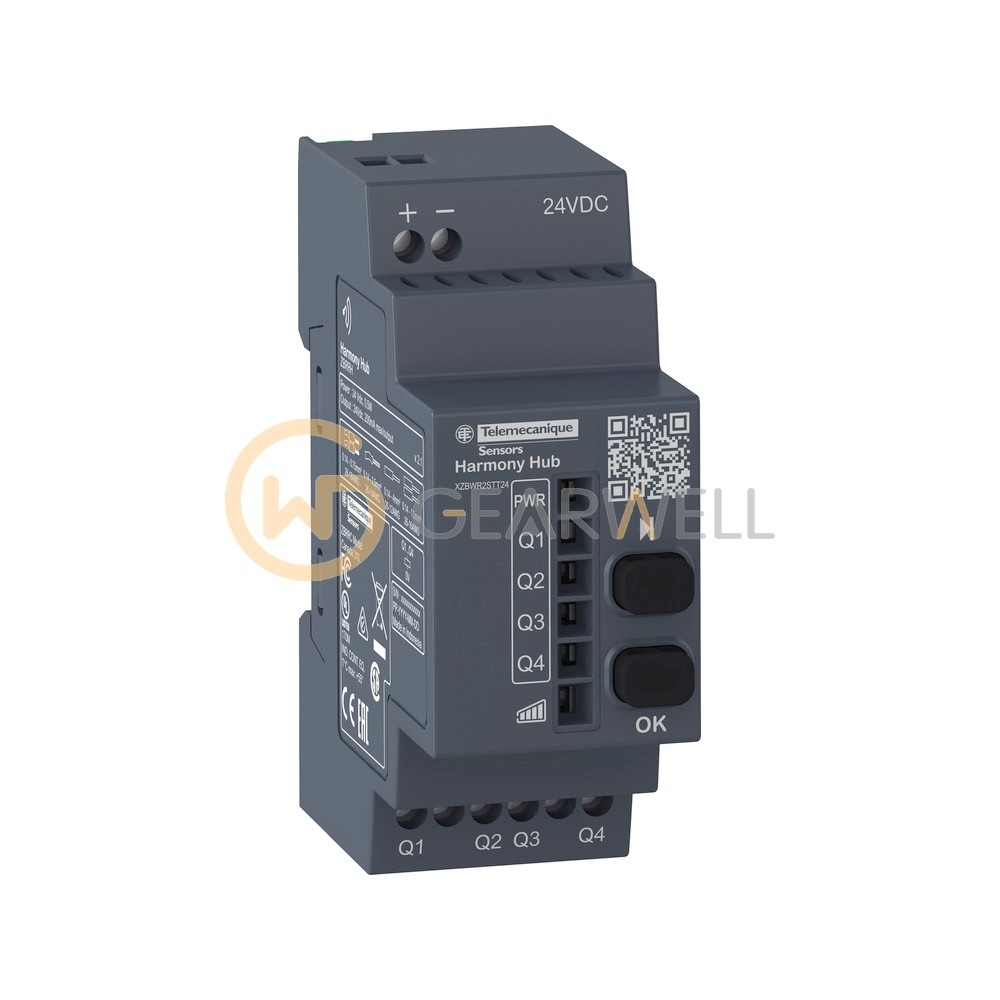

Telemecanique XZBWR2STT24 Harmony Hub Programmable Wireless Receiver
- Brand
- Telemecanique
- Model
- XZBWR2STT24
- GEARWELL SKU
- GWP-000009950
- Category
- Industrial Communication
Key specifications
- Outputs
- 4 PNP transistor
- Mounting
- 35 mm DIN rail (EN/IEC 60715) or mounting plate
- Response time
- < 30 ms after sensor change
- Number of channels
- 2 per receiver
- Rated supply voltage
- 24 V DC (-15...+20 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Telemecanique XZBWR2STT24 Harmony Hub Programmable Wireless Receiver |
|---|---|
| Brand | Telemecanique |
| Model | XZBWR2STT24 |
| Category | Industrial Communication |
| Outputs | 4 PNP transistor |
| Mounting | 35 mm DIN rail (EN/IEC 60715) or mounting plate |
| Response time | < 30 ms after sensor change |
| Number of channels | 2 per receiver |
| Rated supply voltage | 24 V DC (-15...+20 %) |
| Communication protocol | Zigbee Green Power, 2.4 GHz |
| Maximum sensing distance | 100 m free field; 25 m in metal enclosure |
| Maximum switching current | 200 mA DC |
