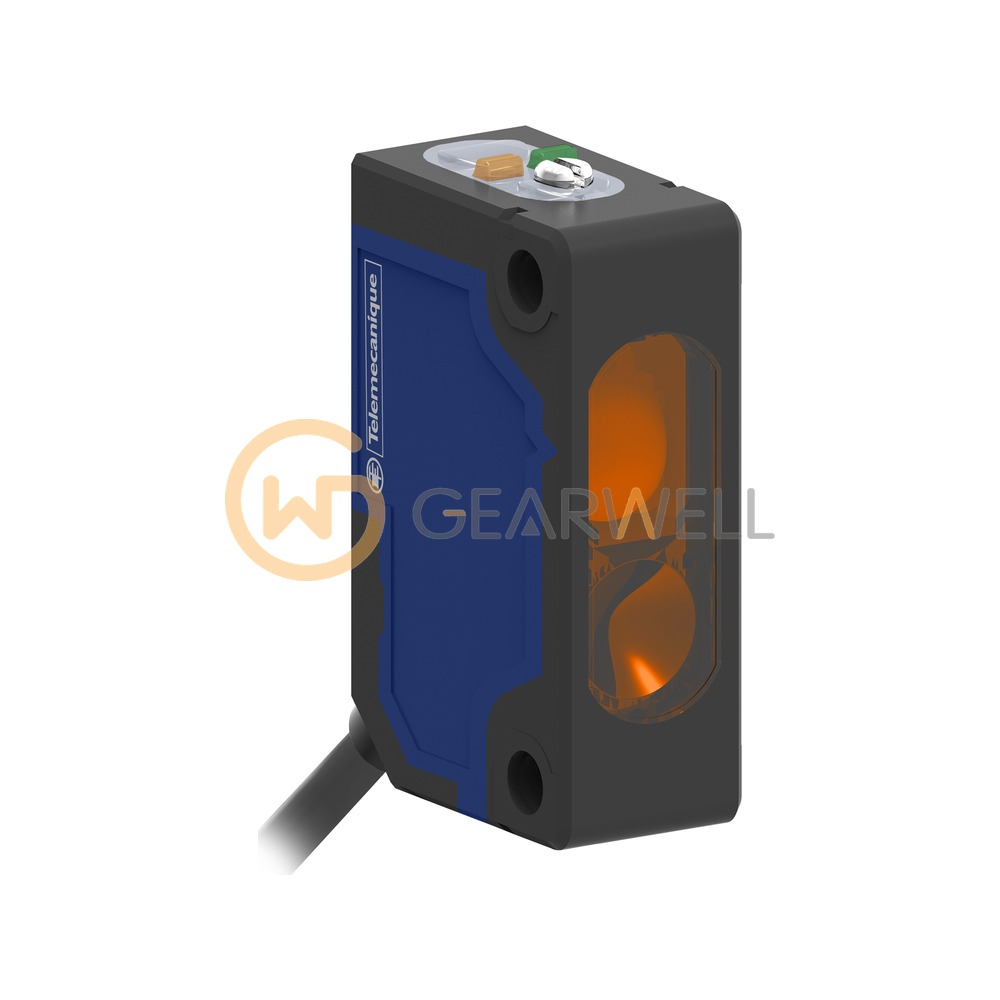

Telemecanique XUM6ANXBL2 XUM Miniature Photoelectric Sensor
- Brand
- Telemecanique
- Model
- XUM6ANXBL2
- GEARWELL SKU
- GWP-000009637
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- NPN, 1 NO or 1 NC programmable
- Detection system
- Diffuse
- Switching capacity
- <= 100 mA with overload and short-circuit protection
- Switching frequency
- <= 1000 Hz
- Dimensions (W x H x D)
- 10 x 33 x 20 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Telemecanique XUM6ANXBL2 XUM Miniature Photoelectric Sensor |
|---|---|
| Brand | Telemecanique |
| Model | XUM6ANXBL2 |
| Category | Proximity & Photoelectric Sensors |
| Output | NPN, 1 NO or 1 NC programmable |
| Detection system | Diffuse |
| Switching capacity | <= 100 mA with overload and short-circuit protection |
| Switching frequency | <= 1000 Hz |
| Dimensions (W x H x D) | 10 x 33 x 20 mm |
| Rated supply voltage | 12...24 V DC with reverse polarity protection |
| Operating temperature | -30…55 °C |
| Maximum sensing distance | 1.1 m |
