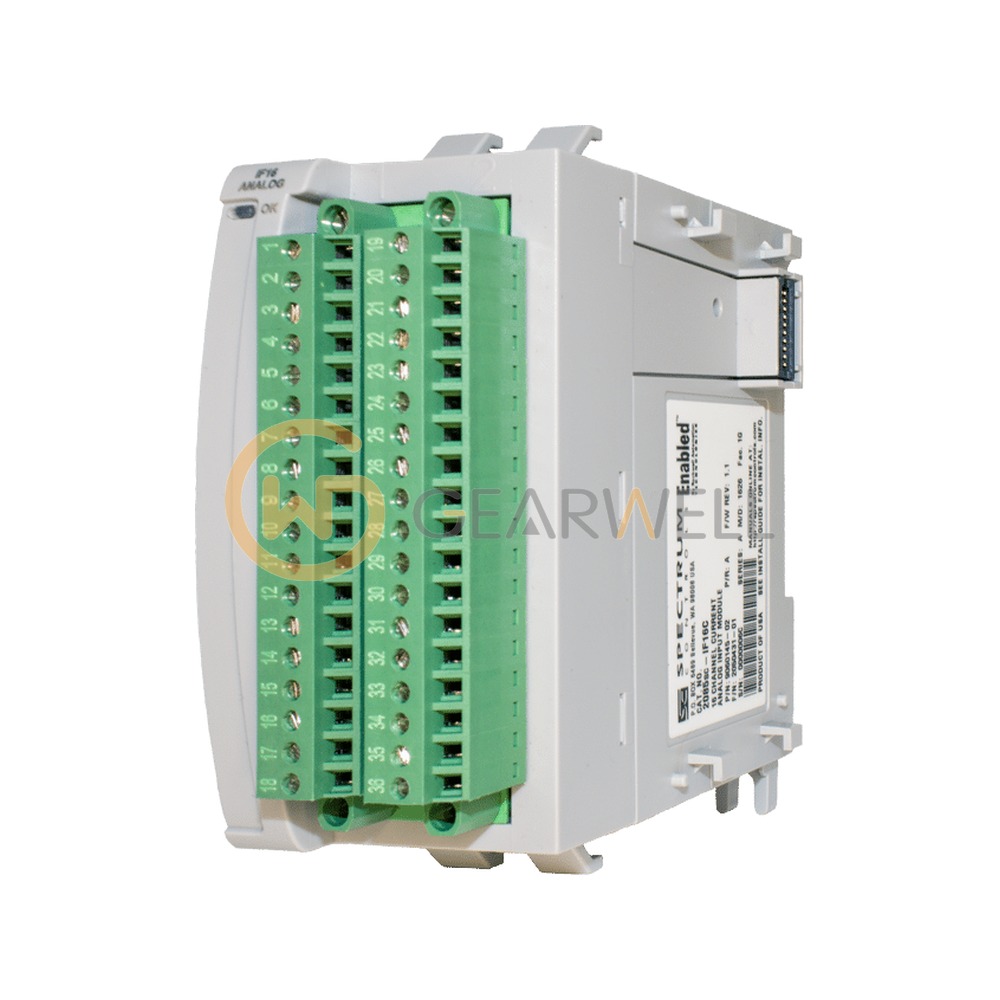

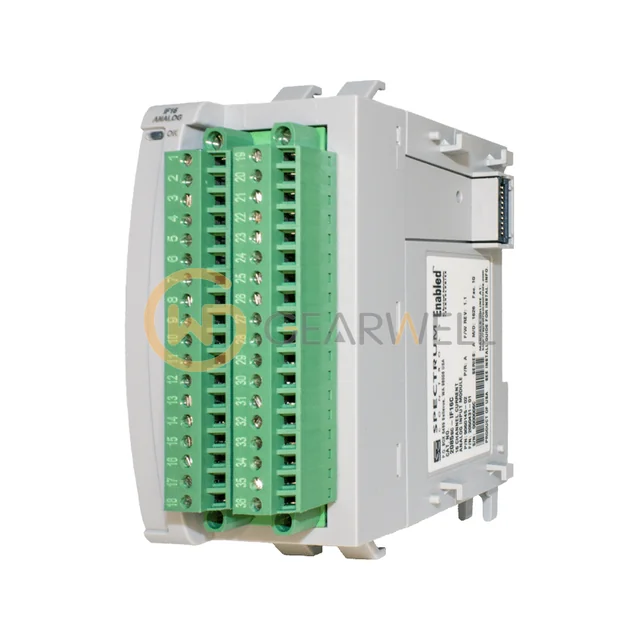

Spectrum Controls 2085sc-IF16C Micro800 16-Ch Current Input Module
- Brand
- Spectrum Controls
- Model
- 2085sc-IF16C
- GEARWELL SKU
- GWP-000012163
- Category
- PLCs & I/O
Key specifications
- Isolation
- 50 VAC working reinforced insulation, inputs to backplane
- Resolution
- 16-bit (20-bit Sigma-Delta ADC)
- Input ranges
- 0-20 mA, 4-20 mA
- Input filters
- 4 / 17 / 62 / 470 Hz
- Input channels
- 16 (differential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Spectrum Controls 2085sc-IF16C Micro800 16-Ch Current Input Module |
|---|---|
| Brand | Spectrum Controls |
| Model | 2085sc-IF16C |
| Category | PLCs & I/O |
| Isolation | 50 VAC working reinforced insulation, inputs to backplane |
| Resolution | 16-bit (20-bit Sigma-Delta ADC) |
| Input ranges | 0-20 mA, 4-20 mA |
| Input filters | 4 / 17 / 62 / 470 Hz |
| Input channels | 16 (differential) |
| Accuracy at 25 °C | ±20 µA |
| Operating temperature | -20 to 65 °C |
| Compatible controllers | Micro850, Micro870 |
