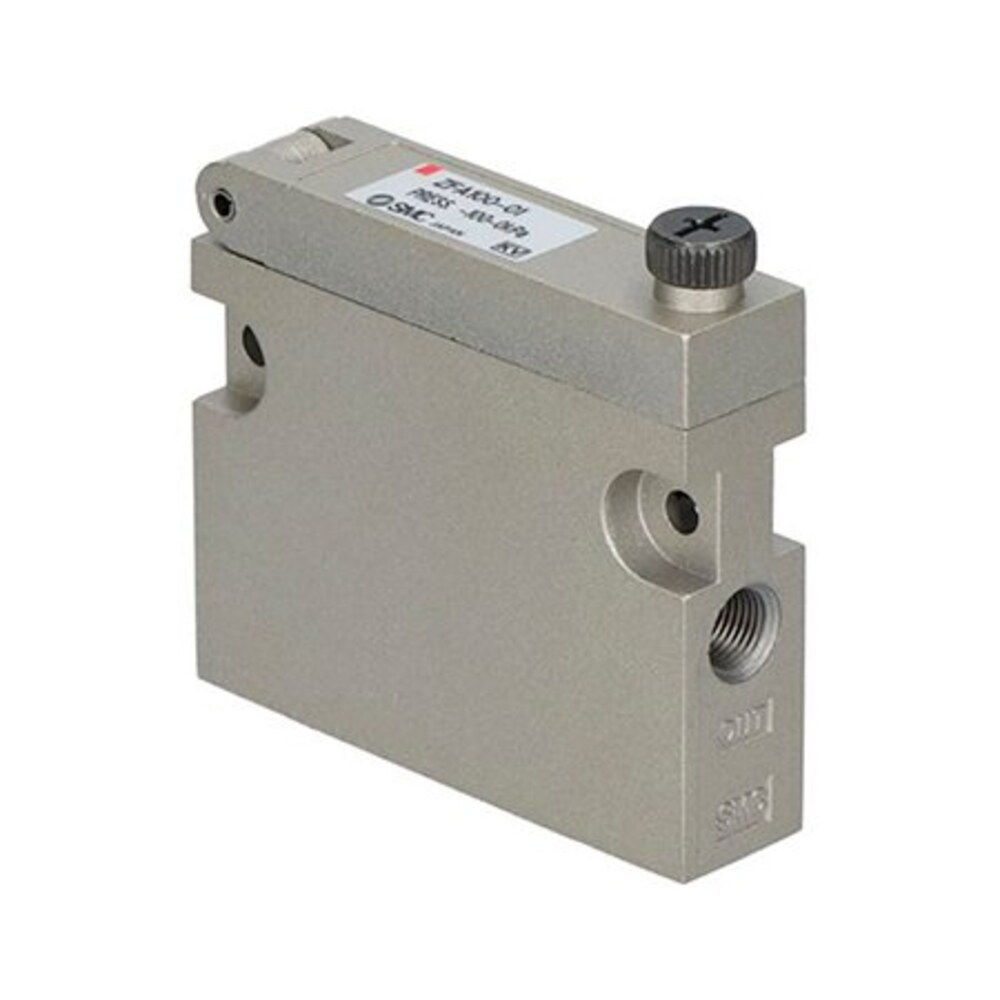

SMC ZFA100-01 Filter
- Brand
- SMC
- Model
- ZFA100-01
- GEARWELL SKU
- GWP-000003225
- Category
- Industrial Automation Parts
Key specifications
- Accessory
- None
- Bore Size
- 1/8 B
- Thread Type
- Rc
- Product description
- ZFA Series Air Suction Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC ZFA100-01 is a ZFA100 air suction filter that protects vacuum equipment from solid particles, with Rc 1/8 ports and no bracket. The cartridge element filters to 30 µm and the recommended air flow is 50 L/min (ANR). It works at –100 to 0 kPa, and the element should be replaced at a 20 kPa pressure drop. The filter weighs 0.14 kg, has an internal capacity of 30 cm3 and can be mounted in any direction or on a manifold.
Technical reference
| Product name | SMC ZFA100-01 Filter |
|---|---|
| Brand | SMC |
| Model | ZFA100-01 |
| Category | Industrial Automation Parts |
| Accessory | None |
| Bore Size | 1/8 B |
| Thread Type | Rc |
| Product description | ZFA Series Air Suction Filter |
