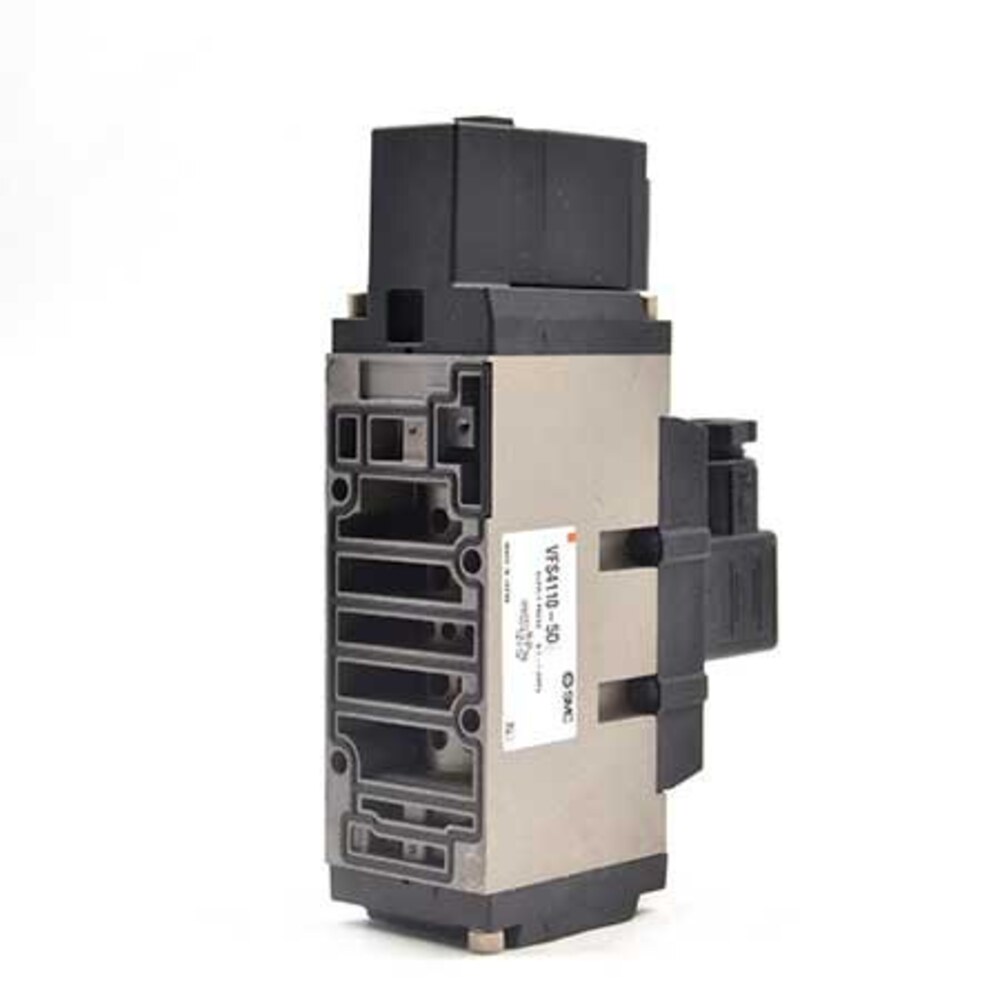

SMC VFS4110-5D Solenoid Valve
- Brand
- SMC
- Model
- VFS4110-5D
- GEARWELL SKU
- GWP-000001323
- Category
- Industrial Automation Parts
Key specifications
- Port Size
- Without Sub-plate(For manifold)
- Body Option
- Standard
- Thread Type
- Rc
- Rated Voltage
- 24 VDC
- Product description
- VFS4000 Series 5 Port Pilot Operated Solenoid Valve, Metal Seal, Non Plug-in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC VFS4110-5D is a VFS4000 series 5-port pilot operated solenoid valve with a metal seal, 2-position single solenoid, in the non plug-in type for sub-plate mounting (sub-plate not included). It has a 24 VDC coil with a DIN terminal, internal pilot and a non-locking push manual override. The valve operates on air from 0.1 to 1.0 MPa, draws 1.8 W DC, responds in 40 ms or less and handles up to 1,000 cycles per minute. It weighs 0.63 kg without a sub-plate.
Technical reference
| Product name | SMC VFS4110-5D Solenoid Valve |
|---|---|
| Brand | SMC |
| Model | VFS4110-5D |
| Category | Industrial Automation Parts |
| Port Size | Without Sub-plate(For manifold) |
| Body Option | Standard |
| Thread Type | Rc |
| Rated Voltage | 24 VDC |
| Product description | VFS4000 Series 5 Port Pilot Operated Solenoid Valve, Metal Seal, Non Plug-in |
