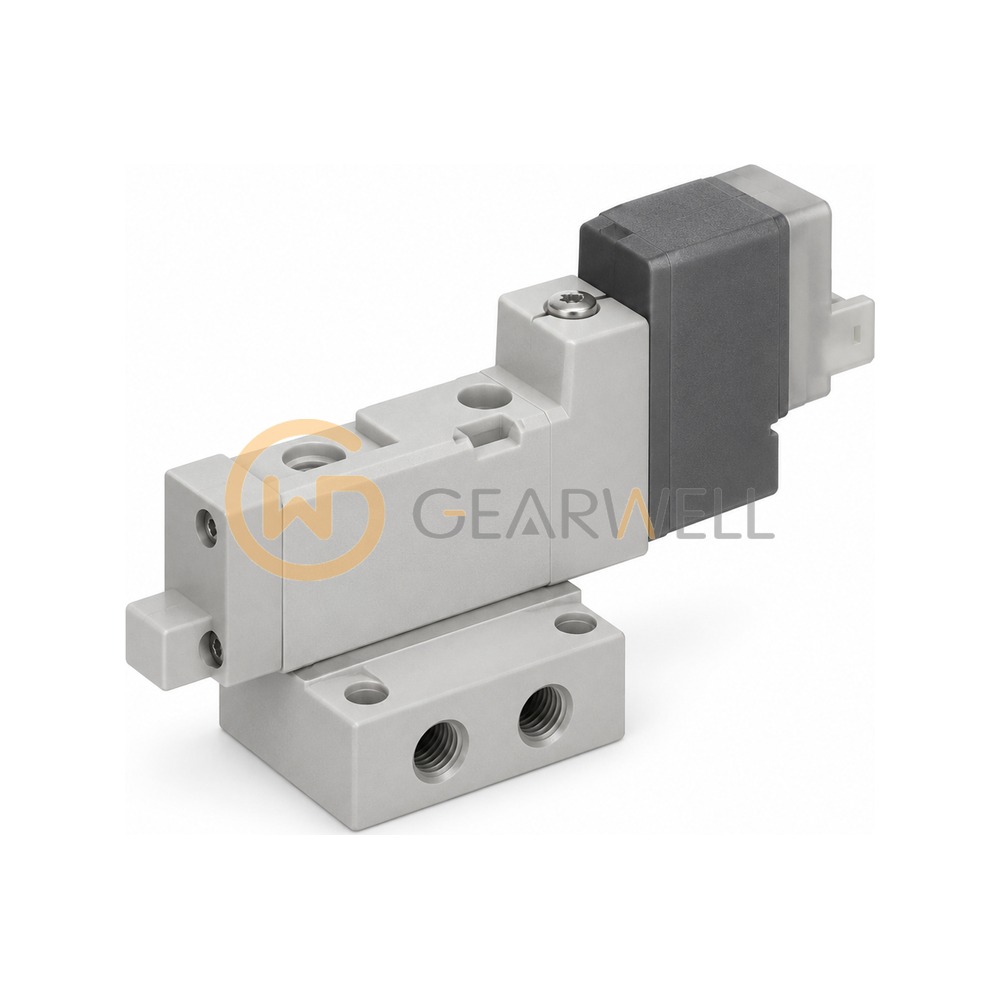

SMC SYJ3140-5LZ SYJ3000 Series 5-Port Solenoid Valve
- Brand
- SMC
- Model
- SYJ3140-5LZ
- GEARWELL SKU
- GWP-000015223
- Category
- Valves & Manifolds
Key specifications
- Series
- SYJ3000 (code 3)
- Port Size
- Without Sub-plate
- Body Option
- Pilot Valve Individual Exhaust For The Pilot Valve (code 0)
- Piping Type
- Base Mounted(5 Port) (code 4)
- Rated Voltage
- 24 VDC (code 5)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC SYJ3140-5LZ SYJ3000 Series 5-Port Solenoid Valve |
|---|---|
| Brand | SMC |
| Model | SYJ3140-5LZ |
| Category | Valves & Manifolds |
| Series | SYJ3000 (code 3) |
| Port Size | Without Sub-plate |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve (code 0) |
| Piping Type | Base Mounted(5 Port) (code 4) |
| Rated Voltage | 24 VDC (code 5) |
| Manual Override | Non-locking Push Type |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) (code L) |
| Type Of Actuation | 2 Position Single (code 1) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor (code Z) |
