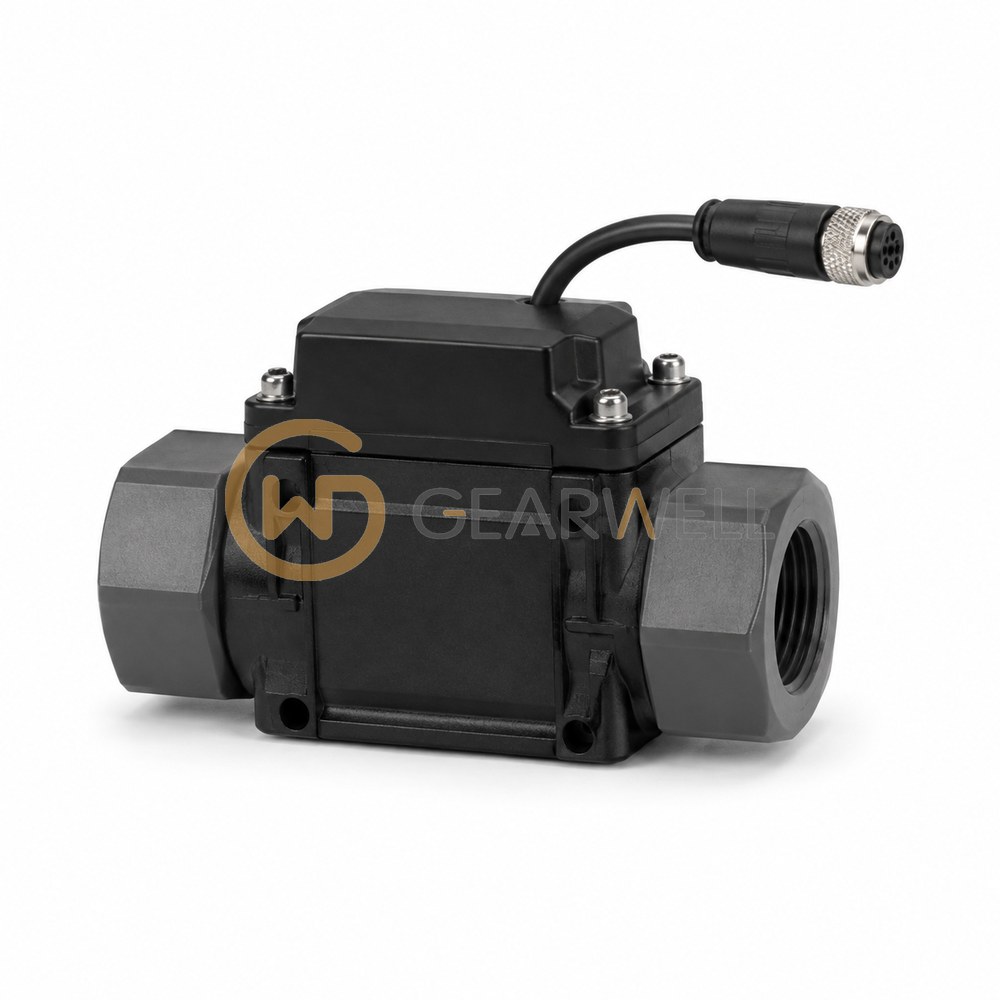

SMC PF3W520-04-1
- Brand
- SMC
- Model
- PF3W520-04-1
- GEARWELL SKU
- GWP-000003067
- Category
- Industrial Automation Parts
Key specifications
- Lead Wire
- With Lead Wire With M8 Connector (3 m)
- Port Size
- 1/2
- Thread Type
- Rc
- Product description
- PF3W Series 3-color display Digital Flow Switch For Water Remote sensor unit
- Rated Flow Range (Flow Range)
- 2 To 16 L/min
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC PF3W520-04-1 is a PF3W series flow sensor for water, in the remote sensor unit version without its own display. It measures 2 to 16 L/min of water or ethylene glycol solution by the Karman vortex method, with Rc 1/2 ports and an analog 1 to 5 V output. Accuracy is ±3% F.S. and repeatability ±2% F.S., for an operating pressure of 0 to 1 MPa and a fluid temperature of 0 to 90°C. It runs on 12 to 24 VDC at 30 mA or less, is rated IP65 and weighs 245 g without temperature sensor or flow valve.
Technical reference
| Product name | SMC PF3W520-04-1 |
|---|---|
| Brand | SMC |
| Model | PF3W520-04-1 |
| Category | Industrial Automation Parts |
| Lead Wire | With Lead Wire With M8 Connector (3 m) |
| Port Size | 1/2 |
| Thread Type | Rc |
| Product description | PF3W Series 3-color display Digital Flow Switch For Water Remote sensor unit |
| Rated Flow Range (Flow Range) | 2 To 16 L/min |
| Output Specification/Temperature Sensor | OUT1 Flow Rate:Analog 1 To 5 V;OUT2 Temperature:-;Without Temperature Sensor |
