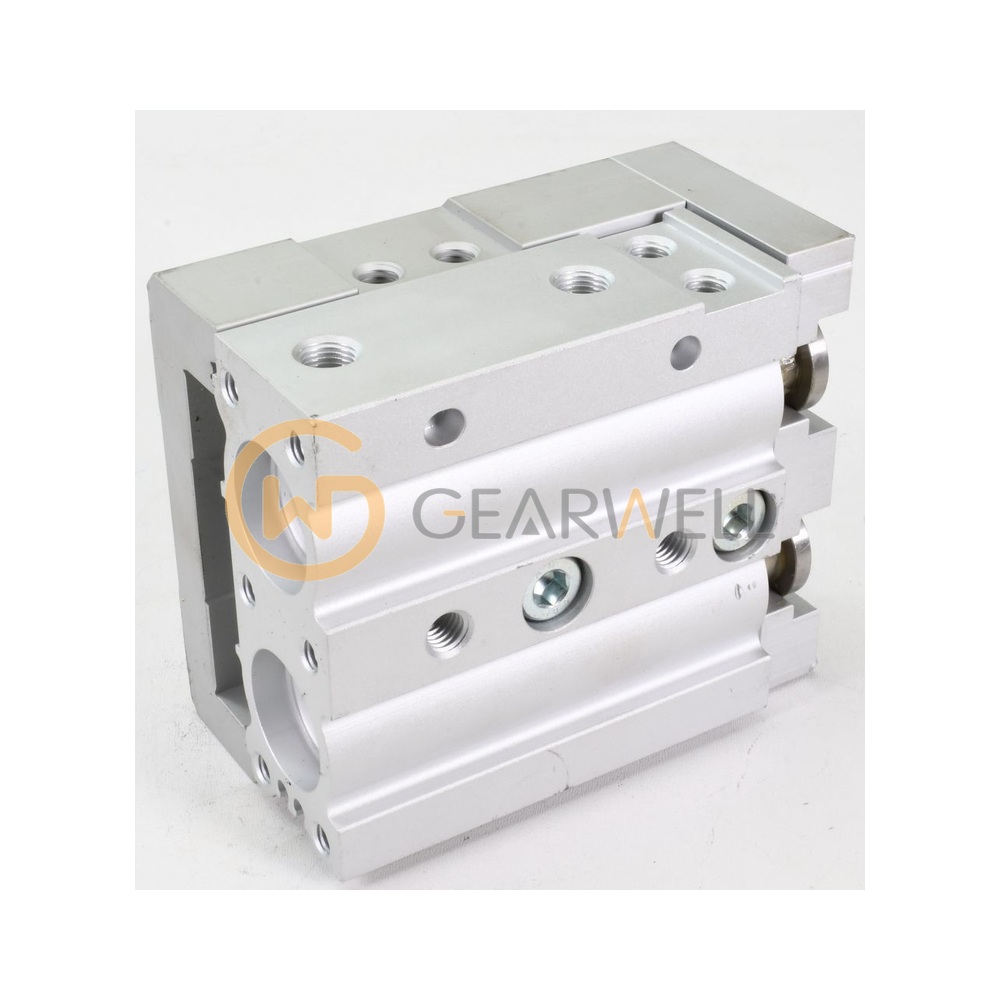

SMC MXS25-10 Air Slide Table

Product overview

The SMC MXS25-10 is an MXS series air slide table with a 25 mm bore and a 10 mm stroke, combining a work table and a dual-rod double-acting cylinder in one unit. This standard version has Rc 1/8 ports, no stroke adjuster, rubber bumpers and a built-in magnet for auto switches (none supplied). It operates from 0.15 to 0.7 MPa at average speeds of 50 to 500 mm/s and gives a theoretical output of 491 N extending at 0.5 MPa. It weighs 1660 g.
