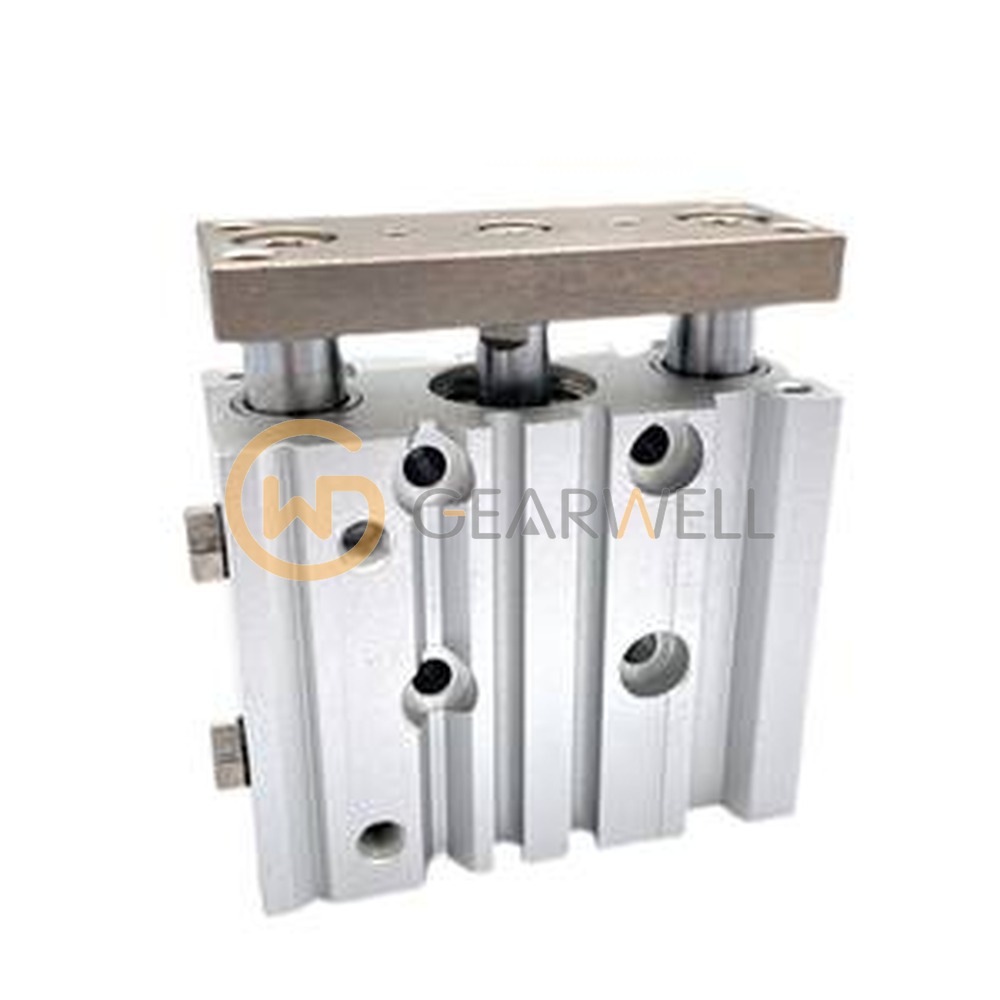

SMC MGPM40-125Z Compact guided cylinder

Product overview

The SMC MGPM40-125Z is an MGPM compact guide cylinder (MGP-Z series) with slide bearings, a 40 mm bore and a 125 mm stroke. The double-acting cylinder has Rc port threads, a built-in magnet for auto switches (none supplied) and rubber bumpers on both ends. It works from 0.1 MPa up to 1.0 MPa (proof pressure 1.5 MPa) at piston speeds of 50 to 500 mm/s, and the ambient and fluid temperature range is −10 to 60°C. No lubrication is required.
