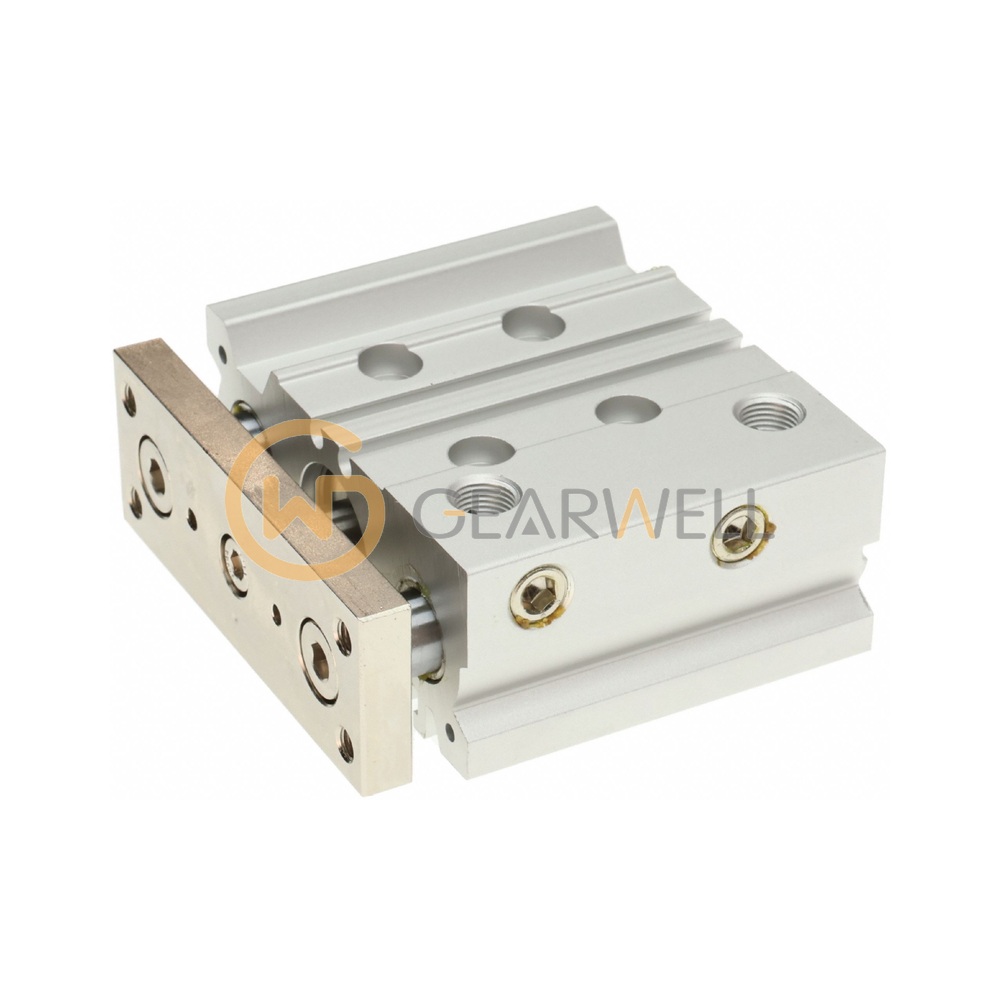

SMC MGPM20-25Z Compact Guided Cylinder
- Brand
- SMC
- Model
- MGPM20-25Z
- GEARWELL SKU
- GWP-000006865
- Category
- Cylinders & Actuators
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC MGPM20-25Z is an MGPM compact guide cylinder (MGP-Z series) with slide bearings, a 20 mm bore and a 25 mm stroke. The 25 mm stroke is an intermediate stroke for this bore, made by fitting spacers in a standard stroke cylinder. The double-acting cylinder has Rc port threads, a built-in magnet for auto switches (none supplied) and rubber bumpers on both ends. It works from 0.1 MPa up to 1.0 MPa (proof pressure 1.5 MPa) at piston speeds of 50 to 500 mm/s, with no lubrication required.
Technical reference
| Product name | SMC MGPM20-25Z Compact Guided Cylinder |
|---|---|
| Brand | SMC |
| Model | MGPM20-25Z |
| Category | Cylinders & Actuators |
