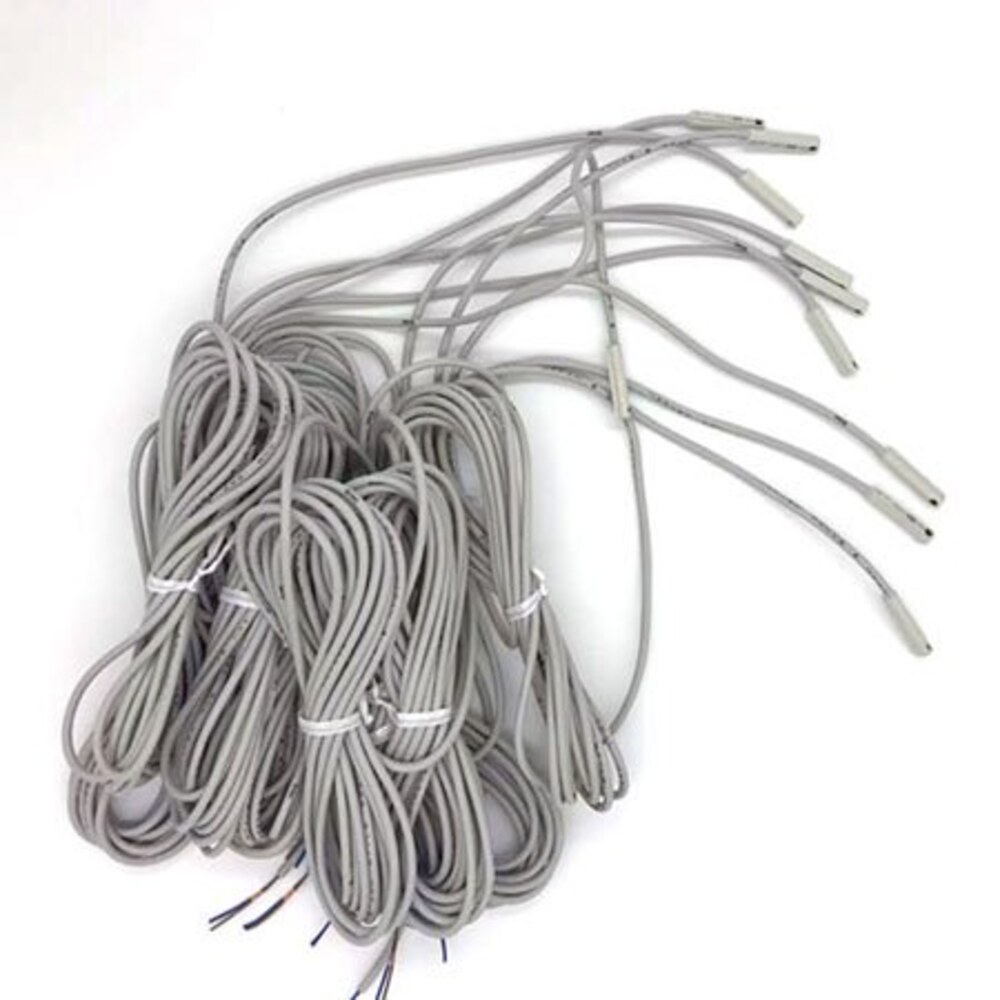

SMC M9PWL Electronic Auto Switch D
- Brand
- SMC
- Model
- M9PWL
- GEARWELL SKU
- GWP-000004395
- Category
- Industrial Automation Parts
Key specifications
- Wiring
- 3-wire PNP
- Indicator
- 2-color indicator with indicator light
- Connection
- Grommet
- Product type
- Solid-state auto switch
- Voltage range
- 4.5 to 28 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC D-M9PWL is a D-M9PW solid state auto switch with a PNP 3-wire output and a 2-color diagnostic indicator: red at the operating position and green at the optimum position. It has an in-line grommet entry and a 3 m lead wire. It runs on 5/12/24 VDC (4.5 to 28 VDC) with 10 mA or less current consumption and switches up to 40 mA. Operating time is 1 ms or less, the enclosure is IP67 and the ambient range is -10 to 60 °C.
Technical reference
| Product name | SMC M9PWL Electronic Auto Switch D |
|---|---|
| Brand | SMC |
| Model | M9PWL |
| Category | Industrial Automation Parts |
| Wiring | 3-wire PNP |
| Indicator | 2-color indicator with indicator light |
| Connection | Grommet |
| Product type | Solid-state auto switch |
| Voltage range | 4.5 to 28 V DC |
| Applied voltage | 5, 12 or 24 V DC |
| Cable direction | In-line |
| Lead wire length | 3 m |
