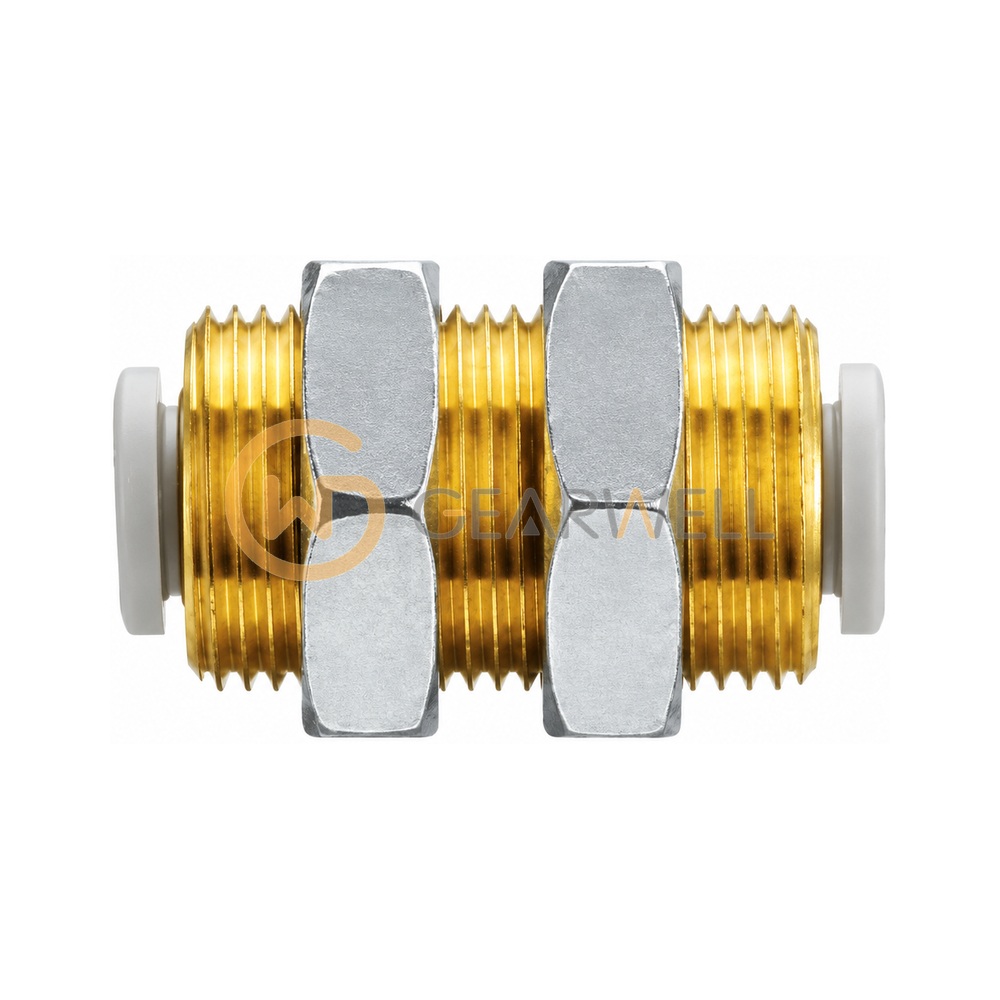

SMC KQ2E06-00A One-touch Bulkhead Union
- Brand
- SMC
- Model
- KQ2E06-00A
- GEARWELL SKU
- GWP-000006842
- Category
- Fittings, Tubing & Vacuum
Key specifications
- Material
- brass
- Tube outside diameter
- 6 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC KQ2E06-00A is a KQ2 series one-touch bulkhead union that joins two ø6 mm tubes through a panel. The panel thread is M14 x 1 with 17 mm across flats, it needs a 15 mm mounting hole and it fits plates of 11 mm or less. The thread material is brass. It takes nylon, soft nylon, urethane, FEP and PFA tube for air or water from -100 kPa to 1 MPa, with a proof pressure of 3 MPa, and weighs 28 g.
Technical reference
| Product name | SMC KQ2E06-00A One-touch Bulkhead Union |
|---|---|
| Brand | SMC |
| Model | KQ2E06-00A |
| Category | Fittings, Tubing & Vacuum |
| Material | brass |
| Tube outside diameter | 6 mm |
