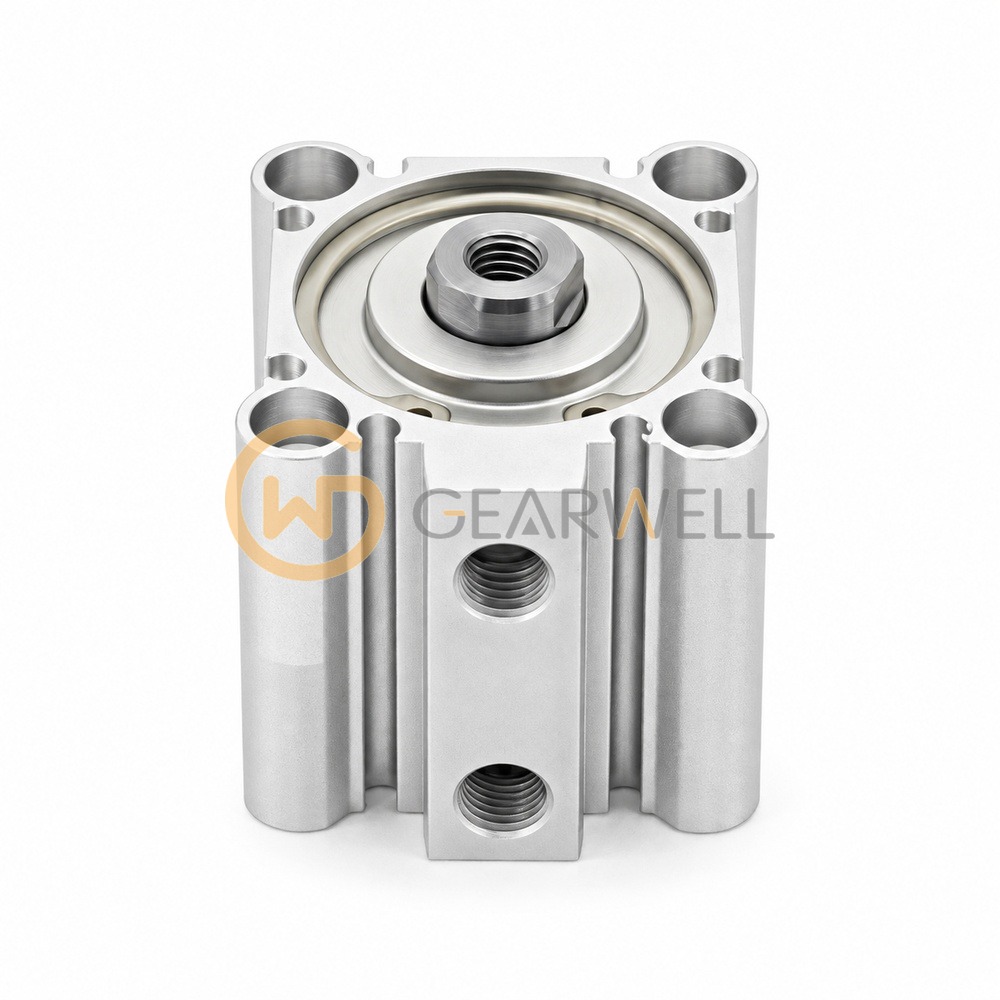

SMC CQ2B32-30D Compact Pneumatic Cylinder
- Brand
- SMC
- Model
- CQ2B32-30D
- GEARWELL SKU
- GWP-000006360
- Category
- Cylinders & Actuators
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC CQ2B32-30D is a CQ2 series compact air cylinder with a 32 mm bore and a 30 mm stroke, double acting with a single rod. The body is the through-hole (standard) mounting style, has Rc port threads and a female-threaded rod end, and has no built-in magnet, so auto switches cannot be fitted. It runs on air from 0.05 MPa up to a maximum operating pressure of 1.0 MPa (proof pressure 1.5 MPa) at piston speeds of 50 to 500 mm/s. No lubrication is required.
Technical reference
| Product name | SMC CQ2B32-30D Compact Pneumatic Cylinder |
|---|---|
| Brand | SMC |
| Model | CQ2B32-30D |
| Category | Cylinders & Actuators |
