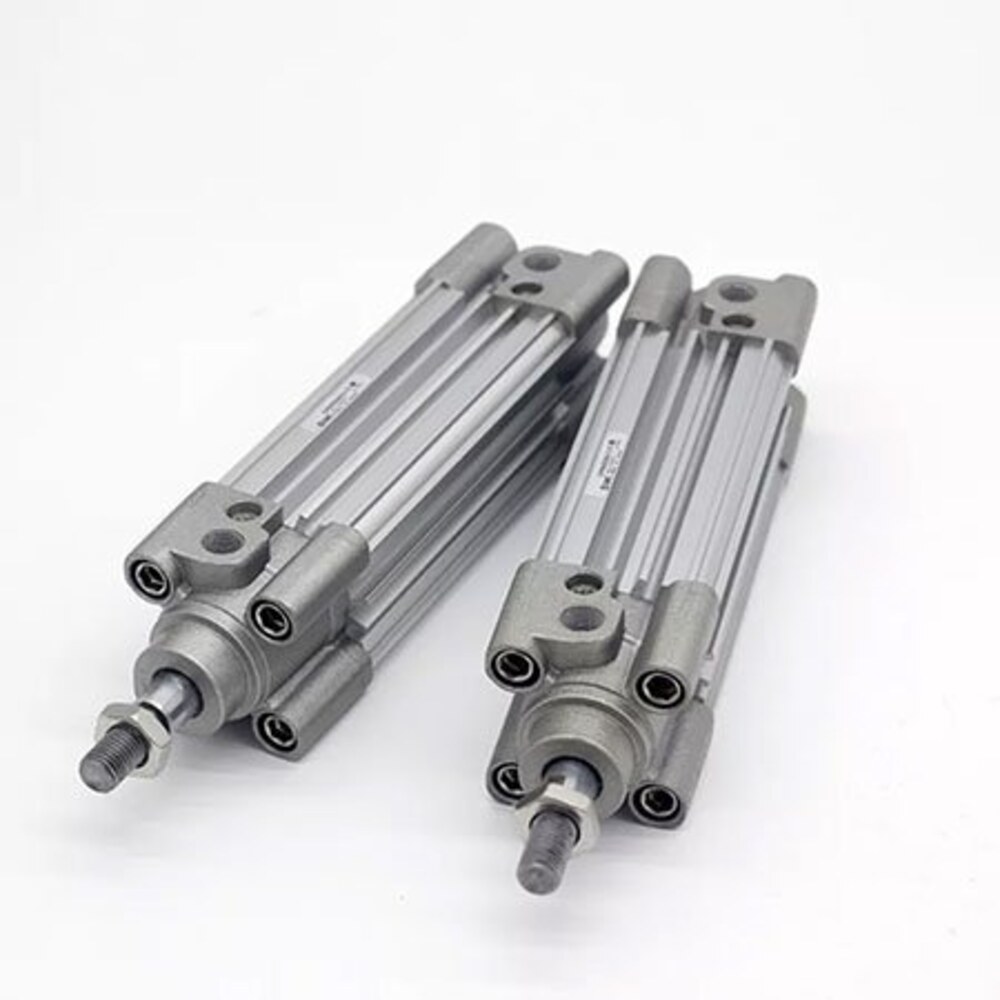

SMC CP96SDB40-25C Cylinder
- Brand
- SMC
- Model
- CP96SDB40-25C
- GEARWELL SKU
- GWP-000000264
- Category
- Industrial Automation Parts
Key specifications
- Cushion
- Air Cushion On Both Ends+Bumper Cushion
- Rod Boot
- Without Rod Boot
- Bore Size
- Bore Size 40 mm
- Auto Switch
- Without Auto Switch
- Mounting Style
- Basic
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC CP96SDB40-25C is a CP96 series ISO 15552 profile air cylinder, double acting with a single rod, in 40 mm bore and 25 mm stroke. It has the basic mounting style, air cushions on both ends plus bumpers, G 1/4 ports and a built-in magnet for auto switches, which are ordered separately; there is no rod boot. The working range is 0.05 to 1.0 MPa with a proof pressure of 1.5 MPa, and the piston speed range is 50 to 1000 mm/s. It runs without lubrication.
Technical reference
| Product name | SMC CP96SDB40-25C Cylinder |
|---|---|
| Brand | SMC |
| Model | CP96SDB40-25C |
| Category | Industrial Automation Parts |
| Cushion | Air Cushion On Both Ends+Bumper Cushion |
| Rod Boot | Without Rod Boot |
| Bore Size | Bore Size 40 mm |
| Auto Switch | Without Auto Switch |
| Mounting Style | Basic |
| Cylinder Stroke | Standard Stroke 25 mm |
| Product description | CP96 Series ISO Standard (15552) Air Cylinder:Standard Type Double Acting,Single Rod |
