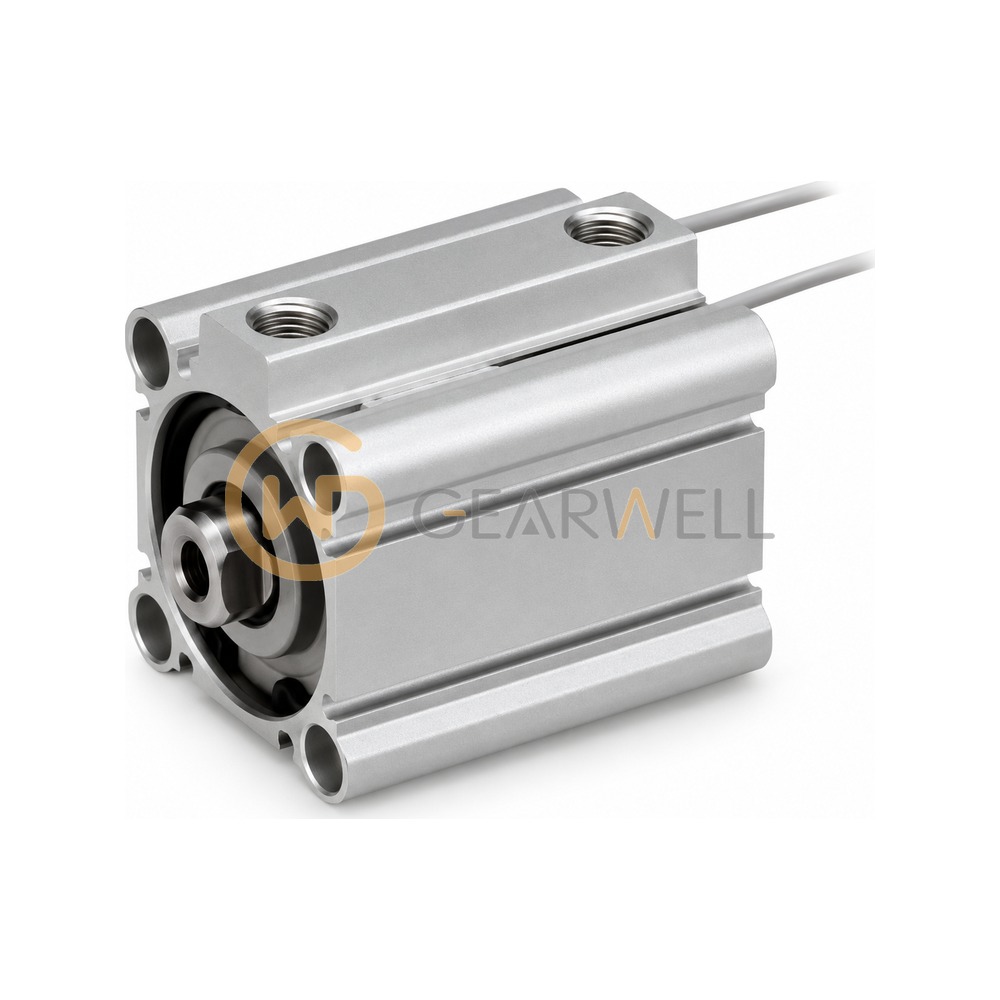

SMC CDQ2B50-40DMZ CQ2-Z Series Compact Cylinder
- Brand
- SMC
- Model
- CDQ2B50-40DMZ
- GEARWELL SKU
- GWP-000015589
- Category
- Cylinders & Actuators
Key specifications
- Type
- Pneumatic
- Bore Size
- Bore Size 50 mm (code 50)
- Body Option
- Rod End Male Thread (code M)
- Mounting Style
- Through-hole (Standard) (code B)
- Built-in Magnet
- Built-in Magnet (code D)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC CDQ2B50-40DMZ CQ2-Z Series Compact Cylinder |
|---|---|
| Brand | SMC |
| Model | CDQ2B50-40DMZ |
| Category | Cylinders & Actuators |
| Type | Pneumatic |
| Bore Size | Bore Size 50 mm (code 50) |
| Body Option | Rod End Male Thread (code M) |
| Mounting Style | Through-hole (Standard) (code B) |
| Built-in Magnet | Built-in Magnet (code D) |
| Cylinder Stroke | Standard Stroke 40 mm (code 40) |
| Port Thread Type | Rc/M Thread |
| Auto Switch Mounting Groove | Φ12-Φ25 2 Sides/Φ32-Φ100 4 Sides (code Z) |
