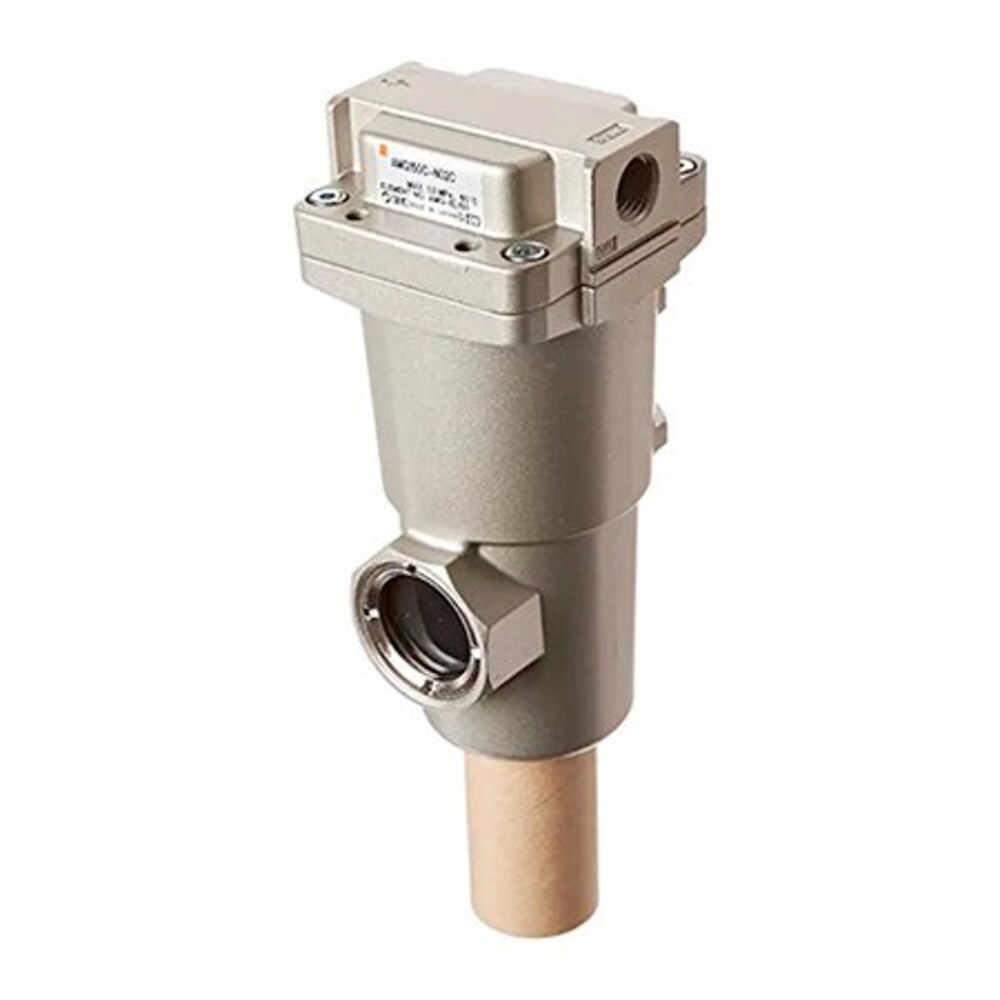

SMC AMG150C-01 Water Separator
- Brand
- SMC
- Model
- AMG150C-01
- GEARWELL SKU
- GWP-000004316
- Category
- Industrial Automation Parts
Key specifications
- Size
- 150
- Port Size
- 1/8
- Thread Type
- Rc
- Rubber Material
- Standard
- Product description
- AMG Series Water Separator Size:150～550
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC AMG150C-01 is an AMG series water separator in body size 150C with Rc 1/8 ports and a manual drain cock. It removes water droplets from compressed air with a 99% water removal rate, though it does not remove moisture vapour. The rated flow is 300 L/min (ANR) at 0.7 MPa, the operating range is 0.05 to 1.0 MPa and the proof pressure is 1.5 MPa, for 5 to 60°C. It weighs 0.38 kg, and the element is replaced after 2 years or when the pressure drop reaches 0.1 MPa.
Technical reference
| Product name | SMC AMG150C-01 Water Separator |
|---|---|
| Brand | SMC |
| Model | AMG150C-01 |
| Category | Industrial Automation Parts |
| Size | 150 |
| Port Size | 1/8 |
| Thread Type | Rc |
| Rubber Material | Standard |
| Product description | AMG Series Water Separator Size:150～550 |
