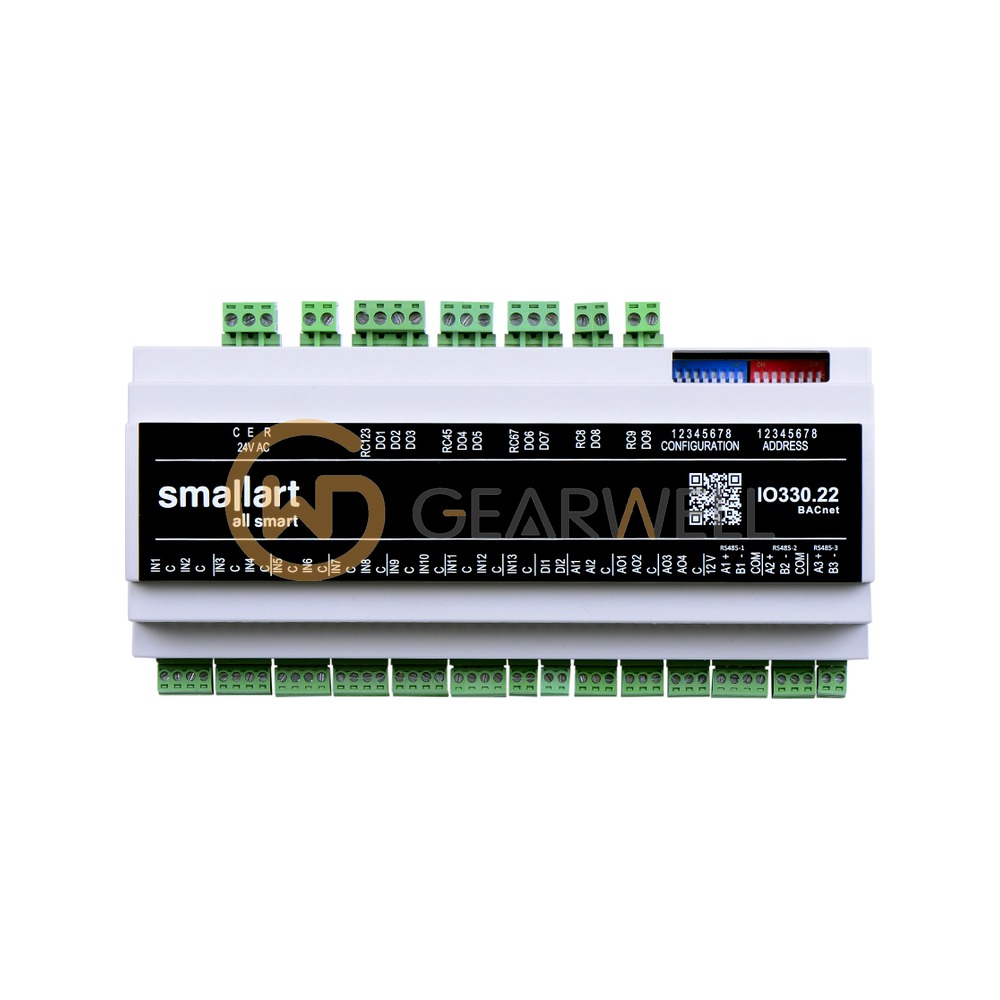

Smallart IO330.22.DR2 IO330 Series BACnet I/O Expansion Module
- Brand
- Smallart
- Model
- IO330.22.DR2
- GEARWELL SKU
- GWP-000012166
- Category
- PLCs & I/O
Key specifications
- Enclosure
- DIN-rail, IP20, 212 x 59 x 115 mm
- Communication
- BACnet MS/TP (RS-485), optional Modbus
- Analog outputs
- 4 x 0-10 V
- Digital inputs
- 2
- Supply voltage
- 24 V AC +10/-15%
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Smallart IO330.22.DR2 IO330 Series BACnet I/O Expansion Module |
|---|---|
| Brand | Smallart |
| Model | IO330.22.DR2 |
| Category | PLCs & I/O |
| Enclosure | DIN-rail, IP20, 212 x 59 x 115 mm |
| Communication | BACnet MS/TP (RS-485), optional Modbus |
| Analog outputs | 4 x 0-10 V |
| Digital inputs | 2 |
| Supply voltage | 24 V AC +10/-15% |
| Code suffix "DR2" | as collected; not listed in the official model-number table for IO330.22 (DR2 suffix exists for IO330.42.DR2) |
| Digital outputs | 9 x 10 A relay |
| Power consumption | 6.0 VA |
| Active analog inputs | 2 x 0-10 V |
| Passive analog inputs | 13 (NTC10K or dry contact) |
