Siemens 6SL3210-5FE11-0UF0 SINAMICS V90 Servo Drive
- Brand
- Siemens
- Model
- 6SL3210-5FE11-0UF0
- GEARWELL SKU
- GWP-000010394
- Category
- Servo Systems
Key specifications
- Fieldbus
- PROFINET
- Frame size
- A
- Motor power
- 0.75/1.0 kW
- Input current
- 3.8 A
- Input voltage
- 3 AC 380-480 V -15%/+10%, 45-66 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

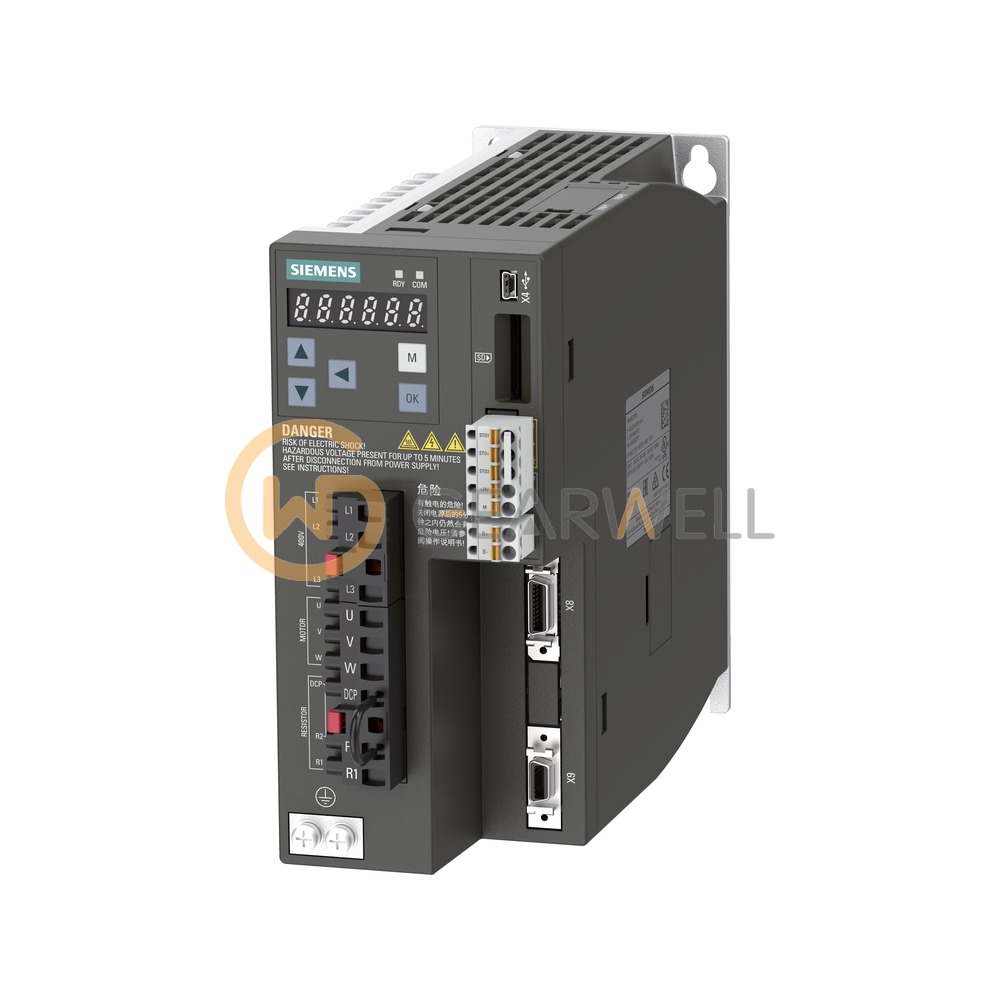

The Siemens 6SL3210-5FE11-0UF0 is a SINAMICS V90 servo drive for a 380…480 V three-phase supply and motors up to 1 kW. It delivers a rated output current of 3 A and a maximum of 9 A, in frame size FSA with natural cooling, measuring 80 x 180 x 200 mm (W x H x D) and weighing about 2.09 kg. It is the PROFINET (PN) version, with a PROFINET RT/IRT interface on two RJ45 ports, 4 digital inputs (NPN/PNP) and 2 digital outputs (NPN/PNP). It also has a mini USB port, a standard SD card slot and Safe Torque Off (STO) via terminal to SIL 2.
Technical reference
| Product name | Siemens 6SL3210-5FE11-0UF0 SINAMICS V90 Servo Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5FE11-0UF0 |
| Category | Servo Systems |
| Fieldbus | PROFINET |
| Frame size | A |
| Motor power | 0.75/1.0 kW |
| Input current | 3.8 A |
| Input voltage | 3 AC 380-480 V -15%/+10%, 45-66 Hz |
| Output current | 3.0 A |
| Output frequency | 0-330 Hz |
| Degree of protection | IP20 |
