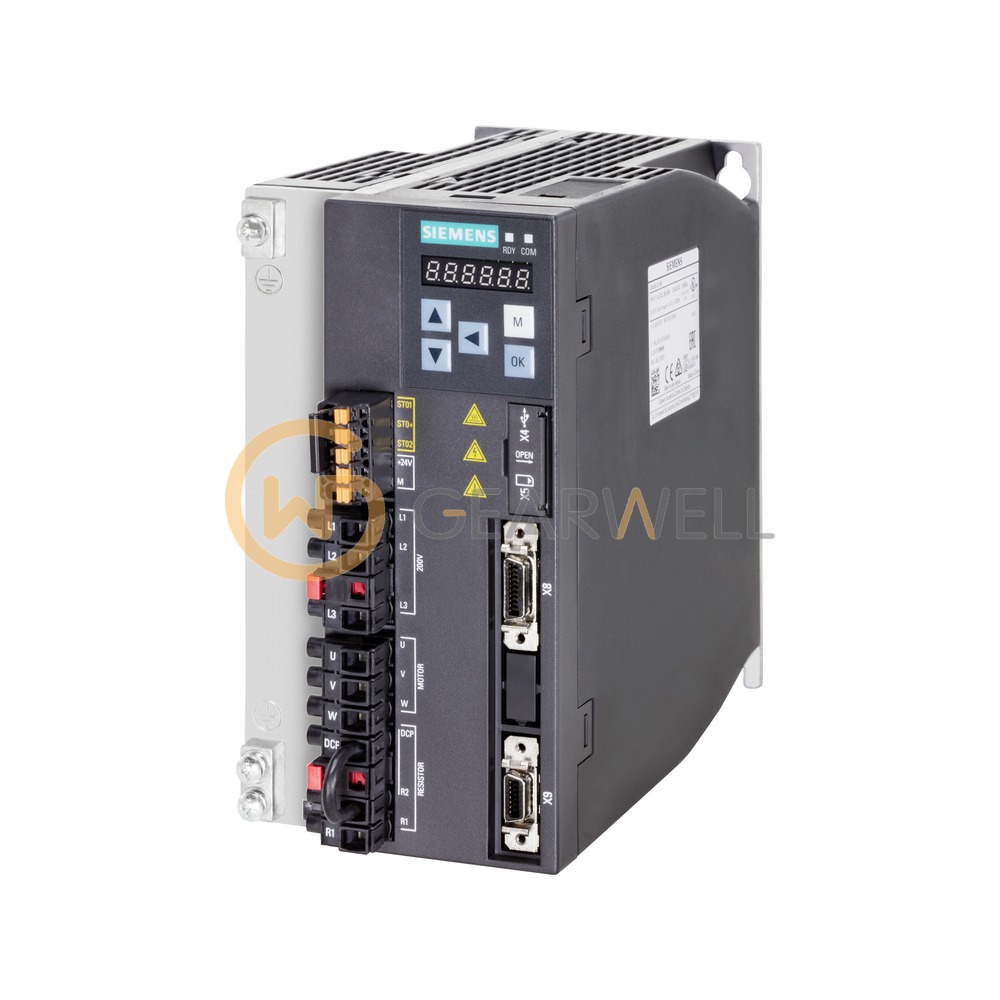

Siemens 6SL3210-5FB11-5UF0 SINAMICS V90 Servo Drive
- Brand
- Siemens
- Model
- 6SL3210-5FB11-5UF0
- GEARWELL SKU
- GWP-000010989
- Category
- Servo Systems
Key specifications
- Fieldbus
- PROFINET
- Frame size
- D
- Motor power
- 1.5 kW
- Input current
- 11.0 A
- Input voltage
- 200-240 V 3 AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5FB11-5UF0 is a SINAMICS V90 servo drive for a 200…240 V three-phase supply and motors up to 1.5 kW. It delivers a rated output current of 10.6 A and a maximum of 31.8 A, in frame size FSD with fan cooling, measuring 95 x 170 x 195 mm (W x H x D) and weighing about 2.49 kg. It is the PROFINET (PN) version, with a PROFINET RT/IRT interface on two RJ45 ports, 4 digital inputs (NPN/PNP) and 2 digital outputs (NPN/PNP). It also has a mini USB port, a micro SD card slot and Safe Torque Off (STO) via terminal to SIL 2.
Technical reference
| Product name | Siemens 6SL3210-5FB11-5UF0 SINAMICS V90 Servo Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5FB11-5UF0 |
| Category | Servo Systems |
| Fieldbus | PROFINET |
| Frame size | D |
| Motor power | 1.5 kW |
| Input current | 11.0 A |
| Input voltage | 200-240 V 3 AC |
| Output current | 10.6 A |
| Degree of protection | IP20 |
