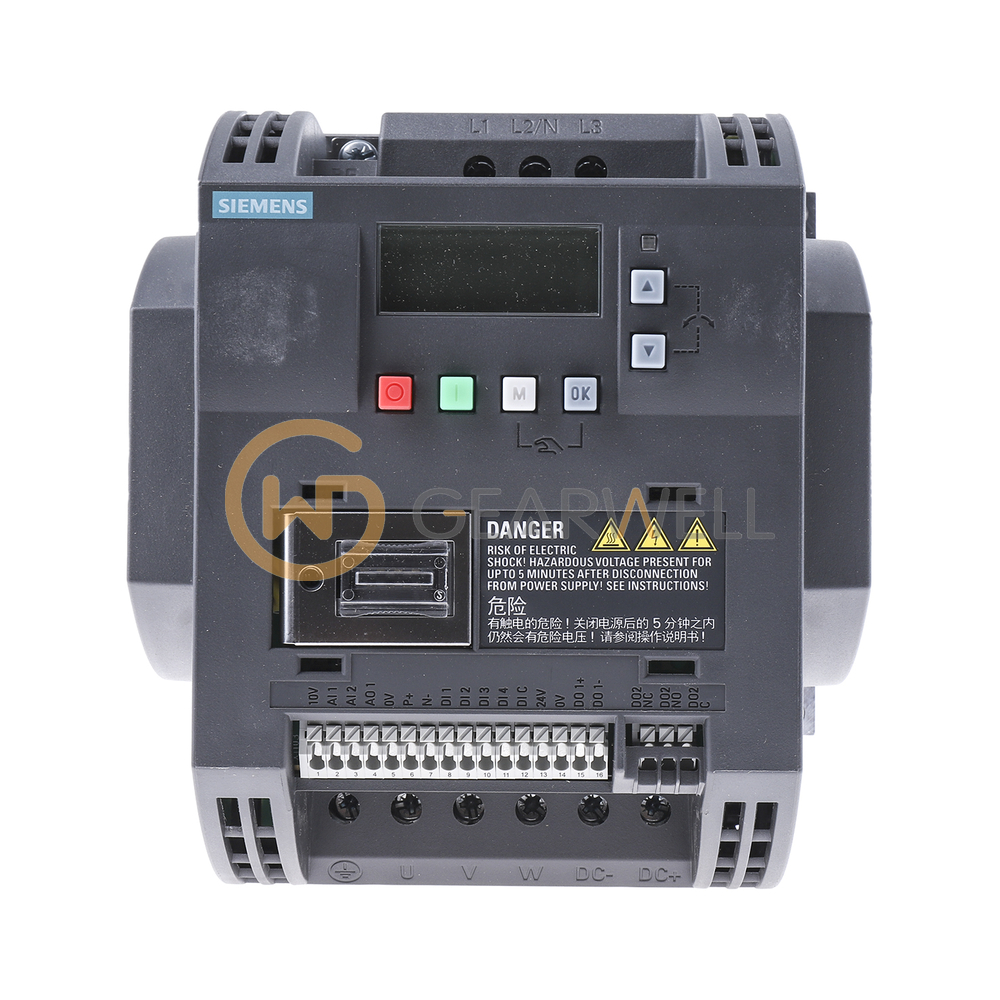

Siemens 6SL3210-5BE24-0UV0 SINAMICS V20 AC Drive
- Brand
- Siemens
- Model
- 6SL3210-5BE24-0UV0
- GEARWELL SKU
- GWP-000006905
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- FSB
- Rated power
- 4 kW
- Communication
- USS, Modbus RTU
- Input voltage
- 380–480 V AC, 3-phase
- Rated output current
- 8.8 A at 400 V IEC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-5BE24-0UV0 is a SINAMICS V20 basic converter for a 380…480 V three-phase supply, rated 4 kW (5 hp) on the low-overload current IL of 8.8 A at 400 V and 8.24 A at 480 V (110 % for 60 s within 300 s), or 4 kW (5 hp) on the high-overload current IH, with a rated input current of 11.3 A. It is frame size FSB, has one cooling fan and has no integrated line filter. The V20 delivers 0…550 Hz output frequency at a pulse frequency of 2…16 kHz and offers four isolated digital inputs, two analog inputs that can also be used as digital inputs, a 0…20 mA analog output, a transistor output and a relay output. An integrated RS485 port supports USS and Modbus RTU, and the V20 is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-5BE24-0UV0 SINAMICS V20 AC Drive |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-5BE24-0UV0 |
| Category | Variable Frequency Drives |
| Frame size | FSB |
| Rated power | 4 kW |
| Communication | USS, Modbus RTU |
| Input voltage | 380–480 V AC, 3-phase |
| Rated output current | 8.8 A at 400 V IEC |
