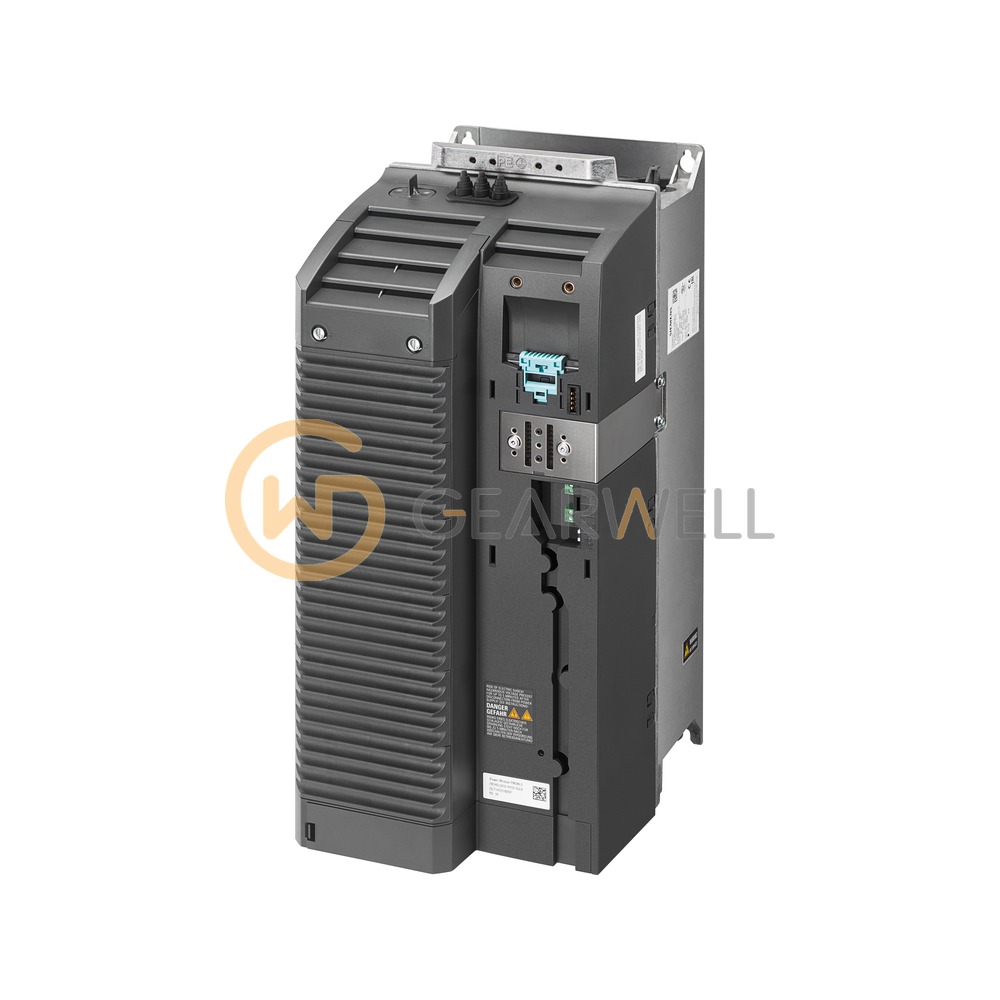

Siemens 6SL3210-1PH24-2UL0 SINAMICS G120 PM240-2 Power Module
- Brand
- Siemens
- Model
- 6SL3210-1PH24-2UL0
- GEARWELL SKU
- GWP-000009747
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- FSD
- Input voltage
- 500-690 V 3 AC, 47-63 Hz
- Braking chopper
- Built-in
- Power (low overload)
- 37 kW
- Power (high overload)
- 30 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Siemens 6SL3210-1PH24-2UL0 is a SINAMICS G120 PM240-2 Power Module, standard variant, for a 500…690 V three-phase supply. It is rated 37 kW (40 hp) on the rated output current IN of 42 A for low overload and 30 kW (30 hp) on the base-load current IH of 35 A for high overload, in frame size FSD without an integrated line filter. Combined with a SINAMICS G120 Control Unit it forms a converter with 0…550 Hz output frequency in V/f control or 0…240 Hz in vector control. For high overload Siemens allows 200 % of IH for 3 s plus 150 % for 57 s within a 300 s cycle, and the Power Module is efficiency class IE2 to IEC 61800-9-2.
Technical reference
| Product name | Siemens 6SL3210-1PH24-2UL0 SINAMICS G120 PM240-2 Power Module |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-1PH24-2UL0 |
| Category | Variable Frequency Drives |
| Frame size | FSD |
| Input voltage | 500-690 V 3 AC, 47-63 Hz |
| Braking chopper | Built-in |
| Power (low overload) | 37 kW |
| Power (high overload) | 30 kW |
| Degree of protection | IP20 |
