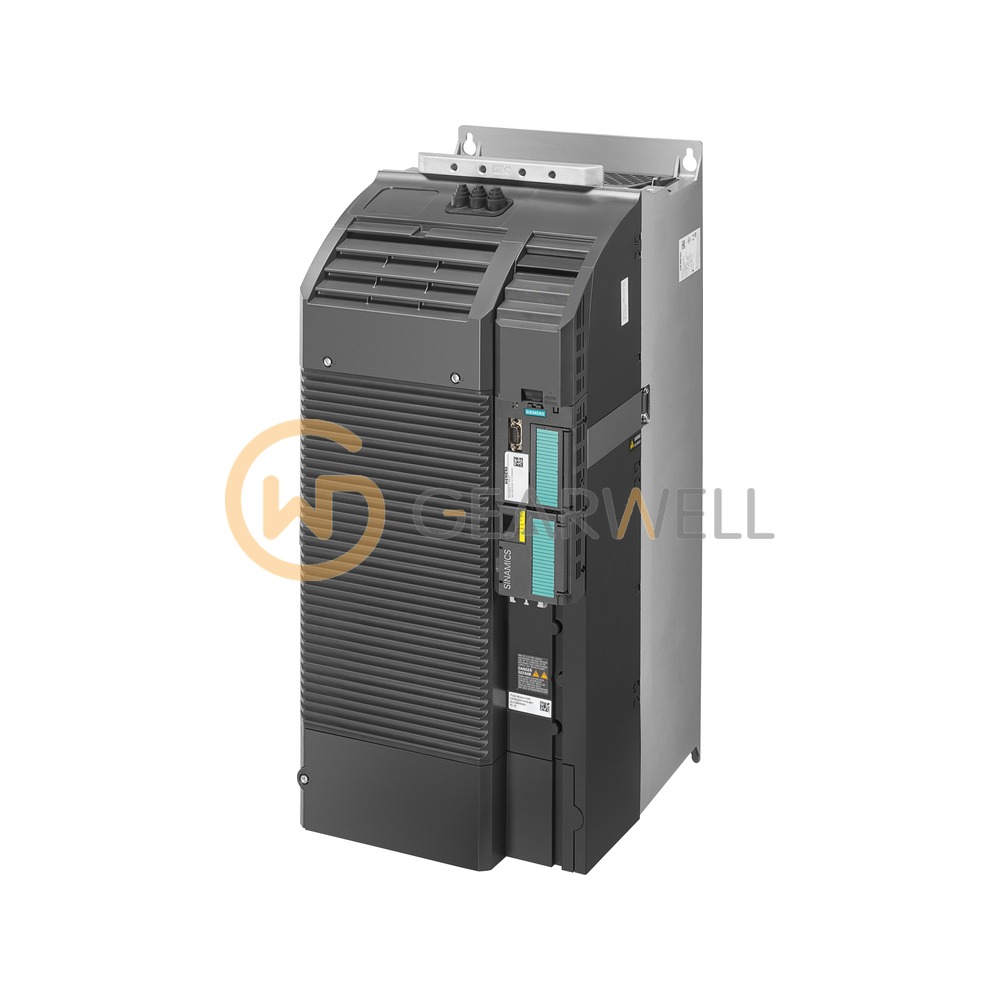

Siemens 6SL3210-1KE32-4AF1 SINAMICS G120C Compact Converter

Product overview

The Siemens 6SL3210-1KE32-4AF1 is a SINAMICS G120C compact converter for 380…480 V three-phase supply, rated 132 kW (150 hp) on a base-load current IL of 237 A for low overload and 201 A (IH) for high overload. It is frame size FSF, supplied with an integrated class A line filter, and has an integrated PROFINET and EtherNet/IP interface with two RJ45 ports, PROFIdrive, PROFIsafe and PROFIenergy. The built-in I/O comprises six isolated digital inputs (two of them usable as one fail-safe input for Safe Torque Off, SIL 2 to IEC 61508 and PL d to EN ISO 13849-1), one analog input for ±10 V or 0/4…20 mA, one analog output, one relay changeover contact, one transistor output, a motor temperature sensor input and a USB port. The converter is IP20 / UL Open Type for vertical wall mounting and runs at -20…+40 °C without derating; a BOP-2 or IOP-2 operator panel and a SINAMICS SD card are optional.
