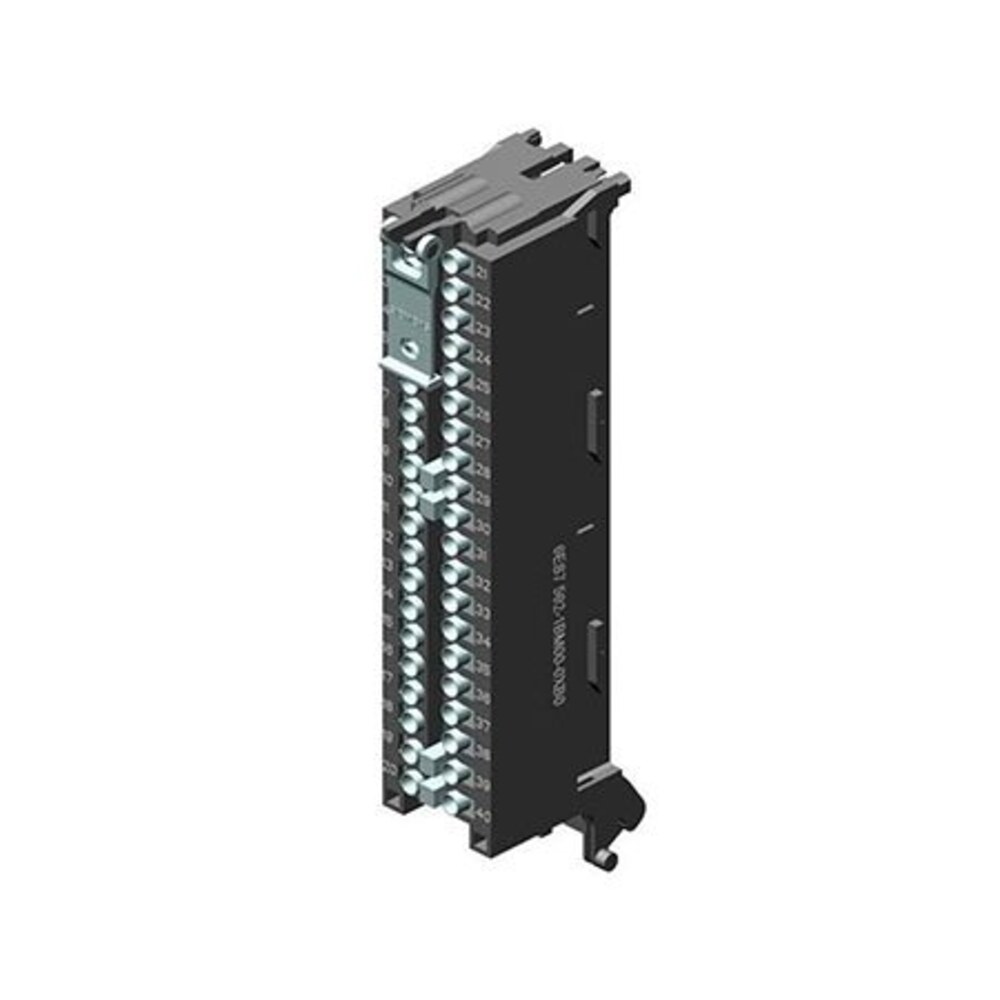

Siemens 6ES7592-1BM00-0XB0 S7-1500 40-Pole Push-In Front Connector

Key specifications

Dimensions (W × H × D): 29.8 × 130.5 × 46 mm (W × H × D).
Module fit: 40-pole front connector for compatible 35 mm-wide S7-1500 modules; manufacturer article includes 4 potential bridges and cable ties.
Flexible conductor cross-section: Flexible conductors: 0.25 to 1.5 mm², with or without end ferrules.
Dimensions — Depth: 46 mm
Wire stripping length: 8 to 11 mm.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7592-1BM00-0XB0 S7-1500 40-Pole Push-In Front Connector
Brand	Siemens
Model	6ES7592-1BM00-0XB0
Category	Industrial Automation Parts
Dimensions (W × H × D)	29.8 × 130.5 × 46 mm (W × H × D).
Module fit	40-pole front connector for compatible 35 mm-wide S7-1500 modules; manufacturer article includes 4 potential bridges and cable ties.
Flexible conductor cross-section	Flexible conductors: 0.25 to 1.5 mm², with or without end ferrules.
Dimensions — Depth	46 mm
Wire stripping length	8 to 11 mm.
Connection method	Push-in terminal
Product description	S7-1500 40-pole push-in front connector for 35 mm-wide modules, with four potential bridges and cable ties.
Weights — Weight, approx.	123 g
Conductors per terminal	1 conductor, or 2 conductors up to 1.5 mm² total in a shared ferrule.
