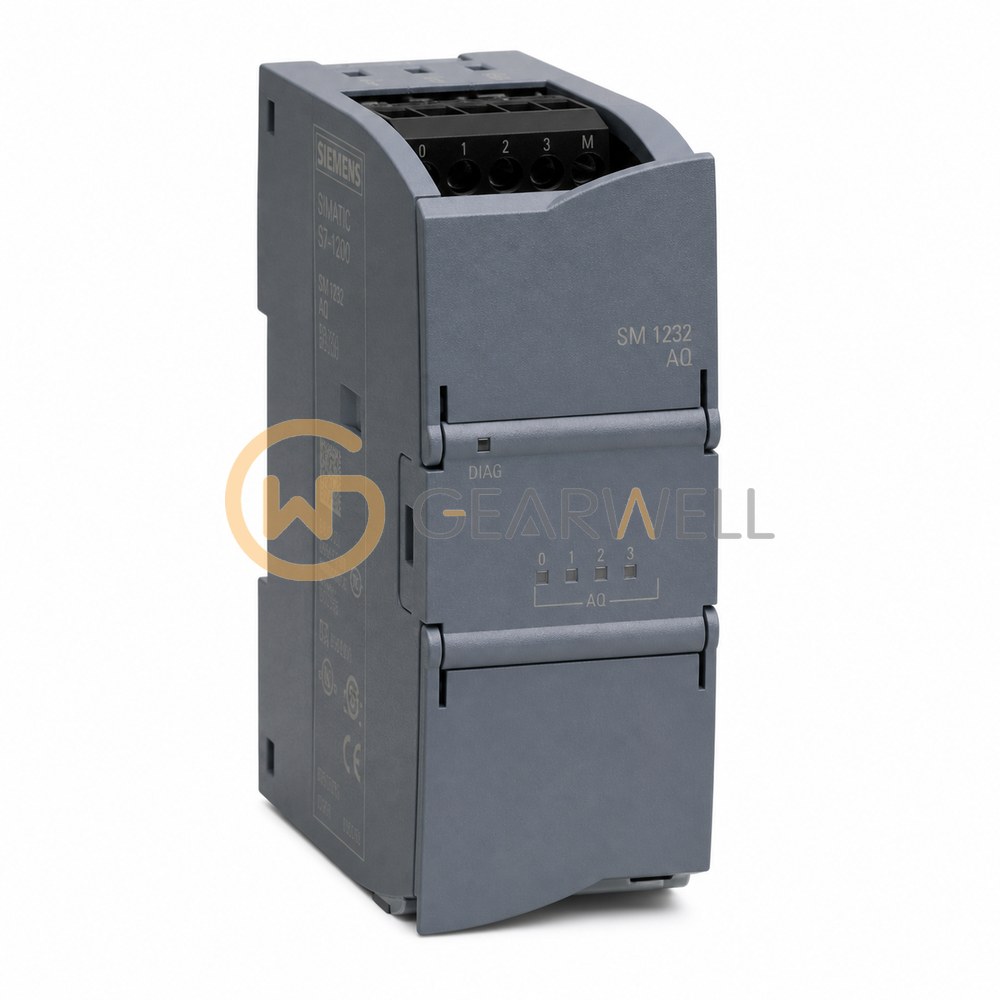

Siemens 6ES7232-4HB32-0XB0 S7-1200 SM 1232 2-Channel Analog Output Module

Key specifications

Dimensions (W × H × D): 45 × 100 × 75 mm (W × H × D)
Analog output resolution: 14 bits in voltage mode; 13 bits in current mode
Permitted output load: ≥1000 Ω in voltage mode; ≤600 Ω in current mode
Analog output ranges: ±10 V, 0–20 mA or 4–20 mA
Power loss — published values: 1.5 W typical in Siemens article data; TIA system manual lists 1.8 W. Published figures differ; typical is not a guaranteed maximum. Confirm thermal sizing against the device documentation.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7232-4HB32-0XB0 S7-1200 SM 1232 2-Channel Analog Output Module
Brand	Siemens
Model	6ES7232-4HB32-0XB0
Category	PLCs & I/O
Dimensions (W × H × D)	45 × 100 × 75 mm (W × H × D)
Analog output resolution	14 bits in voltage mode; 13 bits in current mode
Permitted output load	≥1000 Ω in voltage mode; ≤600 Ω in current mode
Analog output ranges	±10 V, 0–20 mA or 4–20 mA
Power loss — published values	1.5 W typical in Siemens article data; TIA system manual lists 1.8 W. Published figures differ; typical is not a guaranteed maximum. Confirm thermal sizing against the device documentation.
Dimensions — Depth	75 mm
Product description	SIMATIC S7-1200, Analog output, SM 1232, 2 AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA, 13-bit resolution
IP degree of protection	IP20
Number of analog outputs	2; Current or voltage
Product type designation	SM 1232, AQ 2x14 bit
Typical current consumption	45 mA from 24 V DC with no load; 80 mA from the 5 V DC backplane bus
Operating temperature limits	-20…60 °C horizontal; -20…50 °C vertical
