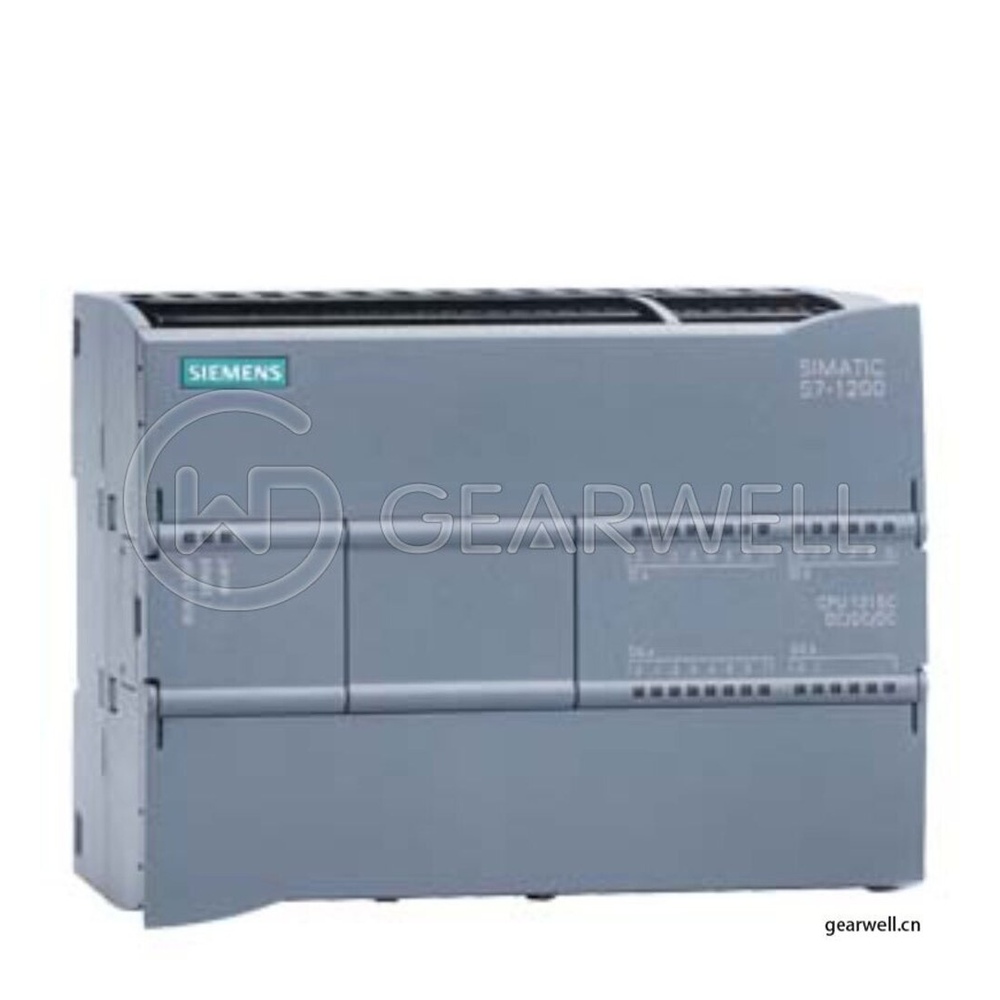

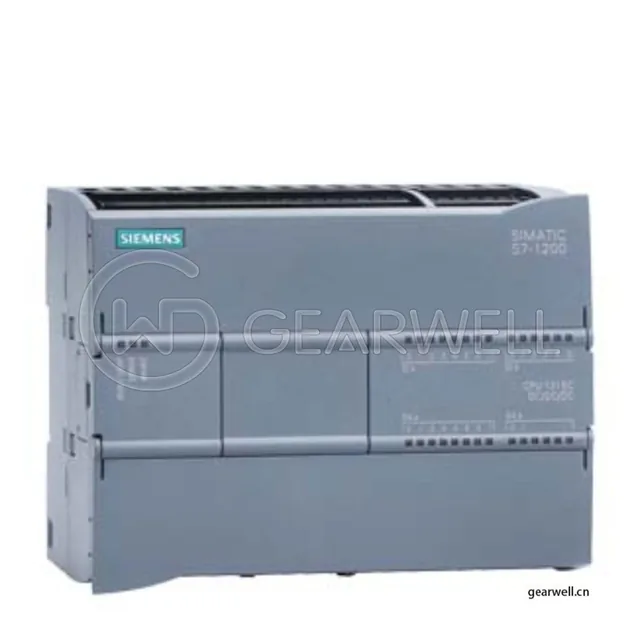

Siemens 6ES7215-1AG40-0XB0 S7-1200 CPU 1215C DC/DC/DC PLC

Key specifications

Built-in digital I/O: 14 × 24 V DC inputs; 10 × 24 V DC transistor outputs rated 0.5 A per output, subject to simultaneous-output temperature limits
Work memory: 200 KB for program and data
AS-Interface: Yes; CM 1243-2 required
Built-in analog outputs: 2 × 0–20 mA current outputs
Power loss, typ.: 12 W

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7215-1AG40-0XB0 S7-1200 CPU 1215C DC/DC/DC PLC
Brand	Siemens
Model	6ES7215-1AG40-0XB0
Category	Industrial Automation Parts
Built-in digital I/O	14 × 24 V DC inputs; 10 × 24 V DC transistor outputs rated 0.5 A per output, subject to simultaneous-output temperature limits
Work memory	200 KB for program and data
AS-Interface	Yes; CM 1243-2 required
Built-in analog outputs	2 × 0–20 mA current outputs
Power loss, typ.	12 W
CPU supply voltage	24 V DC nominal; 20.4–28.8 V DC permitted range
Product description	SIMATIC S7-1200, CPU 1215C, compact CPU, DC/DC/DC, 2 PROFINET ports, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 0.5 A; 2 AI 0-10 V DC, 2 AO 0-20 mA DC, power supply: DC 20.4-28.8 V DC, program/data memory 200 KB
PROFINET connection	1 PROFINET interface with 2 RJ45 ports and an integrated switch
IP degree of protection	IP20
Built-in analog inputs	2 × 0–10 V DC voltage inputs
Product type designation	CPU 1215C DC/DC/DC
Input current — Current consumption (rated value)	500 mA; CPU only
Operating temperature and digital I/O derating	-20…60 °C horizontal; -20…50 °C vertical. At 60/50 °C: 7 nonadjacent inputs and 5 nonadjacent outputs; all 14 inputs and 10 outputs at ≤55 °C horizontal or ≤45 °C vertical.
