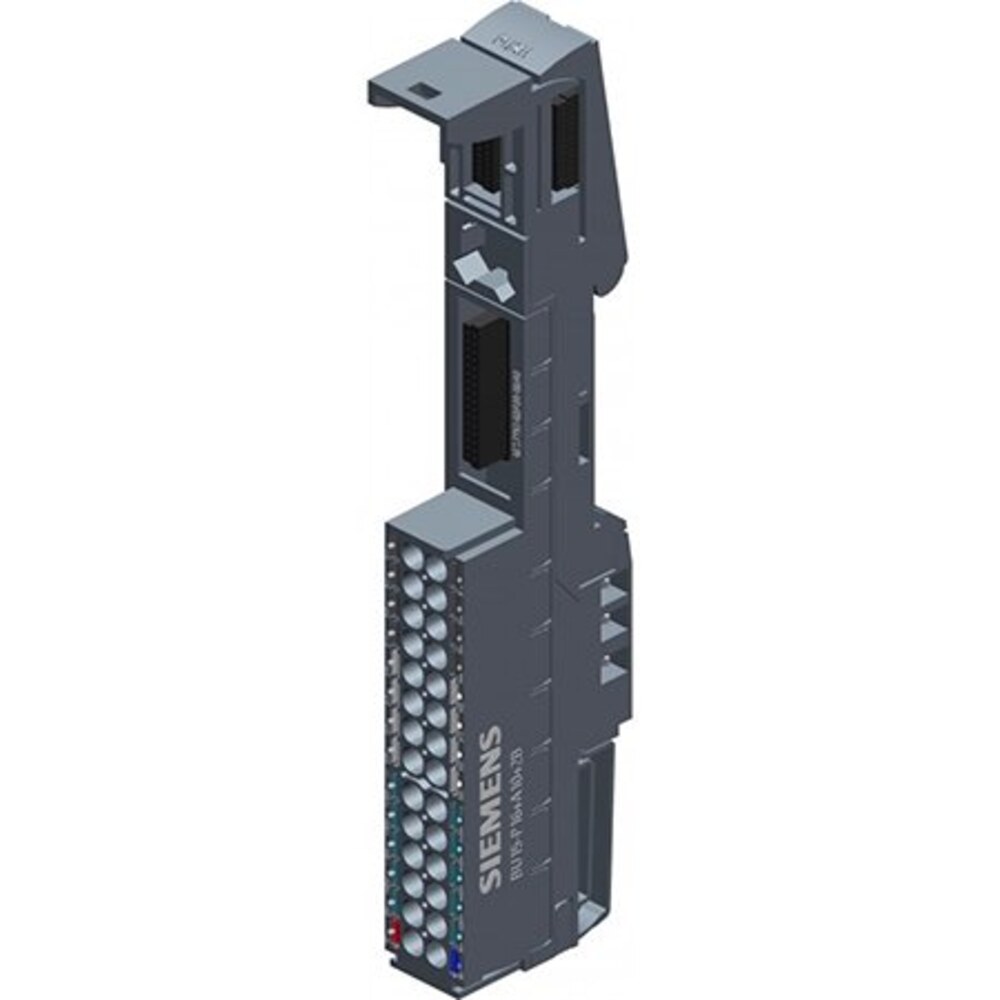

Siemens 6ES7193-6BP20-2BA0 ET 200SP A0 BaseUnit with 10 AUX Terminals

Key specifications

Dimensions (W × H × D): 15 × 141 × 35 mm (W × H × D).
Potential group: Potential group continued from the left; does not form a new potential group.
Dimensions — Depth: 35 mm
Supply and current limits: 24 V DC rated supply; 10 A maximum for P1/P2, 10 A maximum for AUX and 2 A maximum per process terminal. Supply lines require external 24 V DC / 10 A miniature circuit breaker protection with B or C tripping characteristic.
Product description: ET 200SP BU15-P16+A10+2B type A0 BaseUnit with 10 AUX terminals, bridged to the left.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7193-6BP20-2BA0 ET 200SP A0 BaseUnit with 10 AUX Terminals
Brand	Siemens
Model	6ES7193-6BP20-2BA0
Category	Industrial Automation Parts
Dimensions (W × H × D)	15 × 141 × 35 mm (W × H × D).
Potential group	Potential group continued from the left; does not form a new potential group.
Dimensions — Depth	35 mm
Supply and current limits	24 V DC rated supply; 10 A maximum for P1/P2, 10 A maximum for AUX and 2 A maximum per process terminal. Supply lines require external 24 V DC / 10 A miniature circuit breaker protection with B or C tripping characteristic.
Product description	ET 200SP BU15-P16+A10+2B type A0 BaseUnit with 10 AUX terminals, bridged to the left.
Manufacturer packing quantity	10 pieces per manufacturer packing unit; quotation quantity is confirmed separately.
Weights — Weight, approx.	50 g
Terminal configuration	Push-in wiring: 16 process terminals, 10 AUX terminals and 2 connections to the P1/P2 bus.
Product type designation	BU type A0
Maximum operating temperature by orientation	60 °C horizontal; 50 °C vertical.
