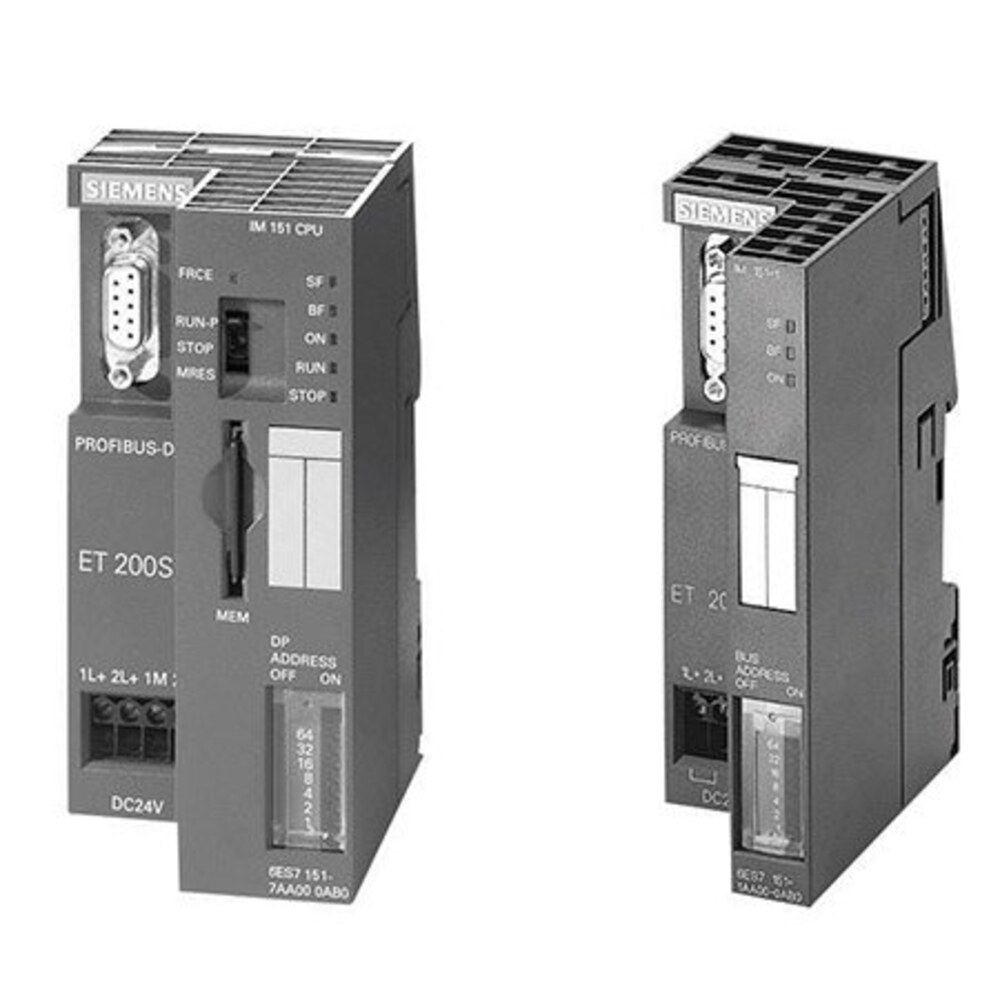

Siemens 6ES7151-1AA06-0AB0 ET 200S IM 151-1 Standard PROFIBUS Interface Module

Key specifications

Electronics supply current: 200 mA maximum from supply voltage 1L+, according to the current catalogue.
Power loss, typ.: 3.3 W
Electronics supply voltage: 24 V DC nominal, supplied at 1L+.
Station module capacity: Up to 63 ET 200S modules over a maximum 2 m backplane bus; for each 2DO AC24..230V electronic module, reduce the allowed module count by one.
Dimensions — Depth: 75 mm

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7151-1AA06-0AB0 ET 200S IM 151-1 Standard PROFIBUS Interface Module
Brand	Siemens
Model	6ES7151-1AA06-0AB0
Category	Industrial Automation Parts
Electronics supply current	200 mA maximum from supply voltage 1L+, according to the current catalogue.
Power loss, typ.	3.3 W
Electronics supply voltage	24 V DC nominal, supplied at 1L+.
Station module capacity	Up to 63 ET 200S modules over a maximum 2 m backplane bus; for each 2DO AC24..230V electronic module, reduce the allowed module count by one.
Dimensions — Depth	75 mm
Station I/O address space	244 bytes for input data and 244 bytes for output data.
PROFIBUS interface	PROFIBUS DPV0 and DPV1 over RS485; up to 12 Mbit/s through a 9-pin D-sub socket.
Product type and application	IM 151-1 Standard interface connecting ET 200S distributed I/O to PROFIBUS DP.
Weights — Weight, approx.	150 g
Design of the connection	9-pin sub D socket
Product type designation	IM 151-1 ST
Operating temperature limit	60 °C catalogue maximum; vertical installation 0–55 °C in manual A5E01075950-AD. Apply the mounting-specific limits.
