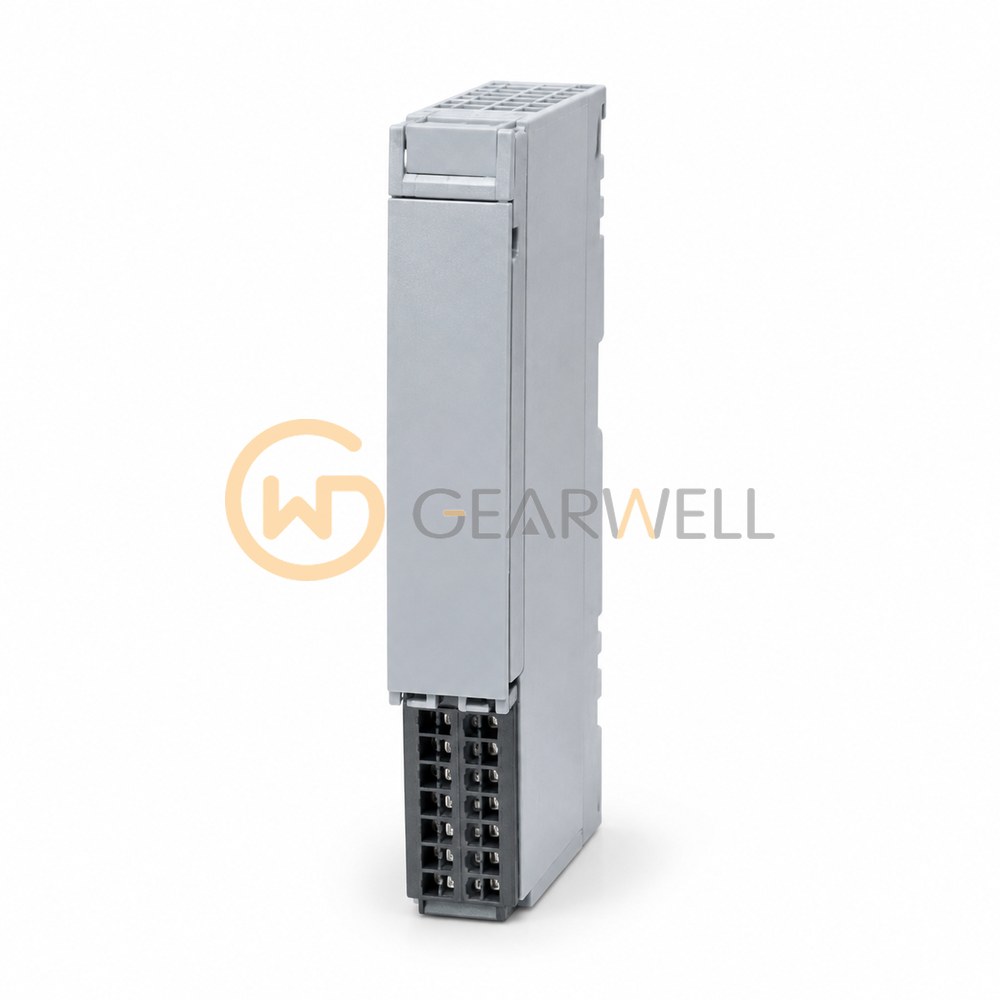

Siemens 6ES7137-6AA01-0BA0 ET 200SP CM PtP Serial Module
- Brand
- Siemens
- Model
- 6ES7137-6AA01-0BA0
- GEARWELL SKU
- GWP-000004187
- Category
- Industrial Automation Parts
Key specifications
- Compatible BaseUnit
- BU type A0
- Protocols
- Freeport, 3964(R), USS and Modbus RTU master/device
- Power loss, typ.
- 0.7 W
- Supply voltage
- 24 V DC rated; permissible range 19.2–28.8 V DC
- Dimensions — Depth
- 58 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7137-6AA01-0BA0 ET 200SP CM PtP Serial Module |
|---|---|
| Brand | Siemens |
| Model | 6ES7137-6AA01-0BA0 |
| Category | Industrial Automation Parts |
| Compatible BaseUnit | BU type A0 |
| Protocols | Freeport, 3964(R), USS and Modbus RTU master/device |
| Power loss, typ. | 0.7 W |
| Supply voltage | 24 V DC rated; permissible range 19.2–28.8 V DC |
| Dimensions — Depth | 58 mm |
| Serial interfaces | RS-232, RS-422 and RS-485 |
| Maximum transmission rates | RS-485: up to 250 kbit/s; RS-232 and RS-422: up to 115.2 kbit/s |
| Product description | SIMATIC ET 200SP CM PtP serial communication module; RS-232/422/485; Freeport, 3964(R), USS and Modbus RTU; RS-485 up to 250 kbit/s, RS-232/422 up to 115.2 kbit/s; BU type A0 |
| Weights — Weight, approx. | 30 g |
| Design of the connection | Push-in terminal |
| Product type designation | CM PtP |
| Input current — Current consumption (rated value) | 31 mA |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
